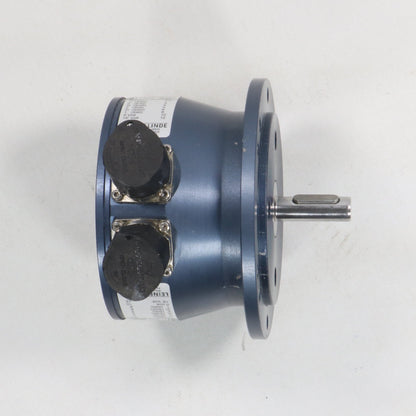

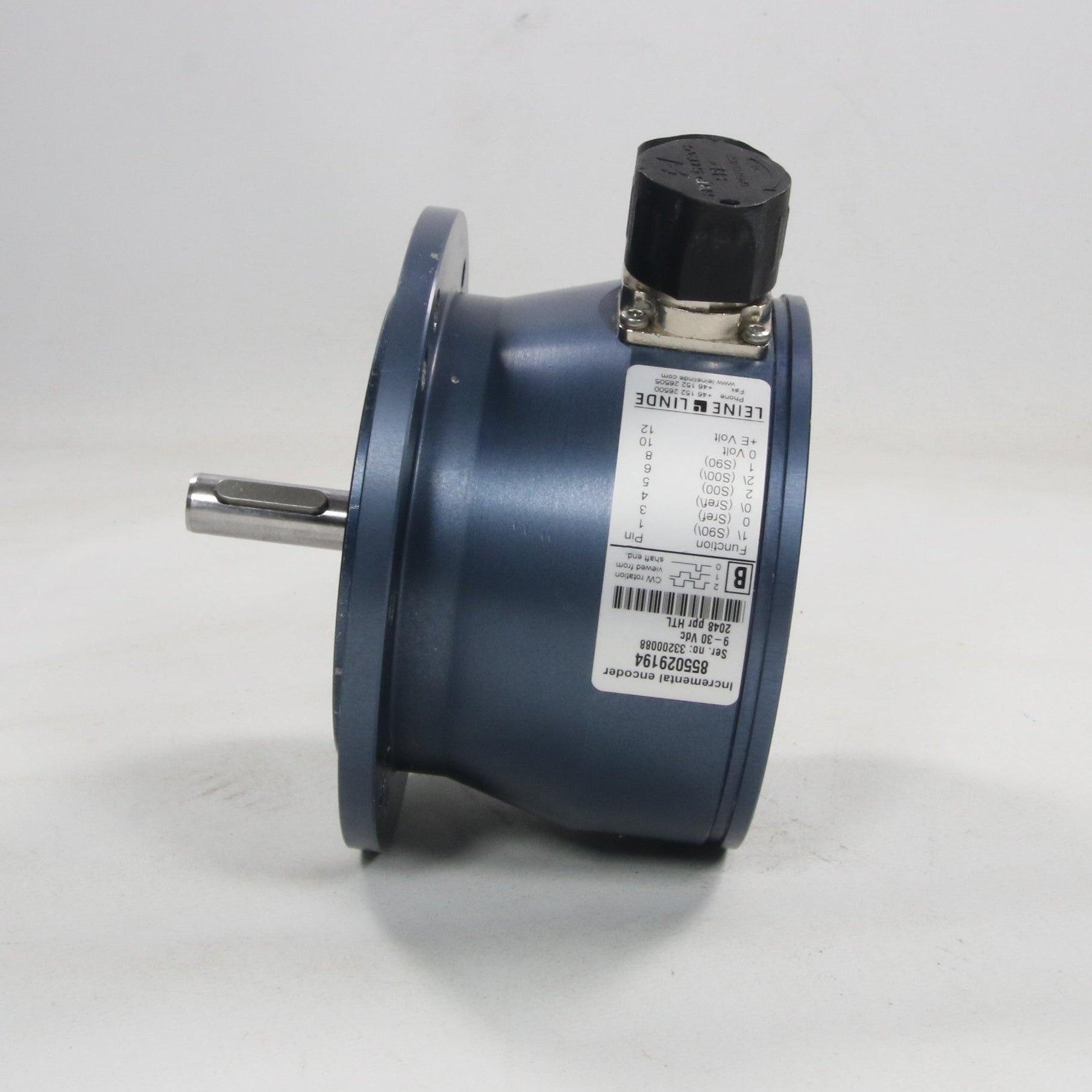

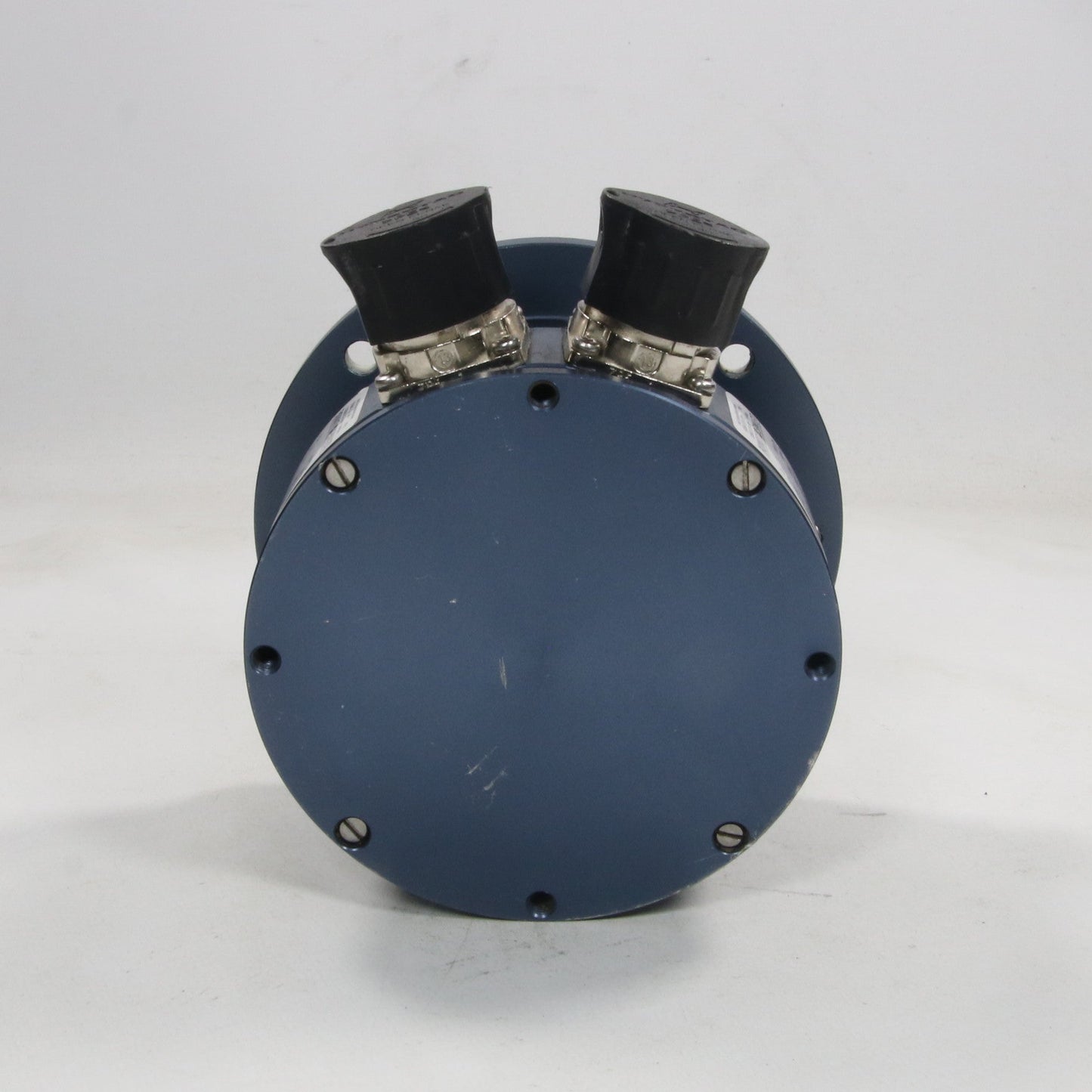

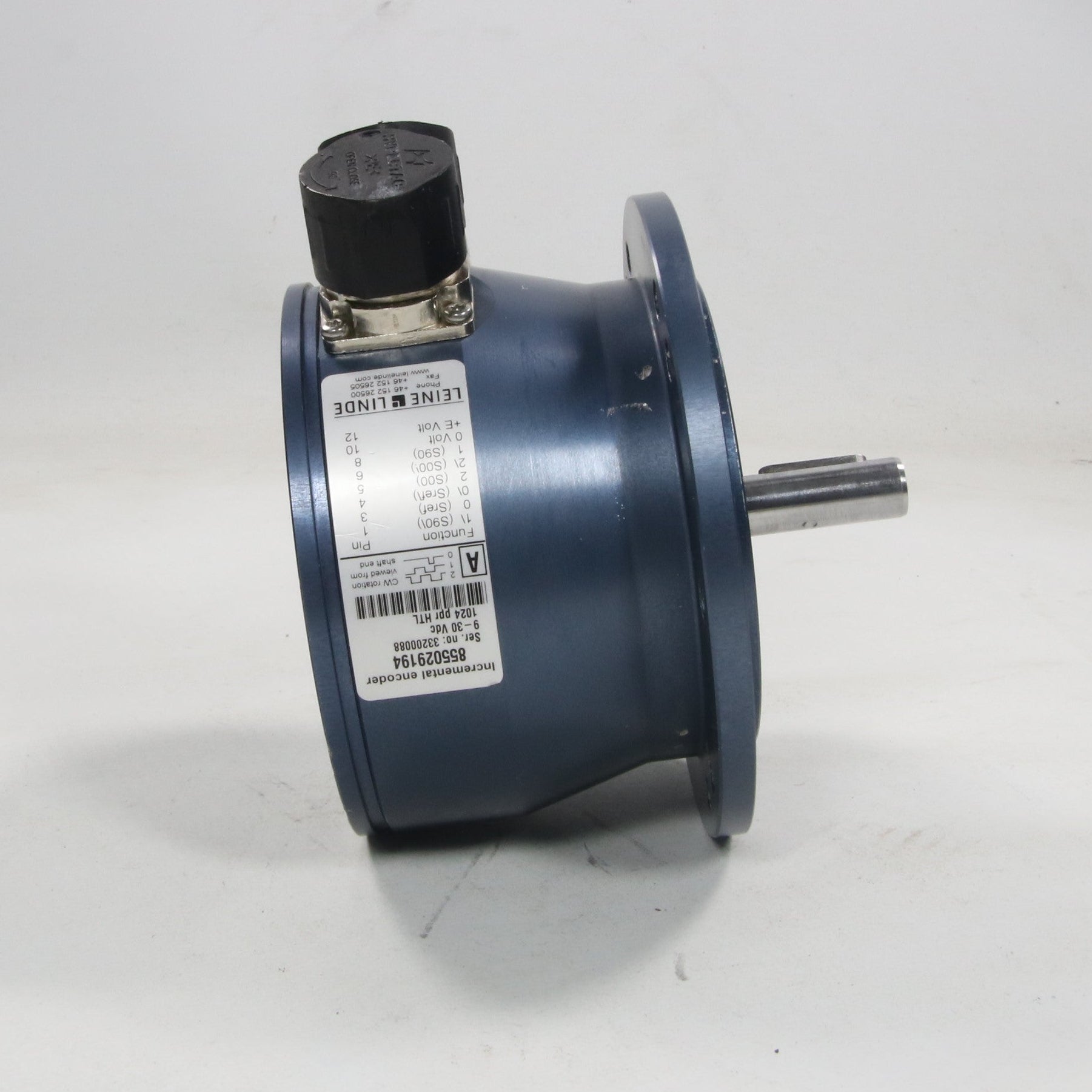

Leine & Linde 855029194 Heavy Duty Incremental Rotary Encoder

- Brand: Leine & Linde (Leine & Linde AB, part of HEIDENHAIN Group)

- Model: 855029194

- Type: Heavy Duty Incremental Rotary Encoder

- Part number: 855029194

- Technical specifications:
- Sensing method: Optical

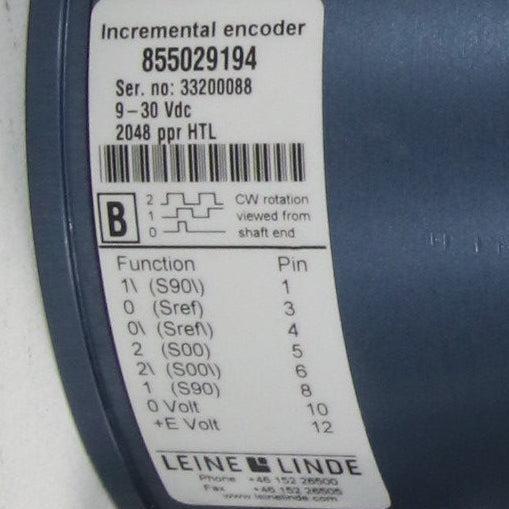

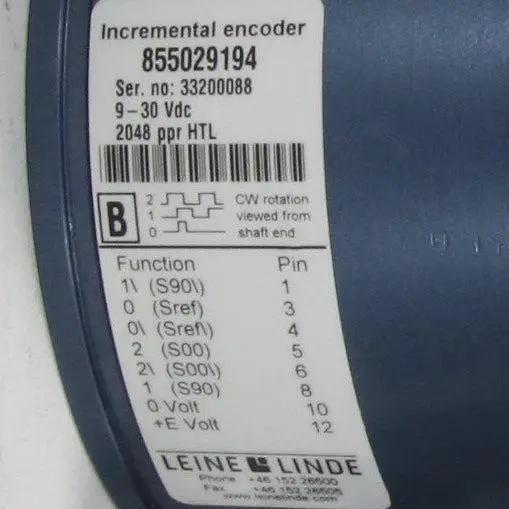

- Pulses per revolution (PPR): 2048
- Output signals: HTL (push-pull)
- Reference signal: Zero pulse (Z track)
- Voltage supply: 9–30 V DC
- Consumption w/o load: ≤100 mA
- Max. output frequency: Up to 120 kHz
- Max. speed: Up to 6000–12000 rpm

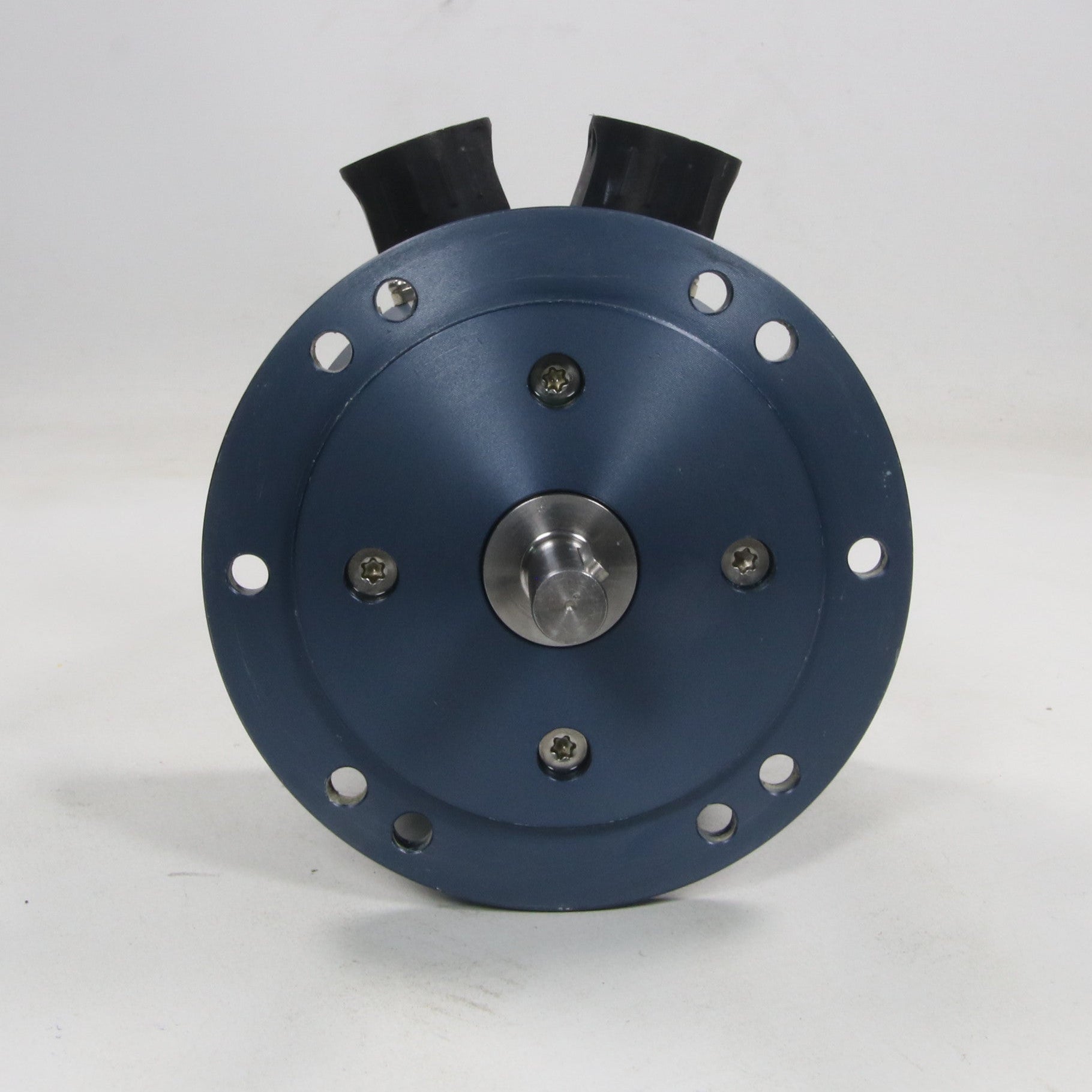

- Shaft: Solid shaft - Ø11 mm with keyway; EURO flange B10 compatible
- Flange / Housing: Robust housing with dual heavy-duty bearings
- Shock resistance: Up to 500 g / 1 ms (EN 60068-2-27)
- Vibration resistance: Up to 300 m/s² / 10–2000 Hz (EN 60068-2-6)
- Shaft load: Axial/radial up to 300–400 N
- Protection rating: IP66
- Operating temperature: -40°C to +100°C
- Additional features: Extremely robust and maintenance-free; dual bearings with long-term lubrication; optional advanced diagnostics; high EMC immunity; suitable for extreme industrial conditions; cost-effective heavy-duty choice
- Standards: Compliant with IEC/EN for industrial encoders; CE marked

Weight: 1.3 kg

Dimensions: Flange diameter: 115 mm; overall housing 130 mm diameter x 115 mm

Country of origin: Sweden

HS code: 9031.80
