Leonard Engineering GmbH

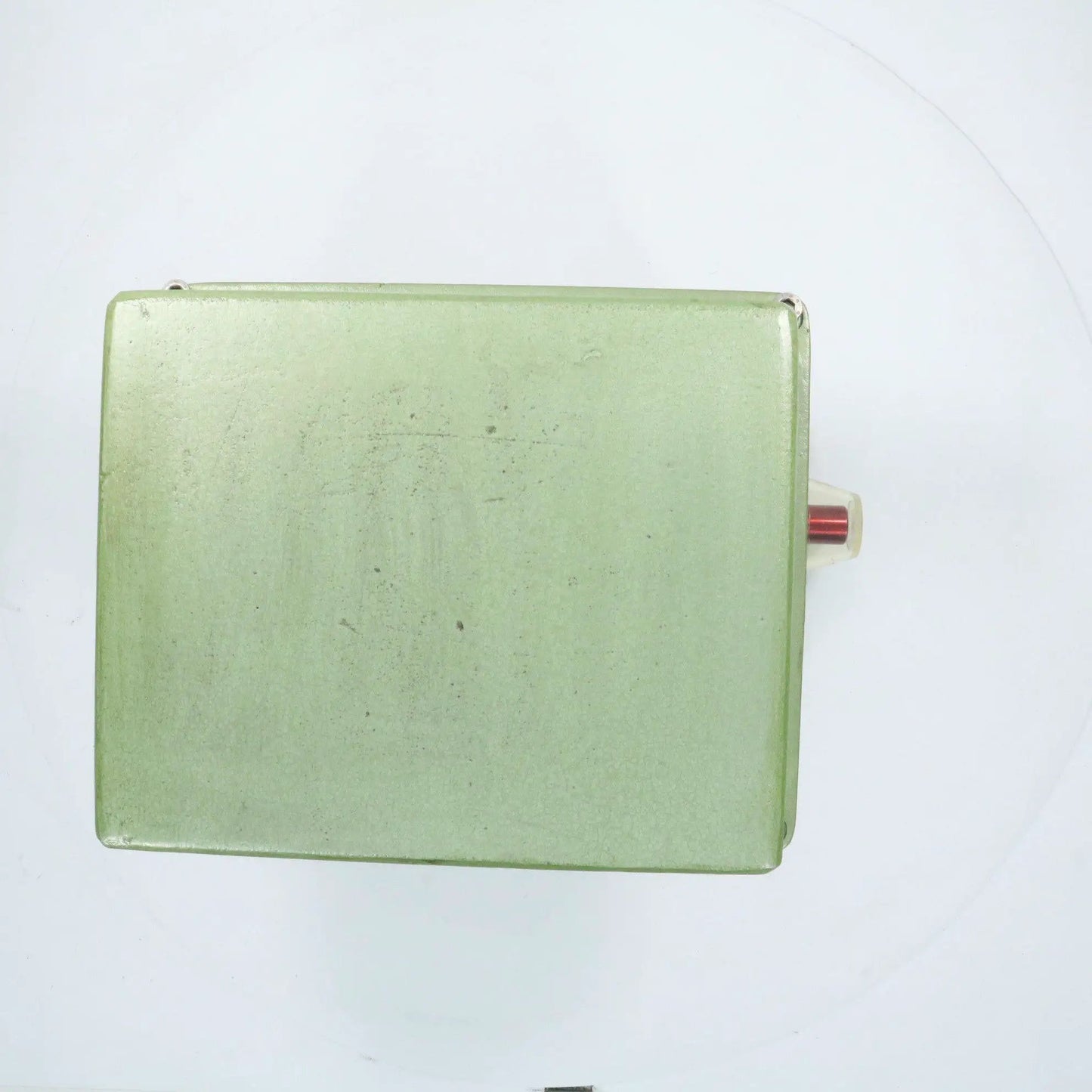

Leonard SW100-04 MNS Rotary Cam Switch

Leonard SW100-04 MNS Rotary Cam Switch

€1.548,80incl. VAT
€1.280,00 excl. VAT

Stock: 3
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
Leonard SW100-04 MNS Rotary Cam Switch Specifications
Product TypeRotary Cam Switch
ManufacturerLeonard Engineering GmbH
ModelSW100-04 MNS
Number of Switching Elements4
Housing MaterialCast aluminum, painted in RAL6011
Switching Element TypeMechanical
Rated Current10 A
Rated Voltage250 V AC
Gearbox RatioOptional, typically 8:1
Cam Shaft DesignSpindle extends on both sides for coupling multiple switches
Cam Disk Set
Cam rings180° (standard); optional 15°, 30°, 45°, or 90° for force separation
MaterialDie-cast aluminum, hard-coated for corrosion resistance
Diameter100 mm
Scale360° with 2° graduation for precise switching angle resolution
Switching Element Actuator
ComponentsBracket, contact holder, roller lever, roller, return spring, adjusting screw, self-locking nut, compression spring, contact strip
Roller MaterialWear-resistant, self-lubricating plastic
MountingBase-mounted with 4 M8 screws
Dimensions
Height105 mm
Width124 mm
Depth114 mm
Length184 mm
Weight4.0 kg
Cable EntriesM32
IP Degree of ProtectionIP65
Cam Shaft BearingsDeep groove ball bearings, maintenance-free
Clamping MechanismOptional additional clamping device for presses to prevent unintended adjustment
Surface ProtectionHard-coated cam rings and graduated disks for maximum corrosion resistance and seawater/chemical durability
Switching Angle ResolutionHigh precision with switch-on and switch-off point index marks
Mechanical DurabilityHigh, due to low inertia forces and wear-resistant materials (exact cycles not specified)

Ambient Air Temperature for Operation: -25 to 70 °C (

Ambient Air Temperature for Storage: -40 to 85 °C

Standards ComplianceConforms to international standards (e.g., IEC, exact standards not specified; confirm with supplier)
HS Code8536.50.80
Country of OriginGermany
