Leuze Lumiflex

Leuze Lumiflex MSI-m/R AOPD Safety Relay Interface Module - 549904

Leuze Lumiflex MSI-m/R AOPD Safety Relay Interface Module - 549904

€187,55incl. VAT
€155,00 excl. VAT

Stock: 3
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandLeuze Lumiflex
ModelMSI-m/R Series
TypeSafety Relay Interface Module for Active Optoelectronic Protective Devices (AOPD)
Part Number549904
Technical Specs
Core ApplicationEvaluation unit designed to evaluate switching signals from Type 4 / Type 2 safety light curtains, light grids, or safety switches (AOPD) and safely disconnect machinery circuits upon light beam interruption or fault condition.
Safety Level / Performance Rating

Type 4 conforming to IEC/EN 61496-1

Performance Level (PL)Up to PL e conforming to ISO 13849-1
Safety Integrity Level (SIL)Up to SIL 3 conforming to IEC 62061
CategoryUp to Cat. 4 conforming to EN 954-1 / ISO 13849-1
Safety Inputs

Dual-channel AOPD / light curtain PNP input lines

1x Feedback loop input (EDM) for monitoring external power contactors

Safety Relay Outputs

2x NO (Normally Open) force-guided safety relay switching outputs (volt-free contacts)

Switching Capacity (Relay Contacts): Max. 250 V AC / 24 V DC, 6.0 A resistive load

Auxiliary Diagnostic Outputs

1x NC (Normally Closed) auxiliary signaling contact (not for safety functions)

Supply Voltage (A1/A2)24 V DC (±15%)
Current / Power ConsumptionMax. 3.0 W / 120 mA
Response Time≤ 20 ms

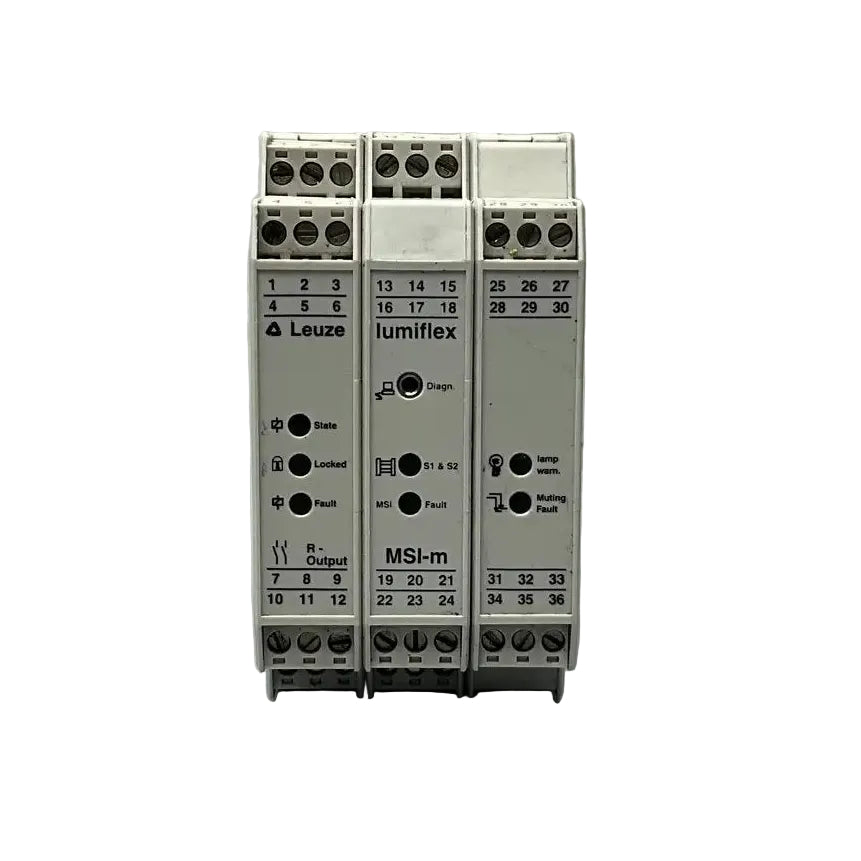

Diagnostics & Status Indicators: Front-mounted LED array indicating Power (supply state), Channel 1/Channel 2 status, Fault/Error state, and Interlock status.

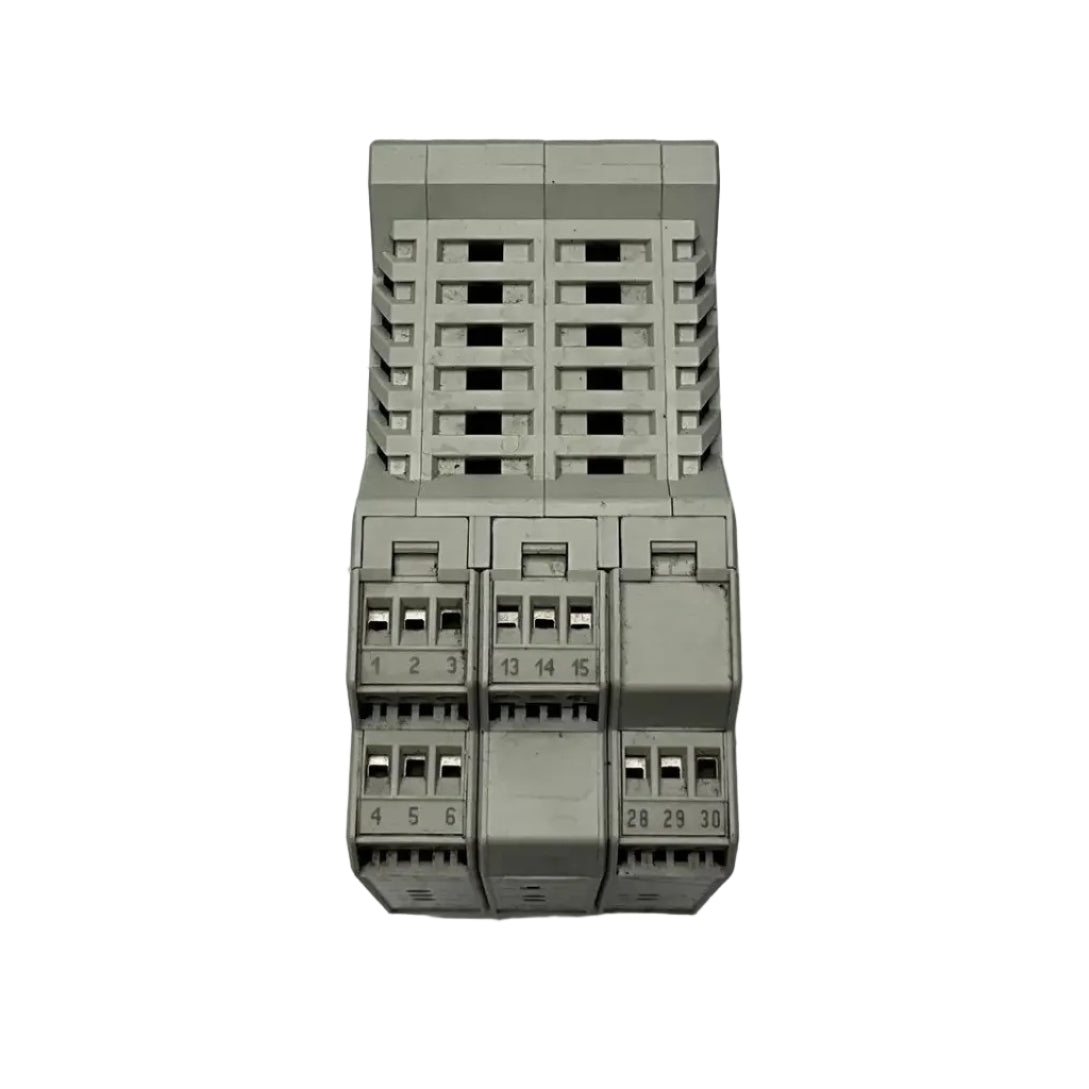

Electrical TerminalsScrew-type pluggable terminal block connections
Housing EnclosurePolyamide / Thermoplastic enclosure for DIN-rail mounting
Protection RatingIP20
Operating Temperature Range0°C to +55°C
Weight320 g
Dimensions52 x 99 x 114 mm
Country of OriginGermany
HS Code8537.10.98
