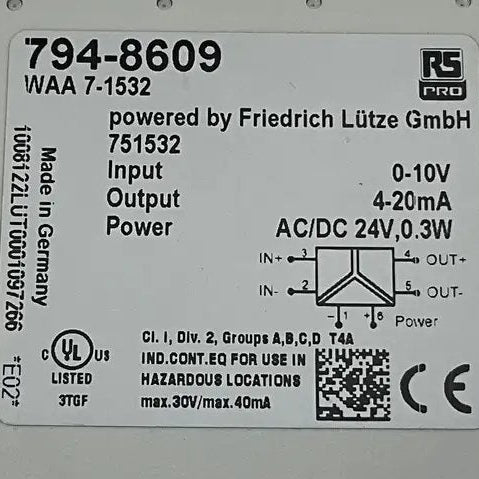

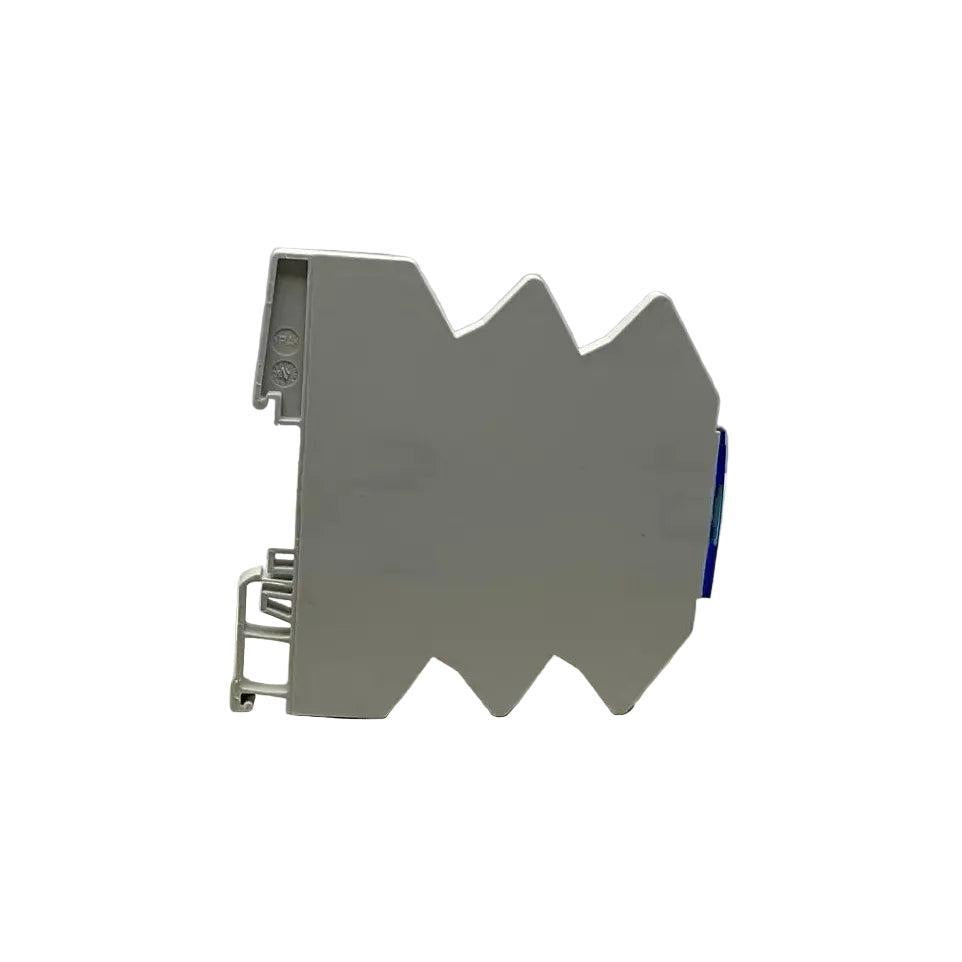

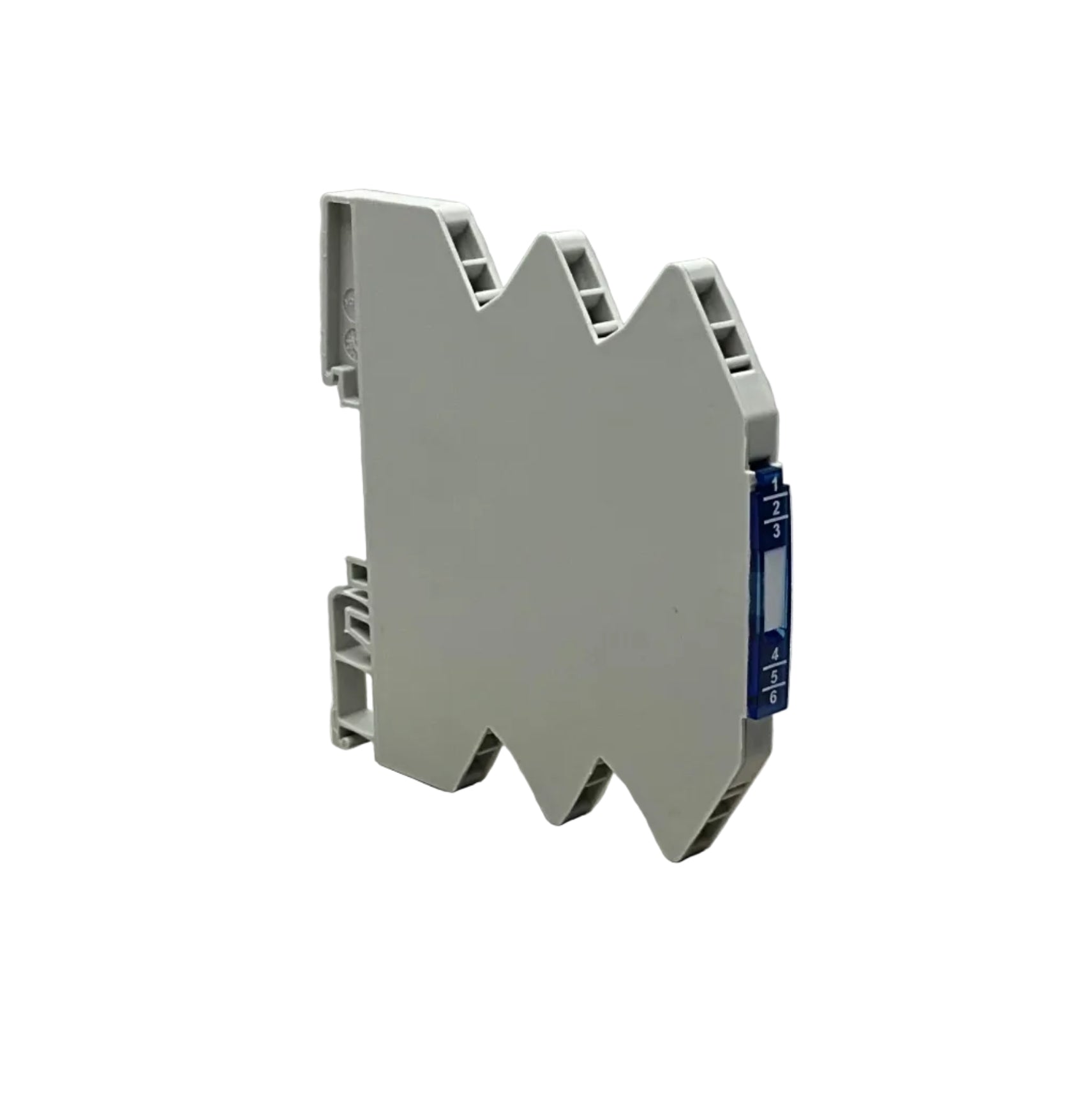

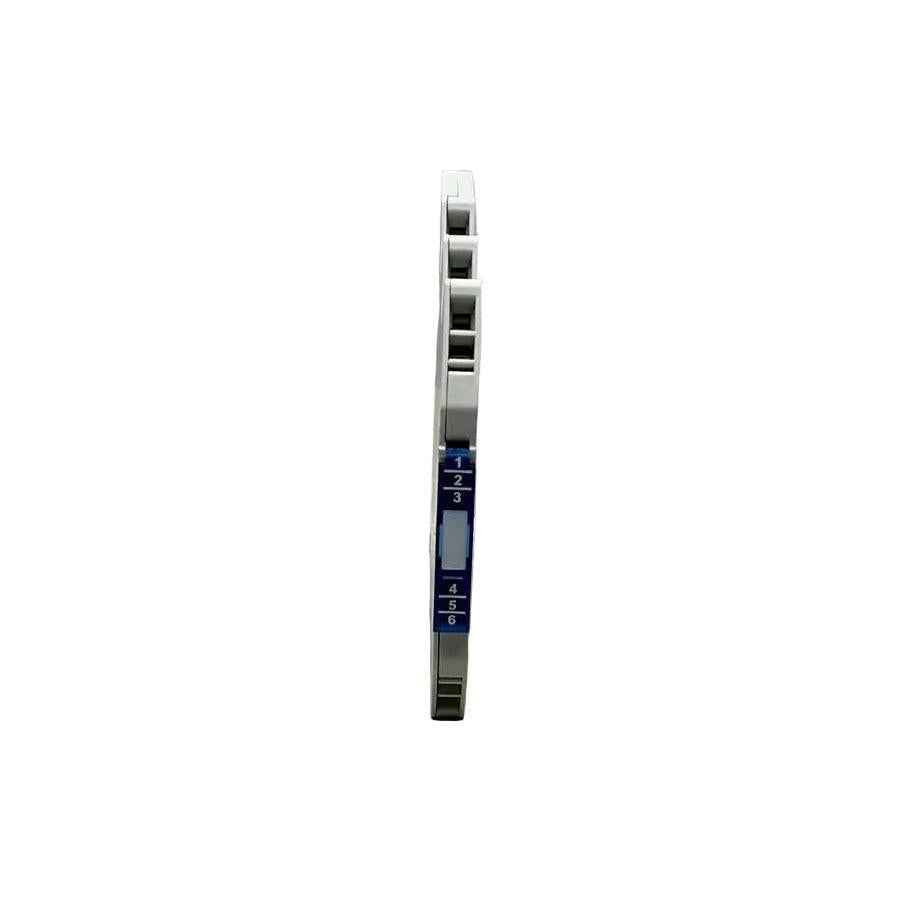

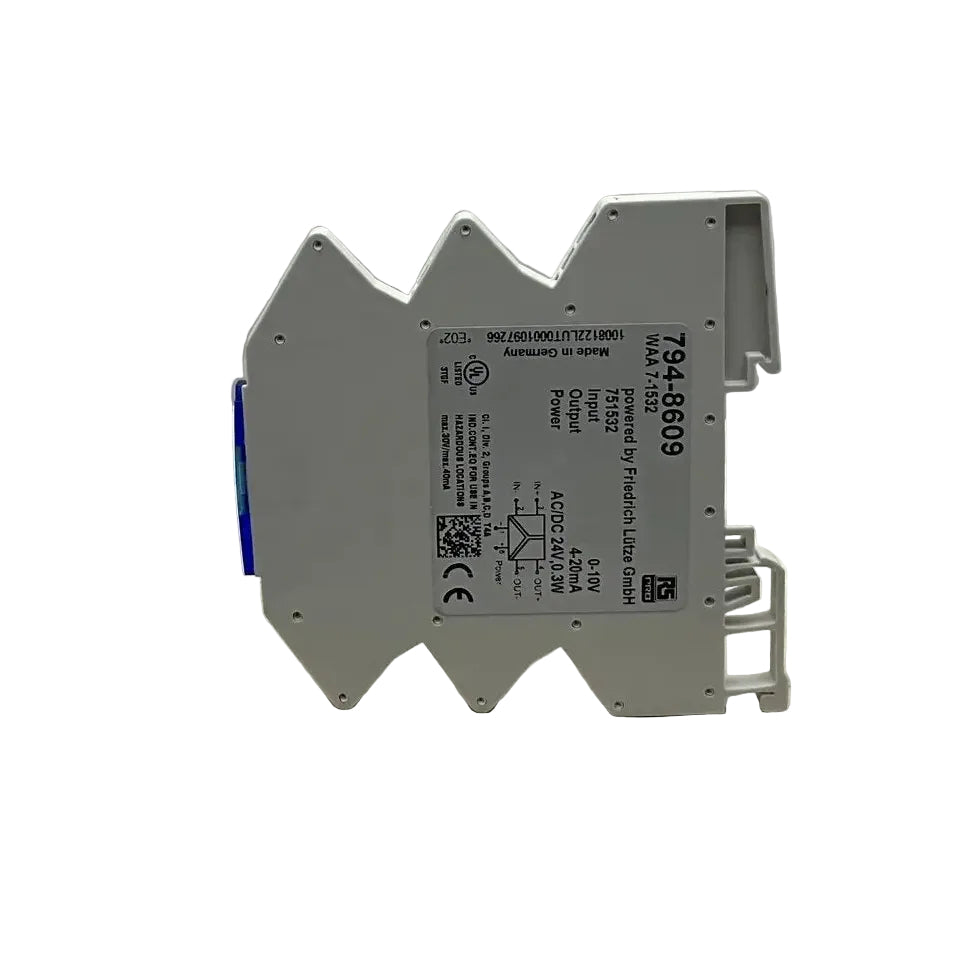

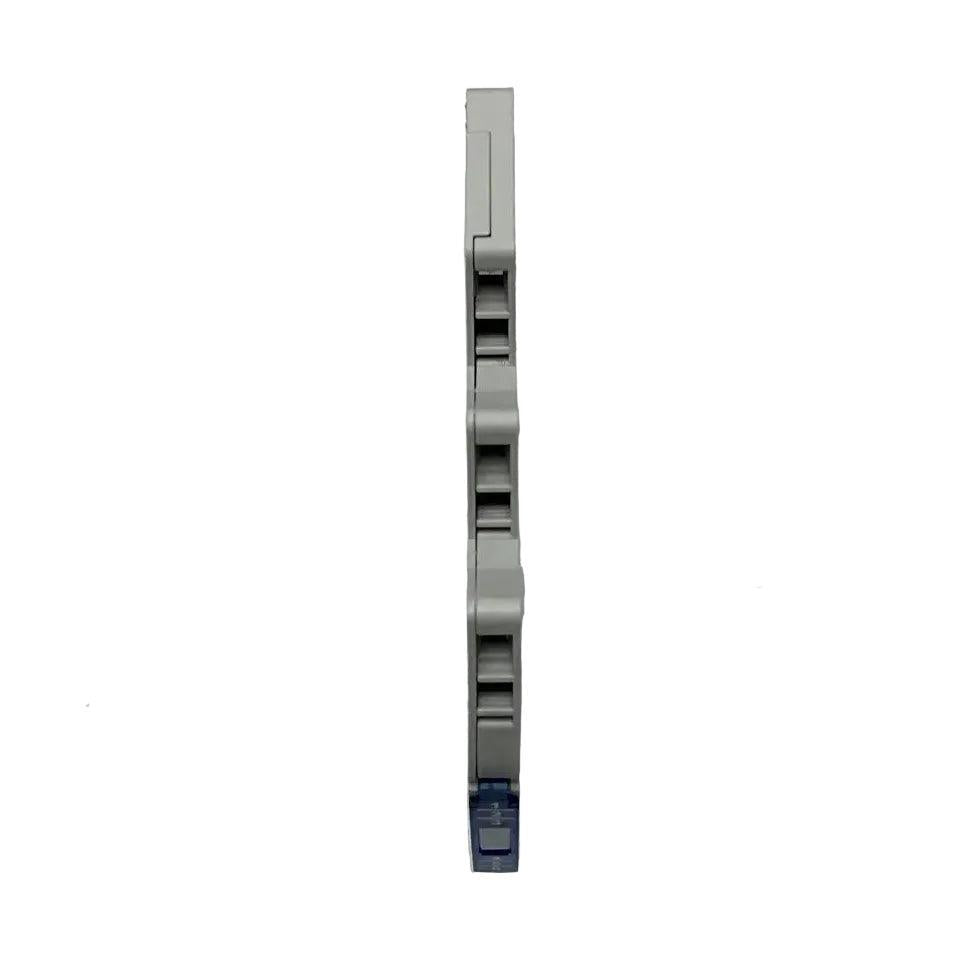

Lutze WAA7-1532 Analog Signal Converter

Brand: LÜTZE (marketed by RS Pro)

Model: WAA 7-1532

Type: Analog Converter / Signal Conditioner / Analog-to-Analog Converter

Part Number: 751532 / WAA 7-1532

Technical Specifications:

Microcompact analog signal converter

Converts voltage input to isolated current output

Input signal: 0–10 VDC

Output signal: 4–20 mA

3-way galvanic isolation (input/output/power supply)

Isolation voltage: 1.5 kV AC (WAA series), Up to 2.5 kV AC on newer LCIS versions

Accuracy: 0.1% FSR at 23°C

Linearity error: 0.05–0.1% FSR

Response time: 6–10 ms

Transmission frequency: 30 Hz (-3 dB)

Maximum output current: 21 mA

Maximum load impedance: 400–500 Ω

Input resistance: 330 kΩ

Ripple: <5 mVeff

Supply voltage: 16.8–30 VDC, 19.2–28.8 VAC

Rated supply: 24 VAC/DC

Power indication: Yellow LED

Output protection: Short-circuit protected

Input protection: Overvoltage protection up to 30 V AC/DC

Connection type: Spring-clamp / Push-in terminals

Mounting: DIN rail (EN 60715)

Protection class: IP20

Operating temperature: -25°C to +60°C

Storage temperature: -40°C to +85°C

Approvals: cULus, UL Listed, CSA, GL

Weight: 40 g

Dimensions: 6.2 × 90 × 92.5 mm

Country of Origin: Germany

HS Code: 8543.70
