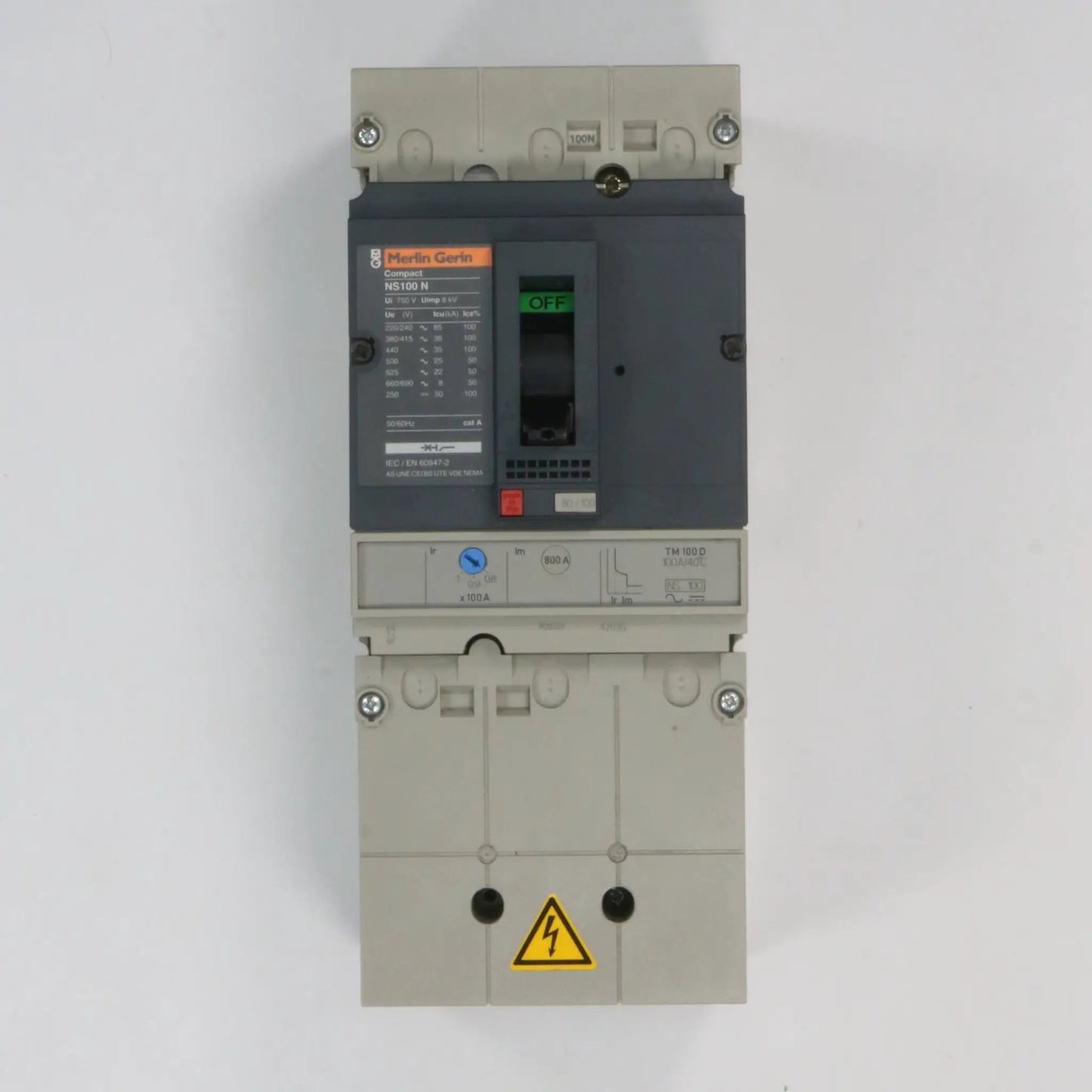

Merlin Gerlin Circuit Breaker Compact NS100N TM100D
Merlin Gerlin Circuit Breaker Compact NS100N TM100D
Stock: 22
Couldn't load pickup availability
Product description & specifications
Long-time overload protection (thermal)
Instantaneous short-circuit protection (magnetic)
Rated Impulse Withstand Voltage (Uimp): 8 kV (IEC 60947-2)
85 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
20 kA at 440 V AC 50/60 Hz (IEC 60947-2)
15 kA at 500/525 V AC 50/60 Hz (IEC 60947-2)
8 kA at 660/690 V AC 50/60 Hz (IEC 60947-2)
35 kA at 480 V AC 50/60 Hz (UL 508, per some sources)
85 kA at 220/240 V AC 50/60 Hz
25 kA at 380/415 V AC 50/60 Hz
20 kA at 440 V AC 50/60 Hz
15 kA at 500/525 V AC 50/60 Hz
8 kA at 660/690 V AC 50/60 Hz
Long-Time Pick-Up Adjustment Type (Ir): Adjustable (thermal)
Long-Time Pick-Up Adjustment Range: 0.8–1 x In (80–100 A)
Instantaneous Pick-Up Adjustment Type (Im): Fixed (magnetic)
Instantaneous Pick-Up Adjustment Range: 800 A
50,000 cycles at 440 V In/2
25,000 cycles at 440 V In
10,000 cycles at 690 V In
Electrical Shock Protection Class: Class II (front face)
Ambient Air Temperature for Operation: -25 to 70 °C
Ambient Air Temperature for Storage: -50 to 85 °C
