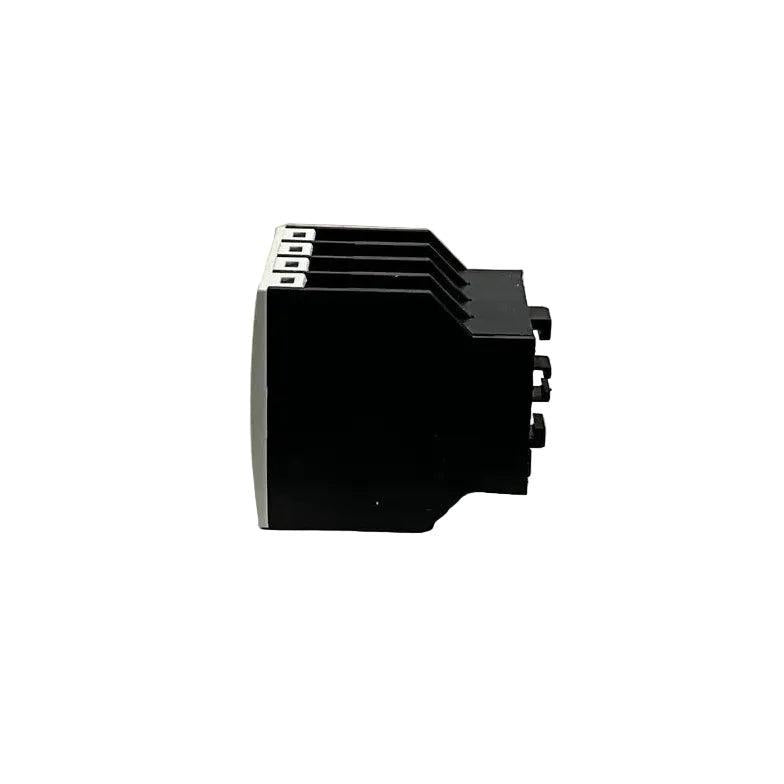

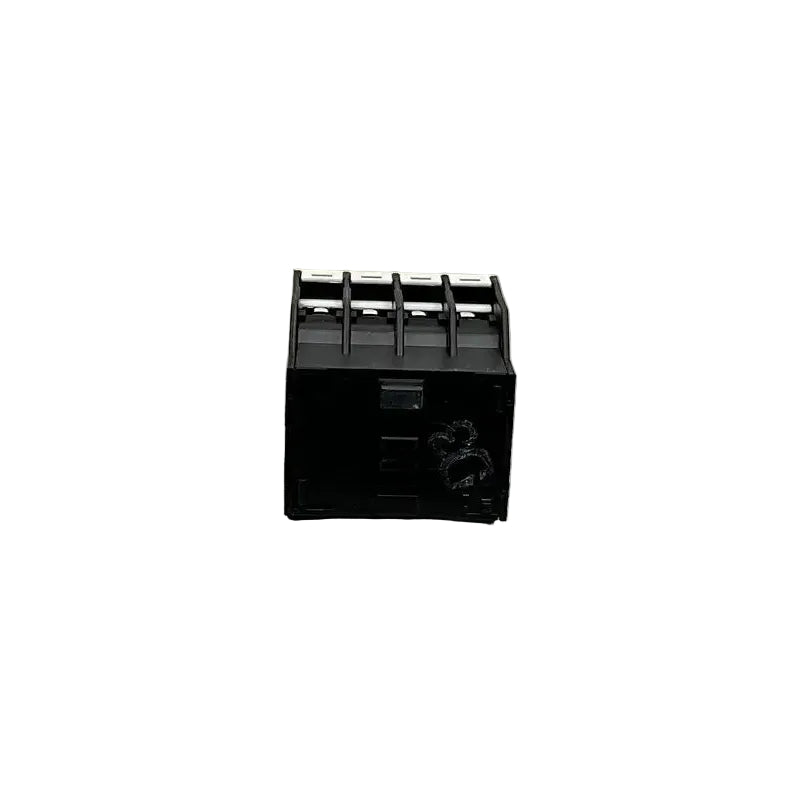

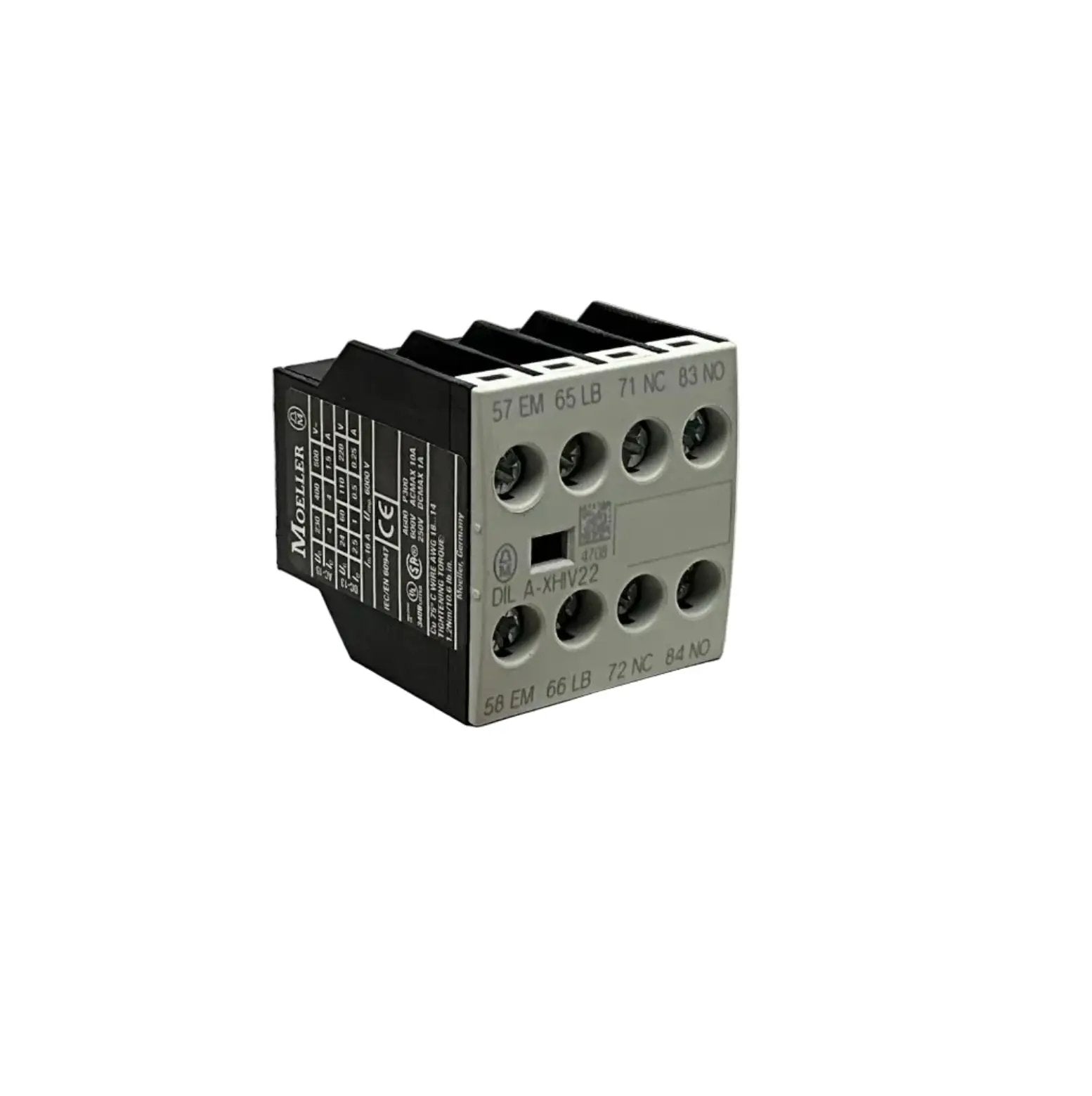

Moeller DILA-XHIV22 Contactor Relay x 5pcs

- Brand: Moeller (Eaton)

- Model: DILA-XHIV22

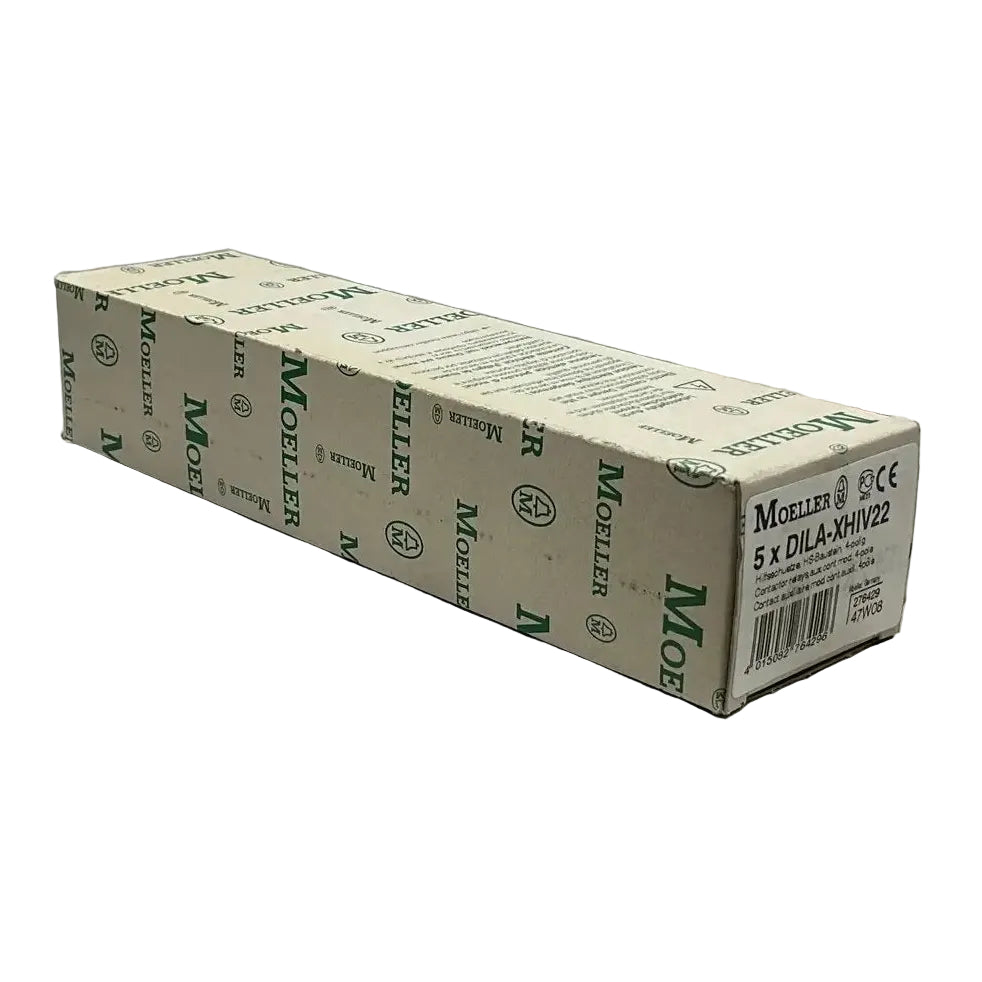

- Type: Auxiliary Contactor Relay x 5/box

- Part Number: 276429

- Technical Specifications:

- Front-mounted auxiliary contact block

- Designed for Moeller DILA contactor relays and DILM contactors

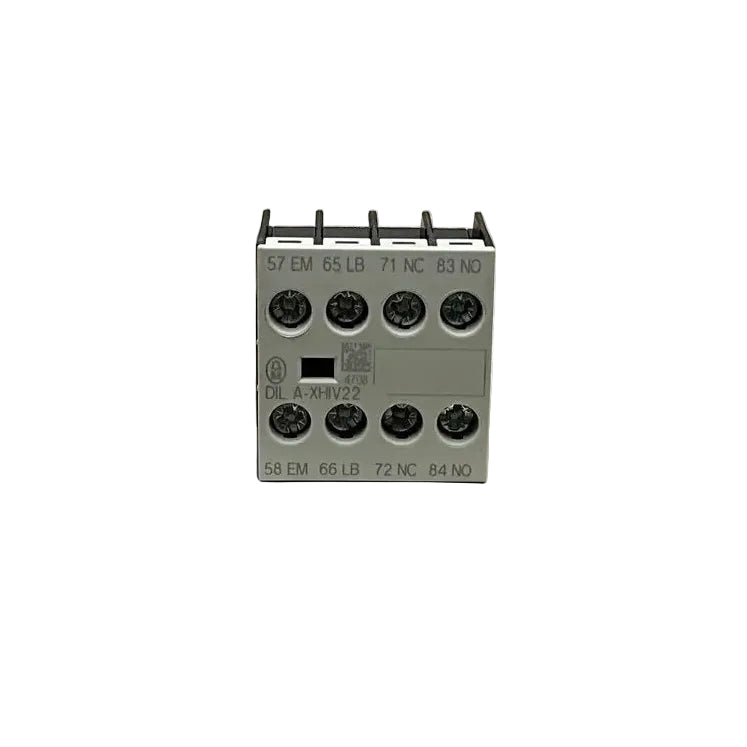

- Contact configuration:

- 1 NO (Normally Open)

- 1 NOE (Early-Make Normally Open)

- 1 NC (Normally Closed)

- 1 NCL (Late-Break Normally Closed)

- Total contacts: 4-pole

- Mounting: Front fastening / snap-on mounting

- Tool-free installation

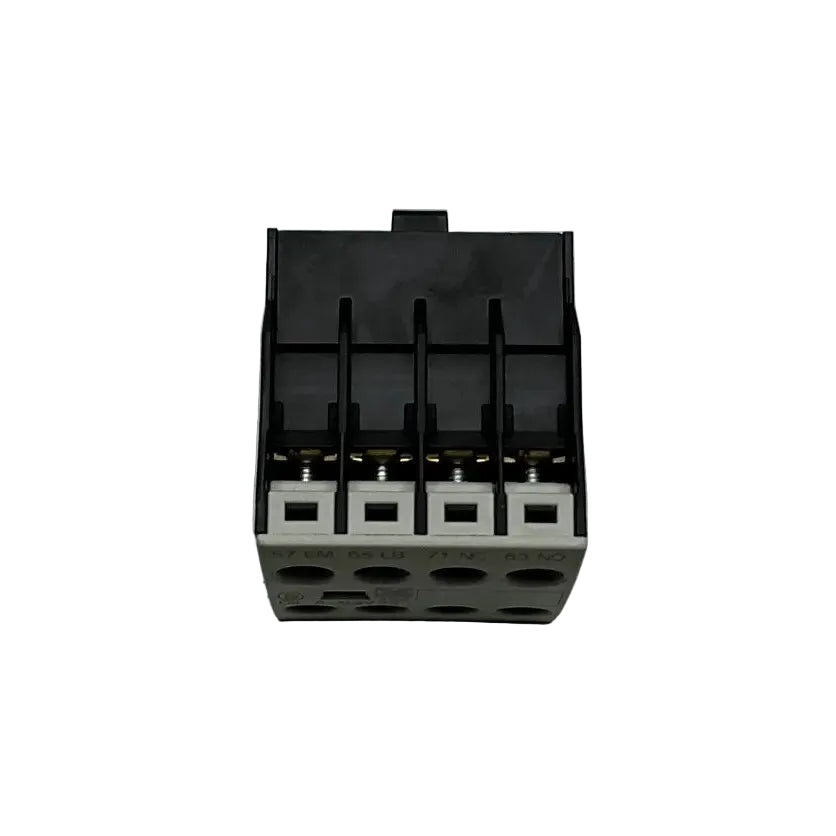

- Connection type: Screw terminals

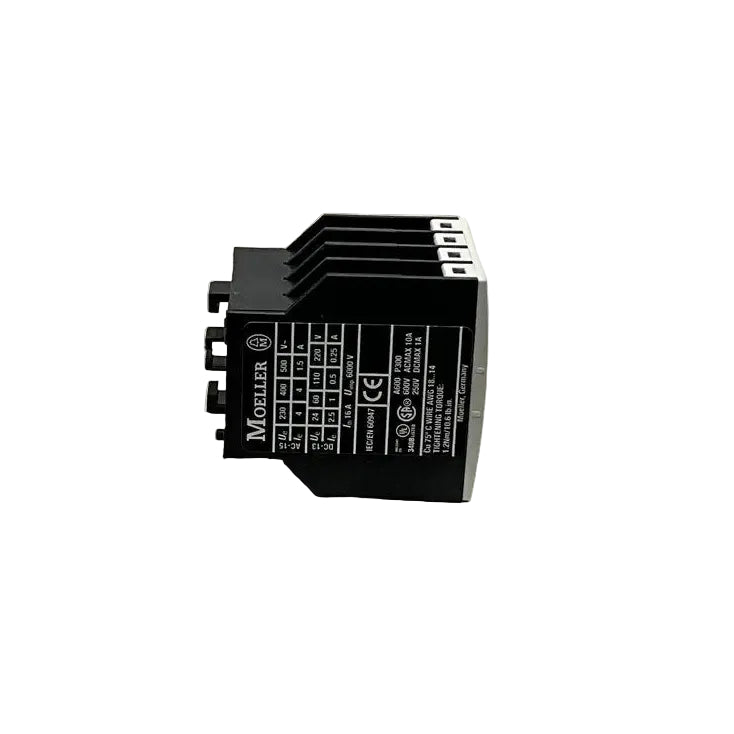

- Rated operational current (AC-15): 4 A at 230 VAC, 4 A at 400 VAC, 1.5 A at 500 VAC

- Rated operational current (DC-13): 1 A at 60 VDC, 0.5 A at 110 VDC, 0.25 A at 220 VDC

- Conventional thermal current (Ith): 16 A

- Rated insulation voltage (Ui): 690 VAC

- Rated impulse withstand voltage (Uimp): 6 kV

- Degree of protection: IP20

- Pollution degree: 3

- Mechanical endurance: 10 million operations

- Electrical endurance: 1.3 million operations at 230 VAC AC-15, 3 A

- Operating temperature: -25°C to +60°C

- Storage temperature: -40°C to +80°C

- Standards: IEC/EN 60947, IEC/EN 60947-4-1, UL 508, CSA, CE

- Compatible with: DILA contactor relays, DILM7 to DILM38 contactors DILMP20 to DILMP45 contactors, DILMF series contactors

Weight: 50 g (260g / box)

Dimensions: 36 × 38 × 45 mm

Country of Origin: Romania

HS Code: 8536.50

Quantity: 5 Pieces
