Omron

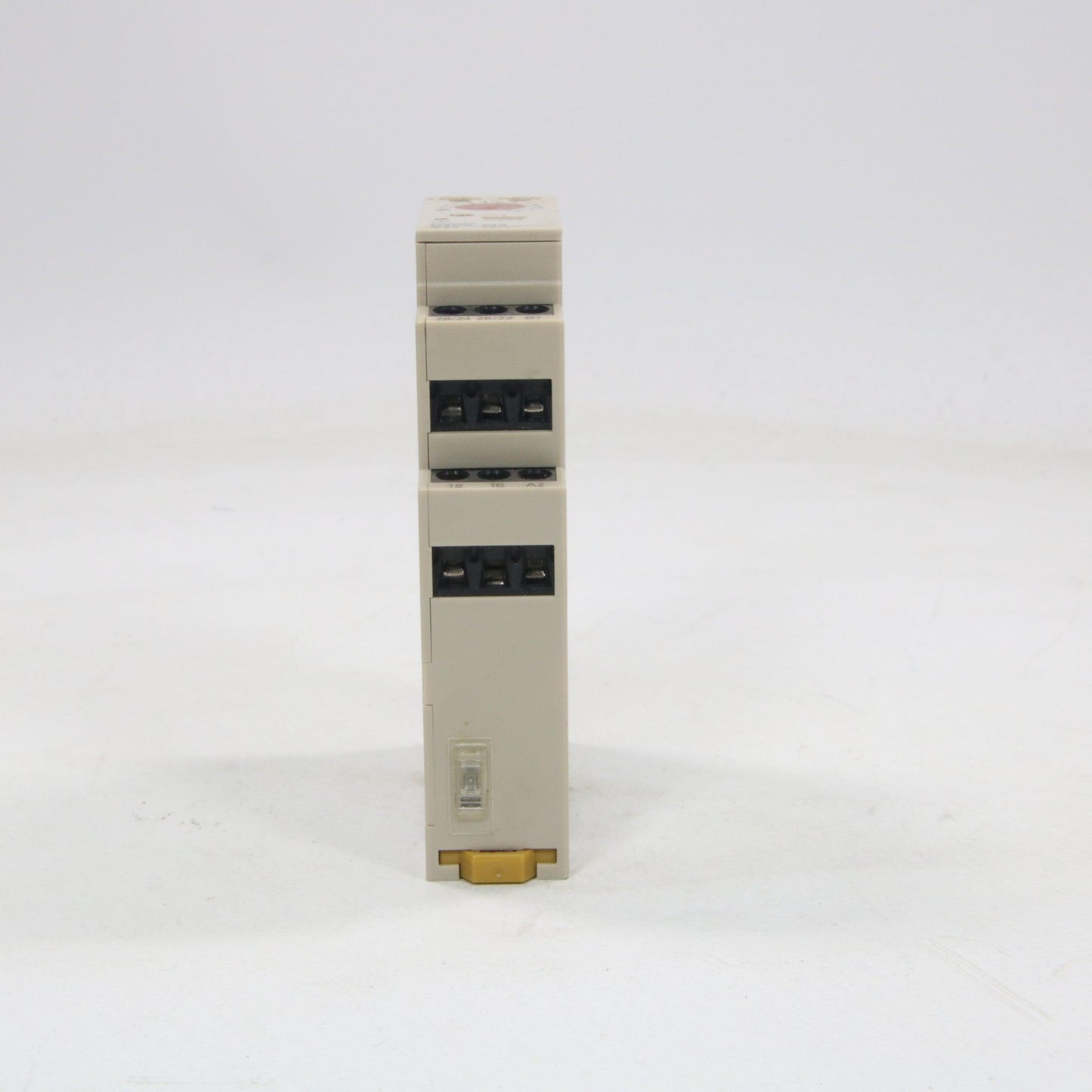

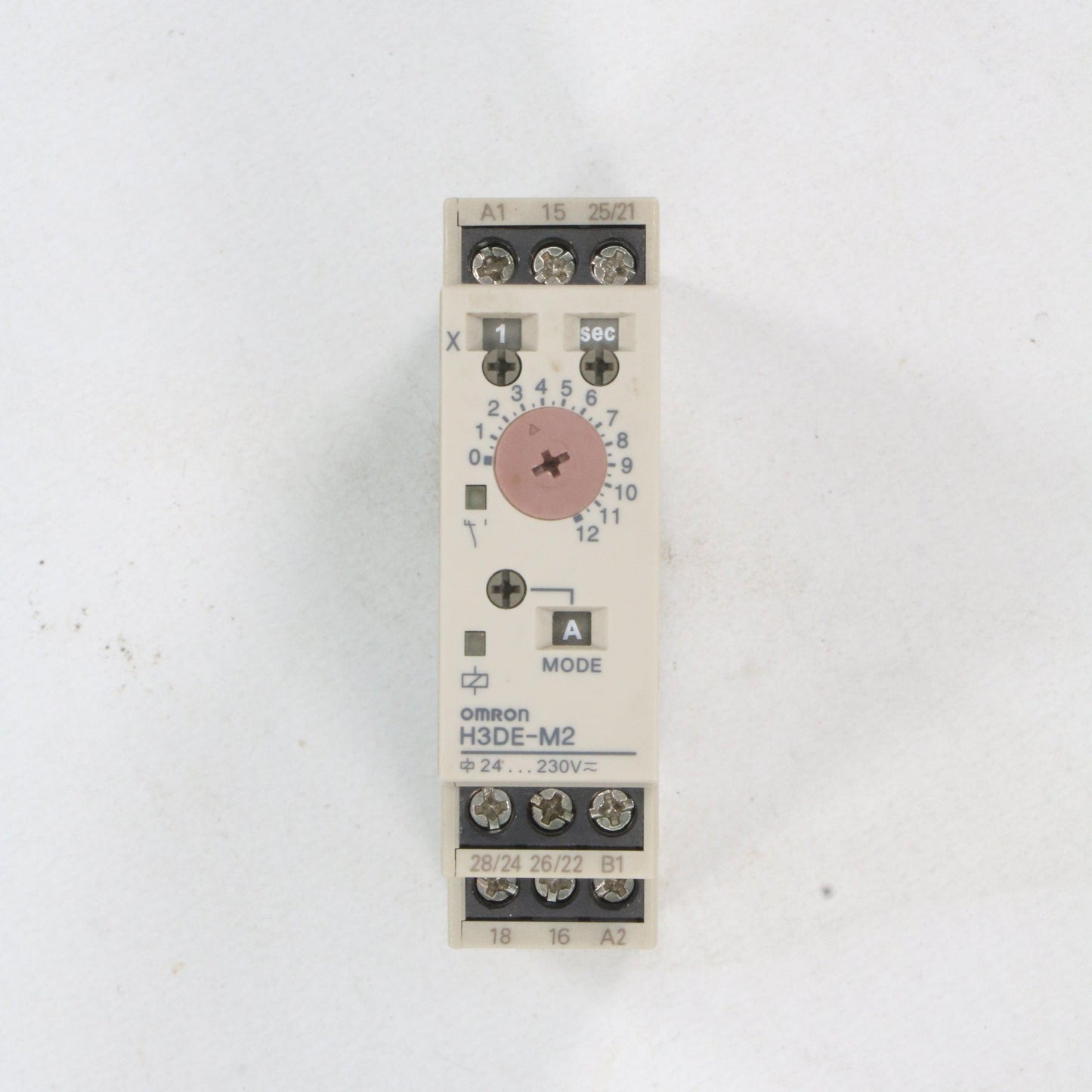

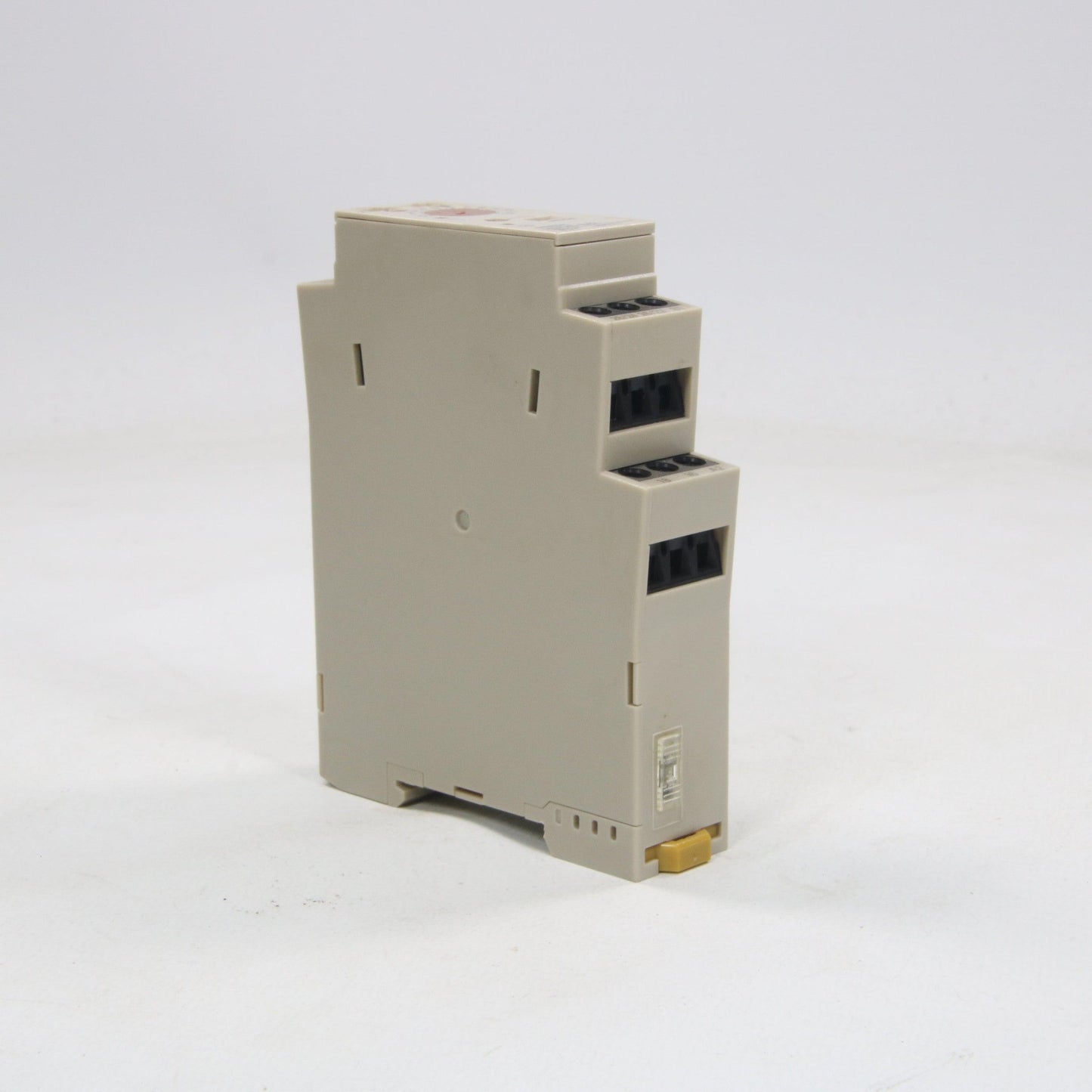

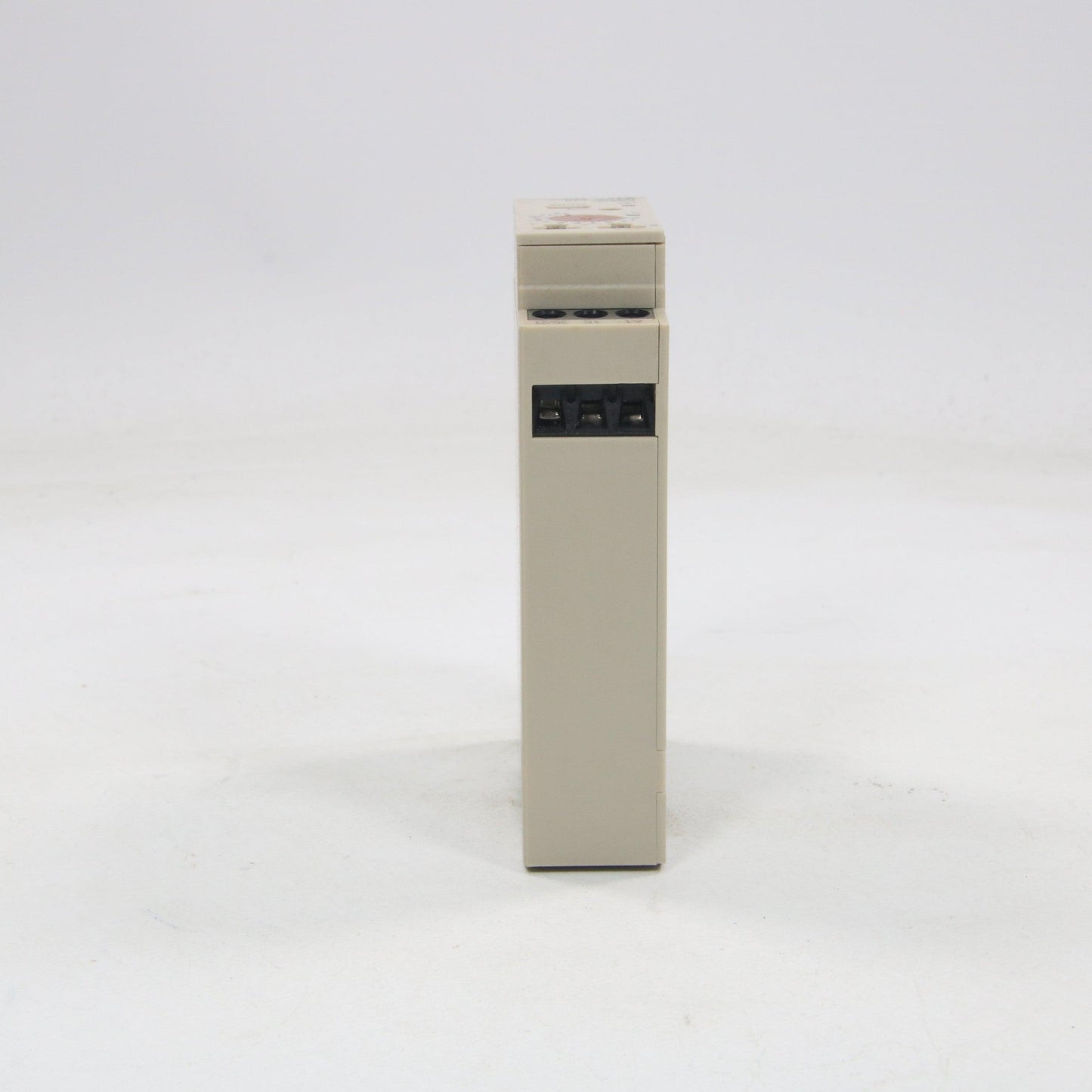

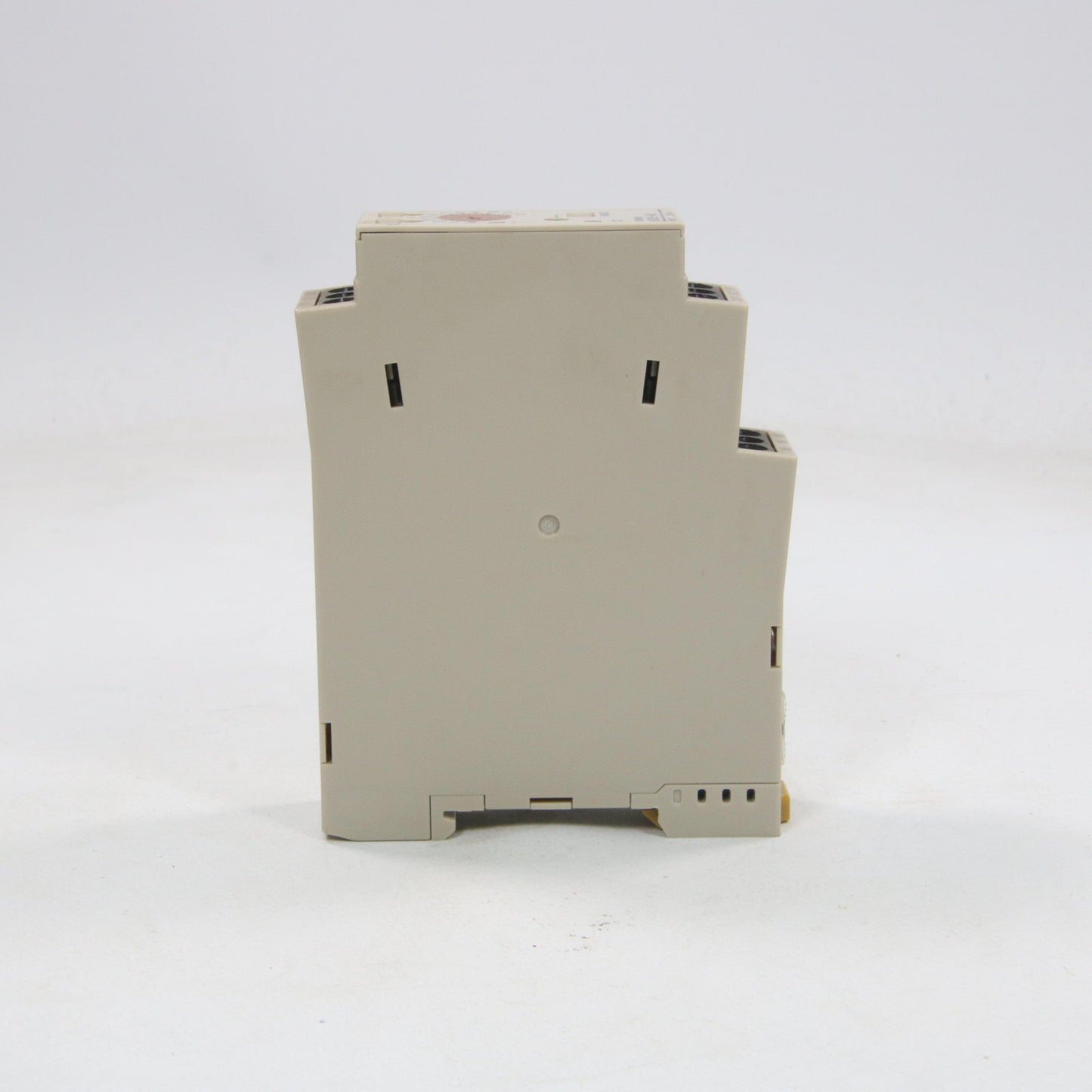

Omron H3DE-M2 Timer Relay

Omron H3DE-M2 Timer Relay

€66,55incl. VAT
€55,00 excl. VAT

Out of stock
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandOmron
ModelH3DE-M2
TypeTimer Relay (Multi-Function Solid-State Timer)
Part NumberH3DE-M2 AC/DC24-230
Technical Specs
MountingDIN rail
Supply Voltage24 to 230 V AC (50/60 Hz) / 24 to 240 V DC
Power ConsumptionAC: 2.1 VA max, DC: 0.45 W max
Output Type2 changeover contacts (DPDT, 2 SPDT, 5 A at 250 V AC resistive)
Time Range0.1 s to 120 h (8 selectable ranges: 0.1-1 s, 1-10 s, 10-100 s, 1-10 min, 10-100 min, 100-1000 min, 10-100 h, 1-12 h)
Operating Modes7 modes (A: ON-delay, B: Flicker OFF start, B2: Flicker ON start, C: Signal ON/OFF-delay, D: Signal OFF-delay, E: Interval, G: Signal ON-delay)
Reset Time0.1 s min
Accuracy of Operating Time±1% FS max
Setting Error±1% FS ±0.01 s max
Influence of Voltage±1% FS max
Influence of Temperature±2% FS max
Number of Timing Operations100,000 min
Mechanical Life10,000,000 operations min
Electrical Life100,000 operations min
Start InputSignal or power start (terminal B1-A2)
Gate InputNot applicable (for H3DE-M2)
IndicatorGreen LED (power ON), Orange LED (output ON)
Operating Temperature-20°C to 65°C
Storage Temperature-25°C to 65°C
Humidity25% to 85% RH
EMCEN 61812-1 (IEC 61812-1)
Safety StandardsUL 508, CSA C22.2 No.14, EN 60947-5-1, EN 61010-1
Pollution Degree2
Impulse Withstand Voltage4 kV
Dielectric Strength2 kV AC
Vibration Resistance10 to 55 Hz, 1.0 mm double amplitude
Shock Resistance294 m/s² (30 G)
Additional Features

  Multi-voltage AC/DC supply reduces inventory needs

  Wide time range and multiple modes for versatile applications

  DIN rail mount with finger-safe terminals

  Output selector switch for time-limit or instantaneous contact

Dimensions80 x 55 x 23 mm
Weight120 g
Country of OriginChina
HS Code8536.49
