Omron

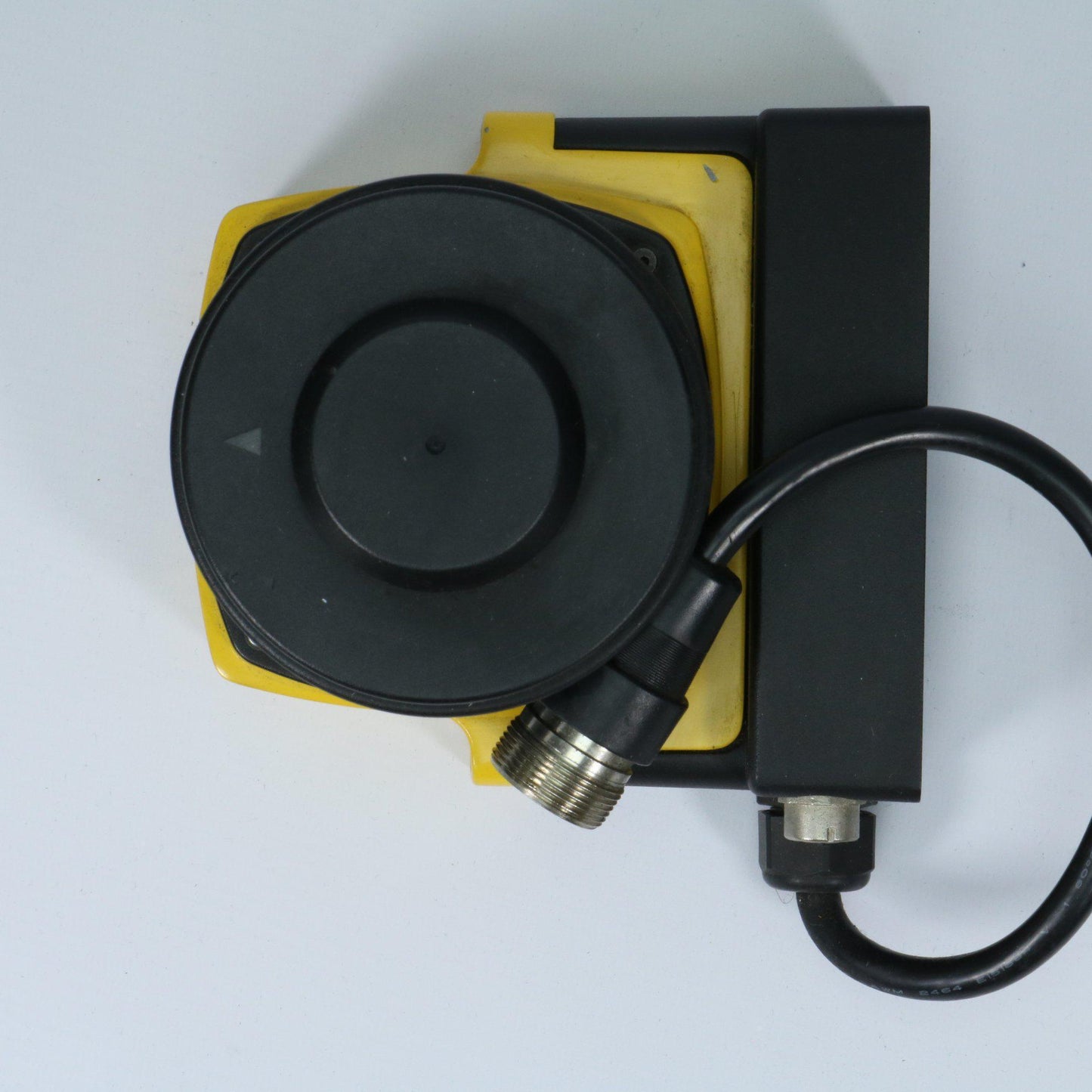

Omron OS32C-SN-4M + CBSP1 Laser Scanner

Omron OS32C-SN-4M + CBSP1 Laser Scanner

€1.808,95incl. VAT
€1.495,00 excl. VAT

Stock: 2
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandOmron
Part NumberOS32C-SN-4M
ModelOS32C Series Safety Laser Scanner
TypeType 3 Safety Laser Scanner
Safety CategoryPLd (Performance Level d), Category 3 (ISO 13849-1)
SIL RatingSIL 2 (IEC 61508)
Detection CapabilityConfigurable via configuration tool; Non-transparent objects with a diameter of 30, 40, 50, or 70 mm
Operating RangeSafety Zone: 1.75 m (min. object resolution of 30 mm), 2.5 m (min. object resolution of 40 mm), 3.0 m (min. object resolution of 50 mm), 4.0 m (min. object resolution of 70 mm); Warning Zone: 15.0 m
Detection Angle270°
Angular Resolution0.4°
Laser Beam Diameter6 mm at optics cover, 14 mm (typical) at 3 m
Laser WavelengthInfrared Laser Diode (905 nm)
Laser Protection ClassClass 1 (IEC/EN 60825-1)
Power Supply24 VDC ±25% (ripple p-p 2.5 V max.)
Power ConsumptionNormal operation: 5 W max.; Standby mode: 3.75 W (without output load)
OutputsSafety Output (OSSD): PNP transistor x 2, load current of 250 mA max.; Auxiliary Output (Non-Safety): NPN/PNP transistor x 1, load current of 100 mA max.; Warning Output (Non-Safety): NPN/PNP transistor x 1, load current of 100 mA max.
Communication InterfaceEthernet
Ambient TemperatureOperation: -10 to 50°C; Storage: -25 to 70°C
Enclosure RatingIP65 (IEC 60529)
Dimensions (WxHxD)133.0 x 104.5 x 142.7 mm (excluding cable)
CertificationsTÜV Rheinland, UL; Standards: EN 61496-1 (Type 3 ESPE), EN 61496-3 (Type 3 AOPDDR), EN 61508 (SIL 2), IEC 61496-1 (Type 3 ESPE), IEC 61496-3 (Type 3 AOPDDR), IEC 61508 (SIL 2), UL 508, UL 1998, CAN/CSA-C22.2 No. 14, CAN/CSA-C22.2 No. 0.8

🔌 Omron CBSP1 – Sensor Block Cable Access

BrandOmron
Part NumberCBSP1
ModelSensor Block Cable Access
CompatibilityDesigned for use with Omron OS32C Series Safety Laser Scanners
FunctionProvides access for connecting cables to the sensor block of the safety laser scanner
MountingEasily attaches to the sensor block of the OS32C Series
MaterialDurable construction to ensure secure cable connections
DimensionsCompact design for easy integration into existing setups
WeightLightweight for minimal impact on overall system weight
CertificationsComplies with relevant industry standards for safety and performance.

* Multiple OS32Cs cannot be monitored simultaneously
