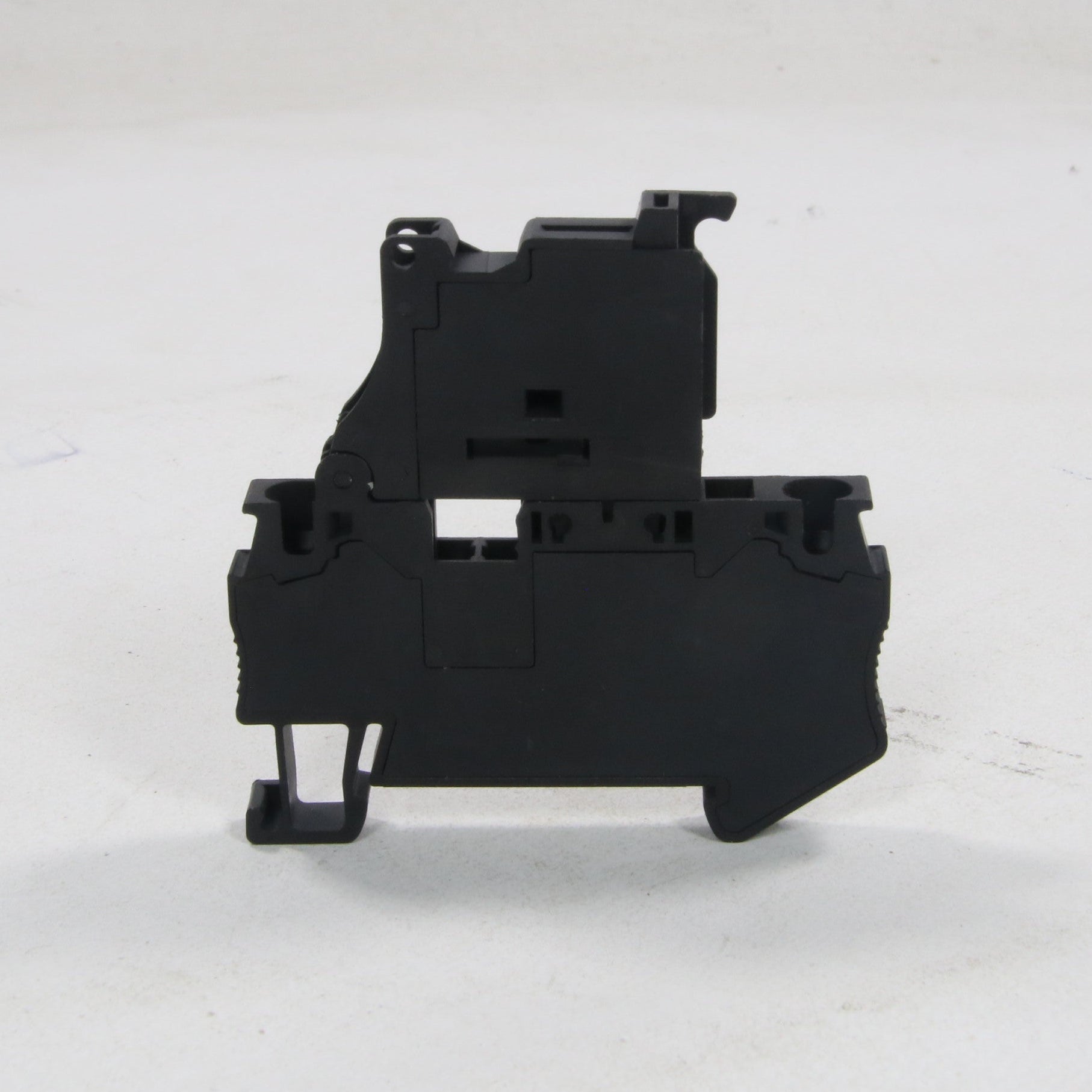

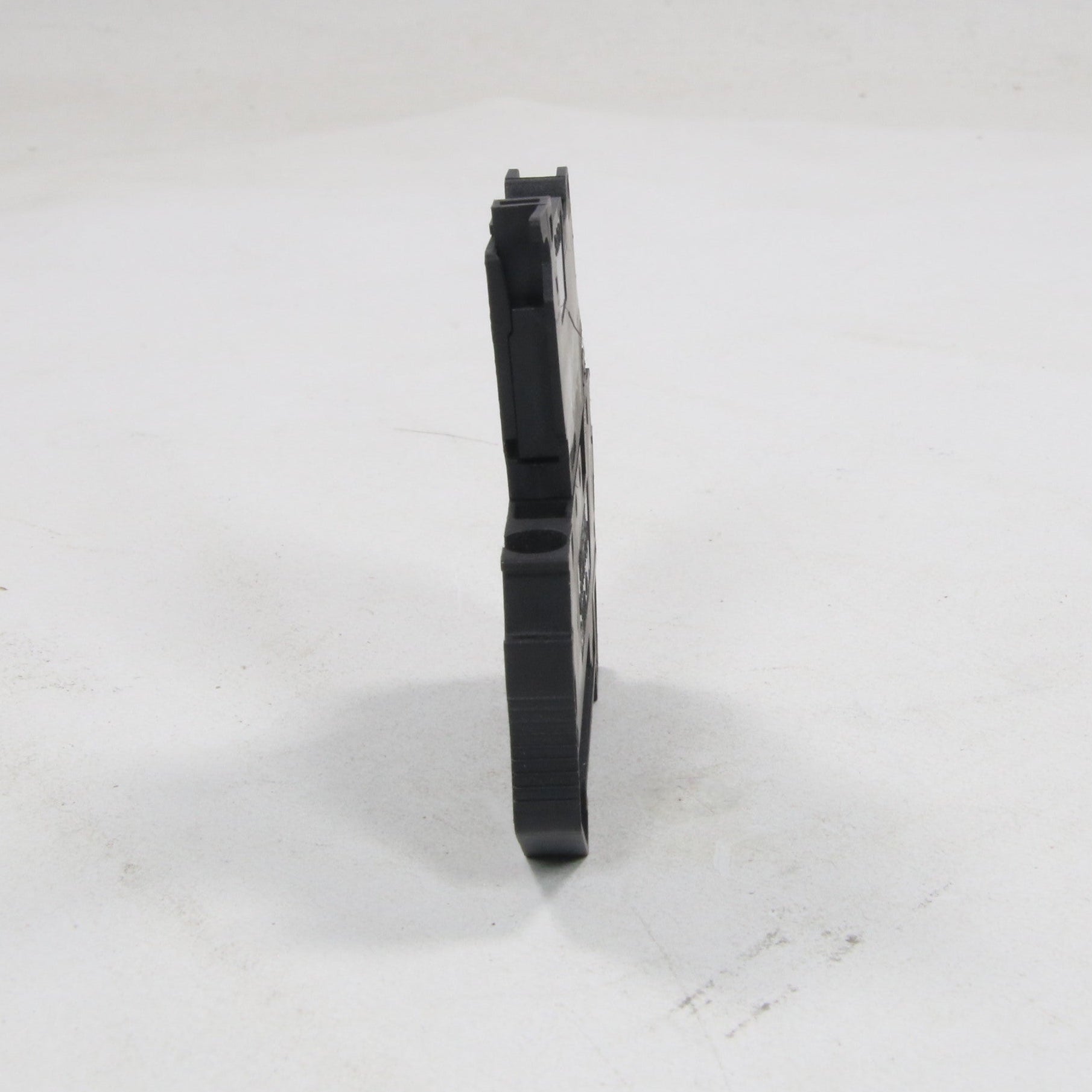

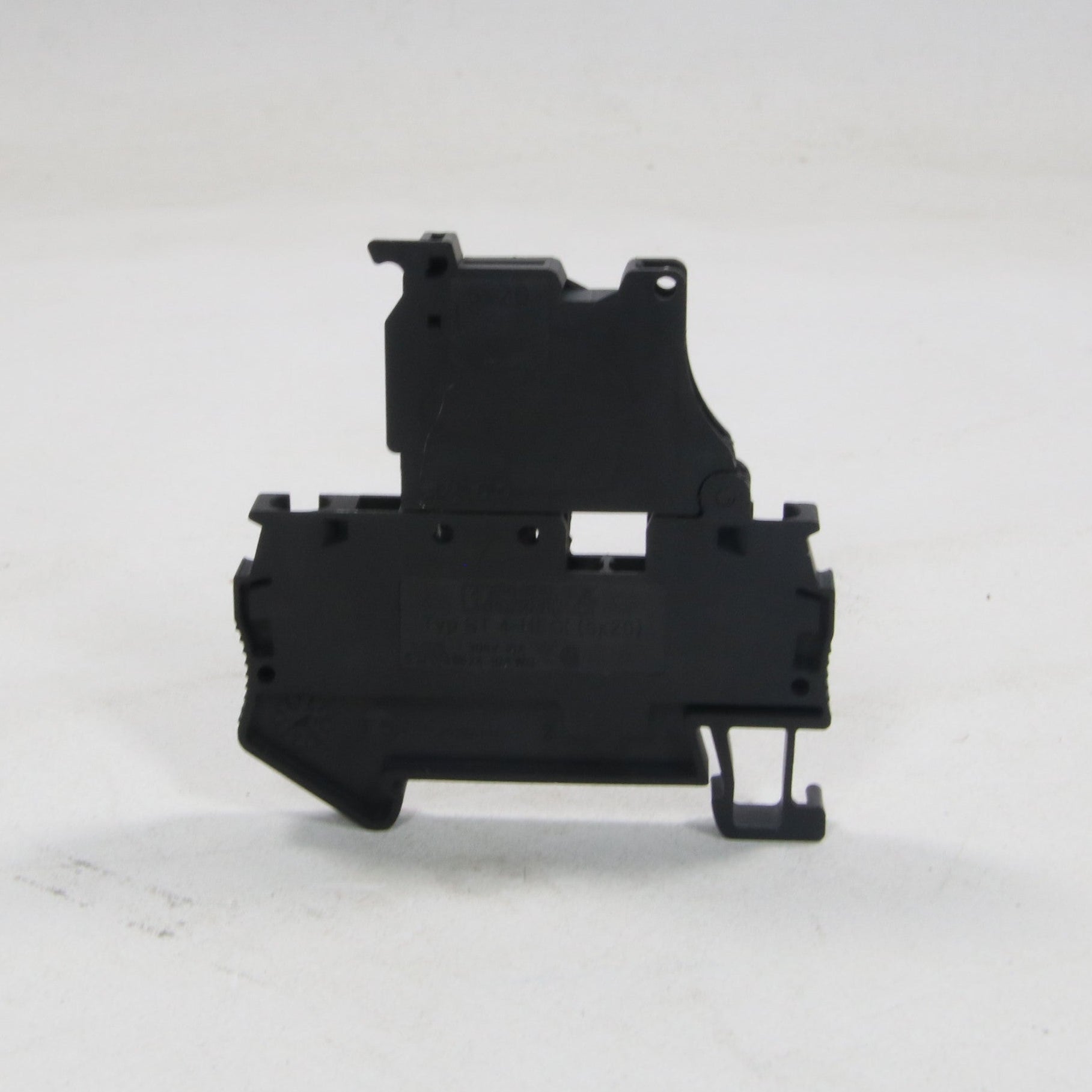

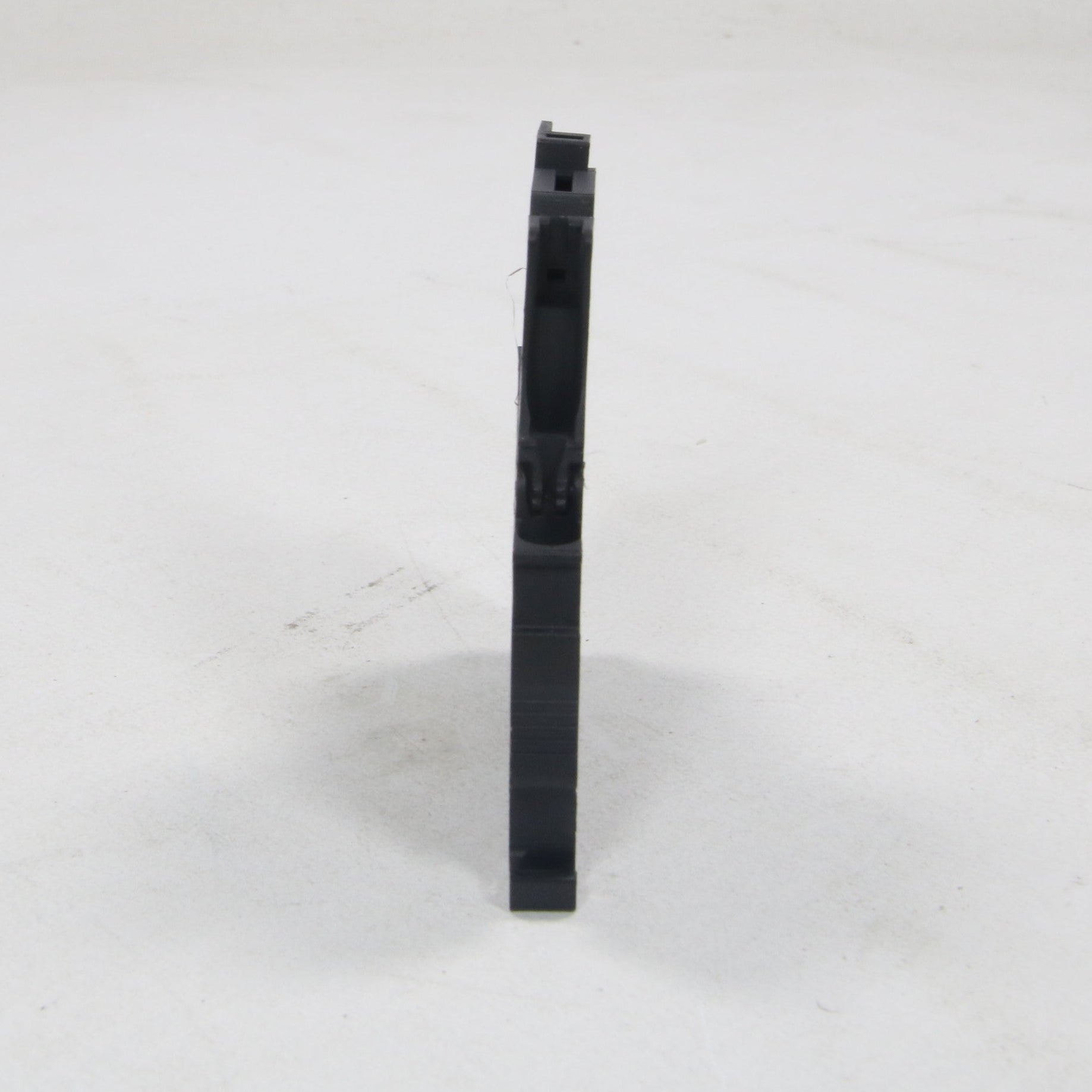

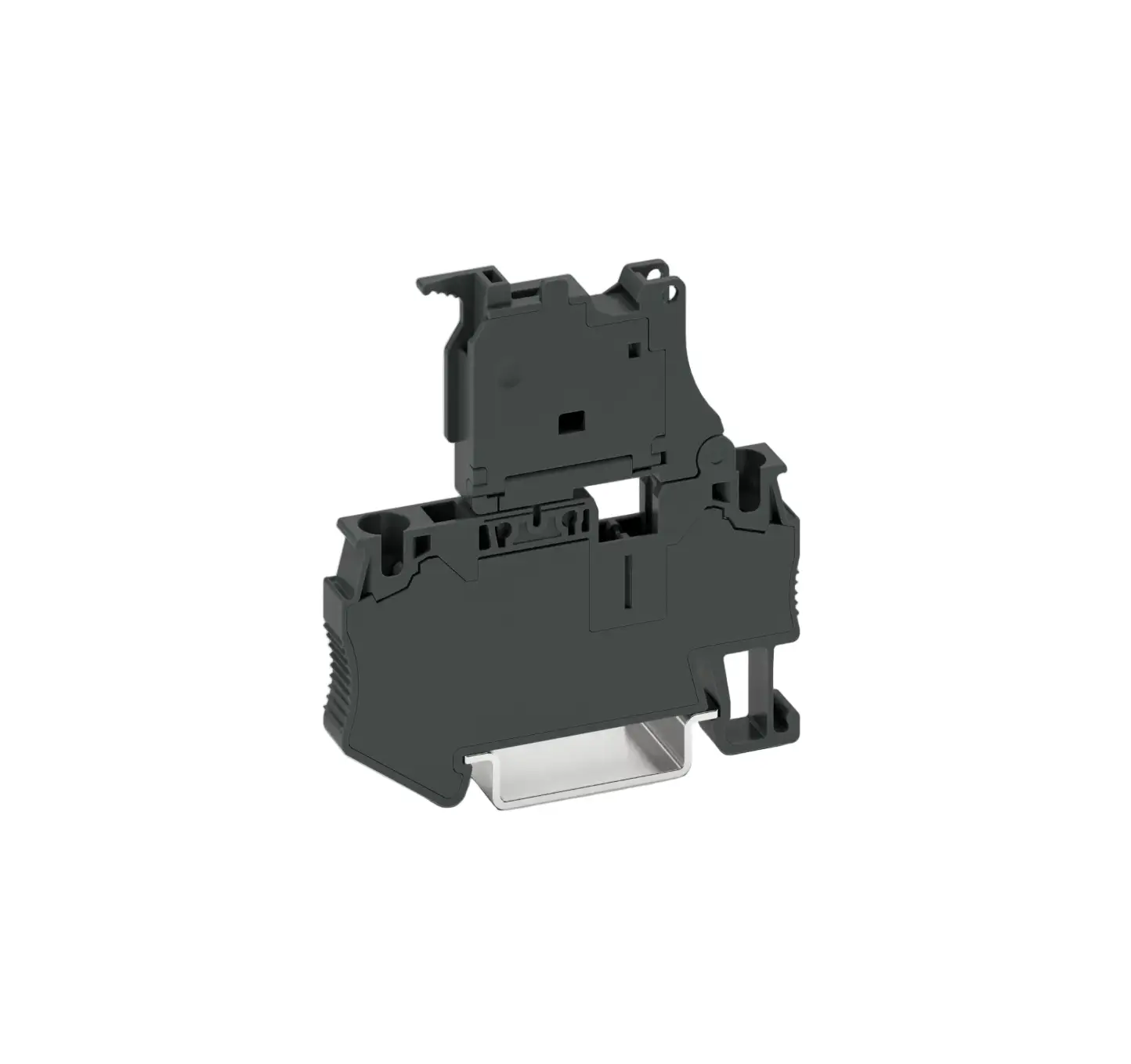

Phoenix Contact ST 4- HESI (5x20) Fuse Terminal Block (x50 pcs.)

- Brand: Phoenix Contact
- Model: ST 4-HESI (5x20)
- Type: Fuse Terminal Blocks x 50 pcs.
- Order number: 3036369
  - Function: DIN rail terminal block with integrated fuse holder for 5 × 20 mm fuses (glass tube or ceramic fuses), for protecting circuits in control cabinets
  - Rated Voltage: 500 V AC / 500 V DC
  - Rated Current: 6.3 A (with fuse), 10 A (without fuse)
  - Nominal Cross Section: 4 mm²
  - Conductor Cross Section: 0.2 – 6 mm² (solid/flexible)
  - AWG Range: 24 – 10
  - Connection Type: Screw connection
  - Fuse Type: 5 × 20 mm (glass or ceramic, max 6.3 A)
  - Fuse Holder: Hinged cover
  - Test Points: Test tap on both sides
  - Mounting: DIN rail NS 35/7.5, NS 35/15
  - Spacing: 6.2 mm (standard)
  - Insulation Material: Polyamide (PA)
  - Flammability Class: V0 (UL 94)
  - Stripping Length: 8 mm
  - Tightening Torque: 0.6 – 0.8 Nm
  - Operating Temperature: -60 °C to +130 °C
  - Pollution Degree: 3 (IEC 60664)
  - Overvoltage Category: III
  - Certifications: UL, CSA, VDE, EAC, ATEX (optional Ex versions)
  - Features: Hinged fuse holder for easy replacement, double bridge shaft for potential distribution, high current carrying capacity

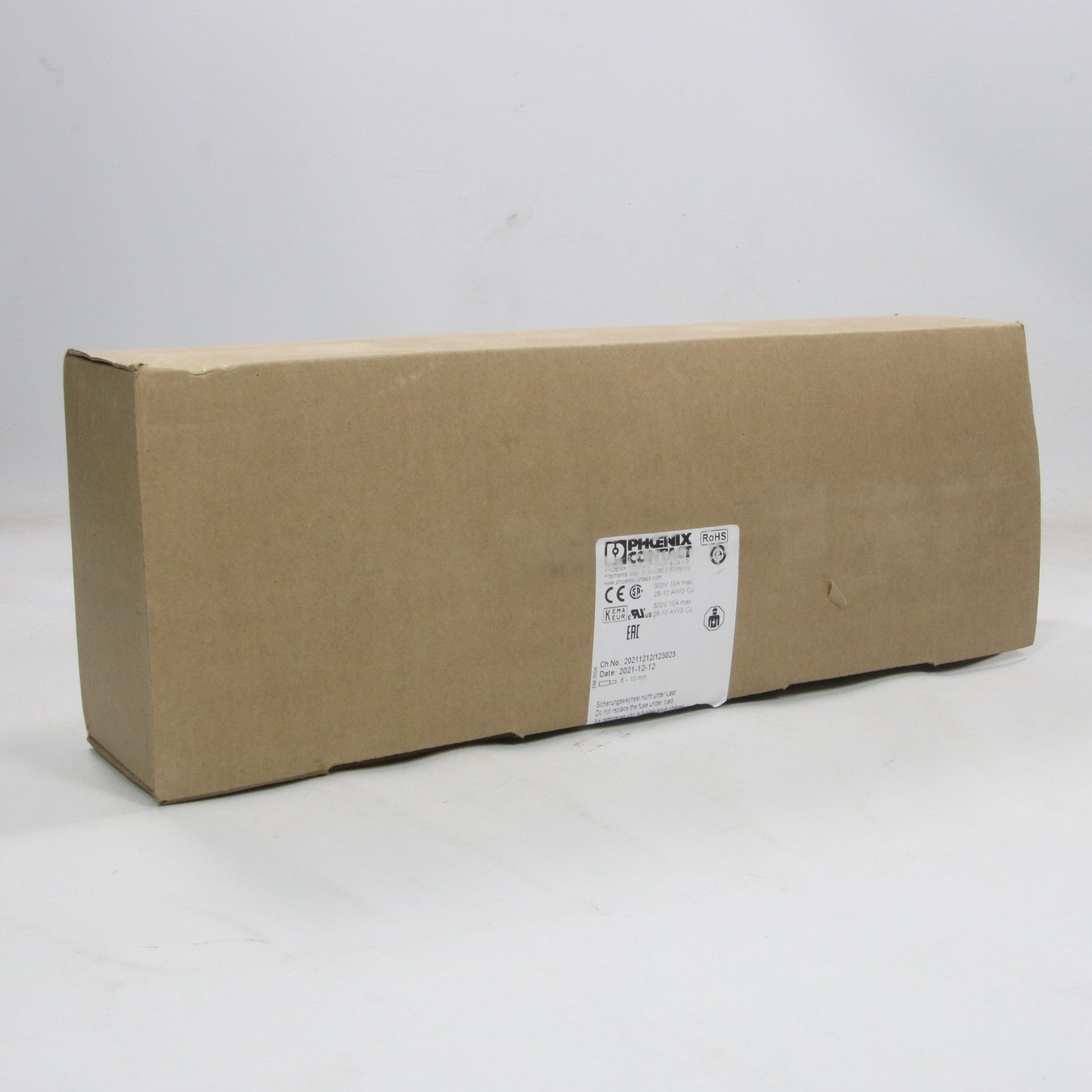

- Dimensions: 310 x 120 x 70 mm (box/50)
- Weight: 800 g (box/50)
- Country of origin: India
- HS code: 853690
