Phoenix Contact

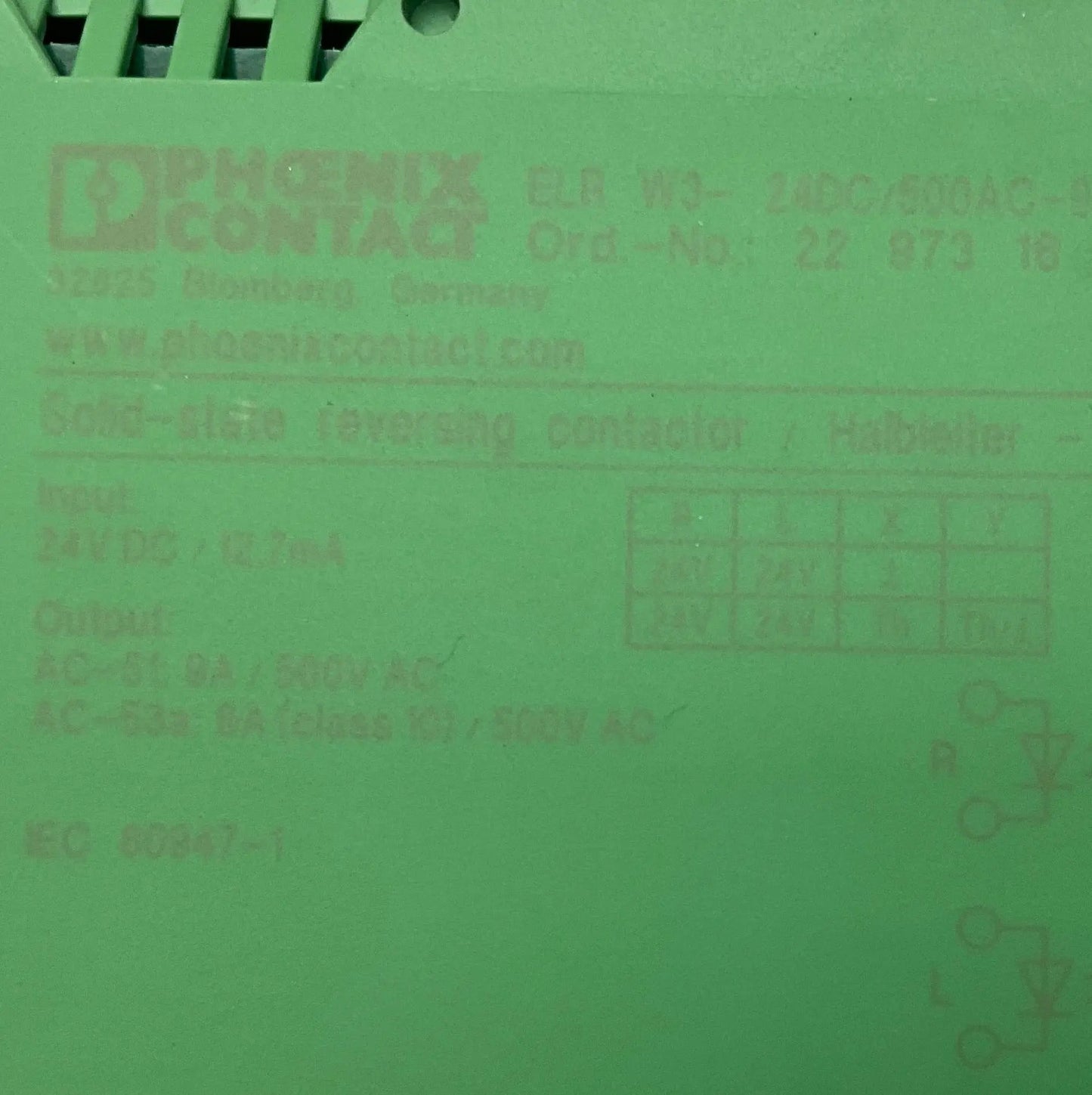

Phoenix Contact ELR W3-24DC/500AC-9 3~Phase Reversing Contactor

Phoenix Contact ELR W3-24DC/500AC-9 3~Phase Reversing Contactor

€332,75incl. VAT
€275,00 excl. VAT

Stock: 2

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandPhoenix Contact
ModelELR W3-24DC/500AC-9
Type3-Phase Reversing Contactor/Solid State Relay
Part Number2297316
Technical Specs
Function3-phase reversing solid-state contactor for motor control
Input Voltage24 V DC
Input Current8 mA
Output Voltage3 × 48–550 V AC ~3-phase
Output Current9 A per phase
Output Power3 × 3 kW at 400 V AC
Switching TypeZero-cross switching
Load TypeResistive/inductive
Overload Capacity16 A for 1 s
Leakage Current< 3 mA
On-State Voltage Drop≤ 1.6 V per phase
Turn-On Time≤ 1 ms
Turn-Off Time≤ 1 ms
Isolation Voltage4 kV
Surge Voltage6 kV
ProtectionBuilt-in varistor (MOV) surge protection
CoolingNatural convection
MountingDIN rail (TS 35)
ConnectionScrew terminals (0.2–2.5 mm²)
Operating Temperature-25 °C to +60 °C
Storage Temperature-40 °C to +85 °C
Additional Features

  Zero-voltage switching reduces EMI

  LED status indicators

  Compact design

  High switching frequency (up to 600 cycles/h)

  No wearing parts (solid-state)

CertificationsCE, UL Listed (E172140), CSA, EAC

Discontinued

Dimensions130 x 100 x 130 mm
Weight800 g
Country of OriginGermany
HS Code8536.49
