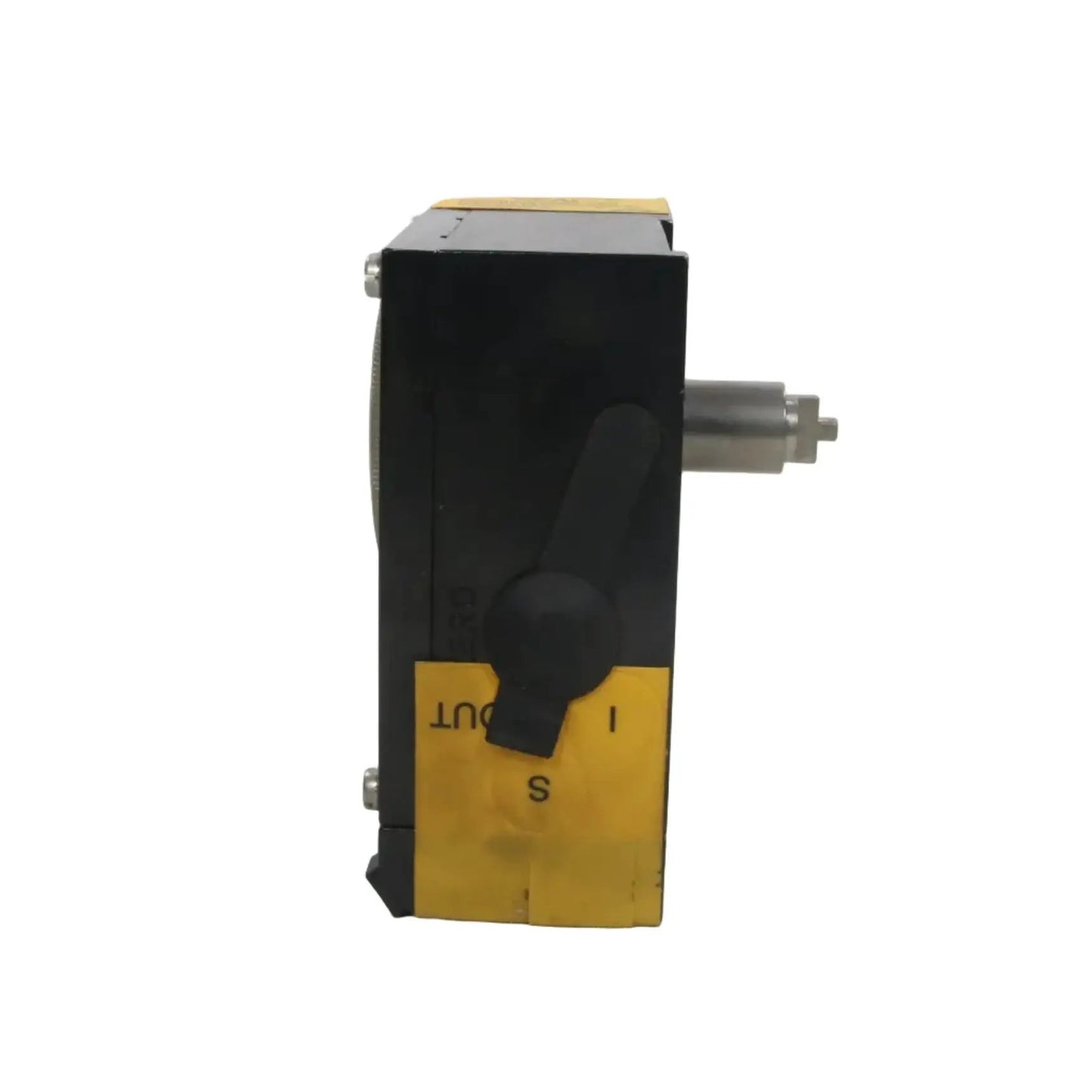

PMV EP5 Electro-Pneumatic Positioner

PMV EP5 Electro-Pneumatic Positioner

€1.119,25incl. VAT
€925,00 excl. VAT

Out of stock

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandPMV (a Rotork brand)
ModelEP5
TypeElectro-Pneumatic Positioner
All tech specs
  FunctionConverts a 4–20 mA control signal into a proportional pneumatic output pressure to precisely position pneumatic actuators (linear or rotary) in valve control applications
  Input Signal4–20 mA DC
  Supply Pressure10 bar (Max 1 MPa)
  Output Pressure Range0.4 – 7 bar
  Air Consumption≤ 0.3 Nm³/h (normal air) at 1.4 bar supply in steady state
  Accuracy±0.5 % of full stroke (linearity + hysteresis + repeatability)
  Hysteresis≤ 0.5 %
  Repeatability±0.3 %
  Sensitivity≤ 0.2 %
  Dead Band≤ 0.1 %
  Response Time≤ 1 second for 90 % step change
  MountingNAMUR (VDI/VDE 3845) for rotary, IEC 534-6 for linear
  Protection RatingIP66 / NEMA 4X
  Operating Temperature–40 °C to +85 °C
  Housing MaterialAluminium die-cast with epoxy coating
  ConnectionsConnector thread - G¼", Gauge thread - G1/8"
  Electrical ConnectionM20 × 1.5
  CertificationsATEX, IECEx, FM, CSA, SIL 2/3 capable, NEPSI, KOSHA
  FeaturesNon-contact position sensor, auto-calibration, manual override, low air consumption, robust against vibration and shock
Dimensions140 x 60 x 145 mm
Weight1.7 kg
Country of originSweden
HS code903289
