PR Electronics

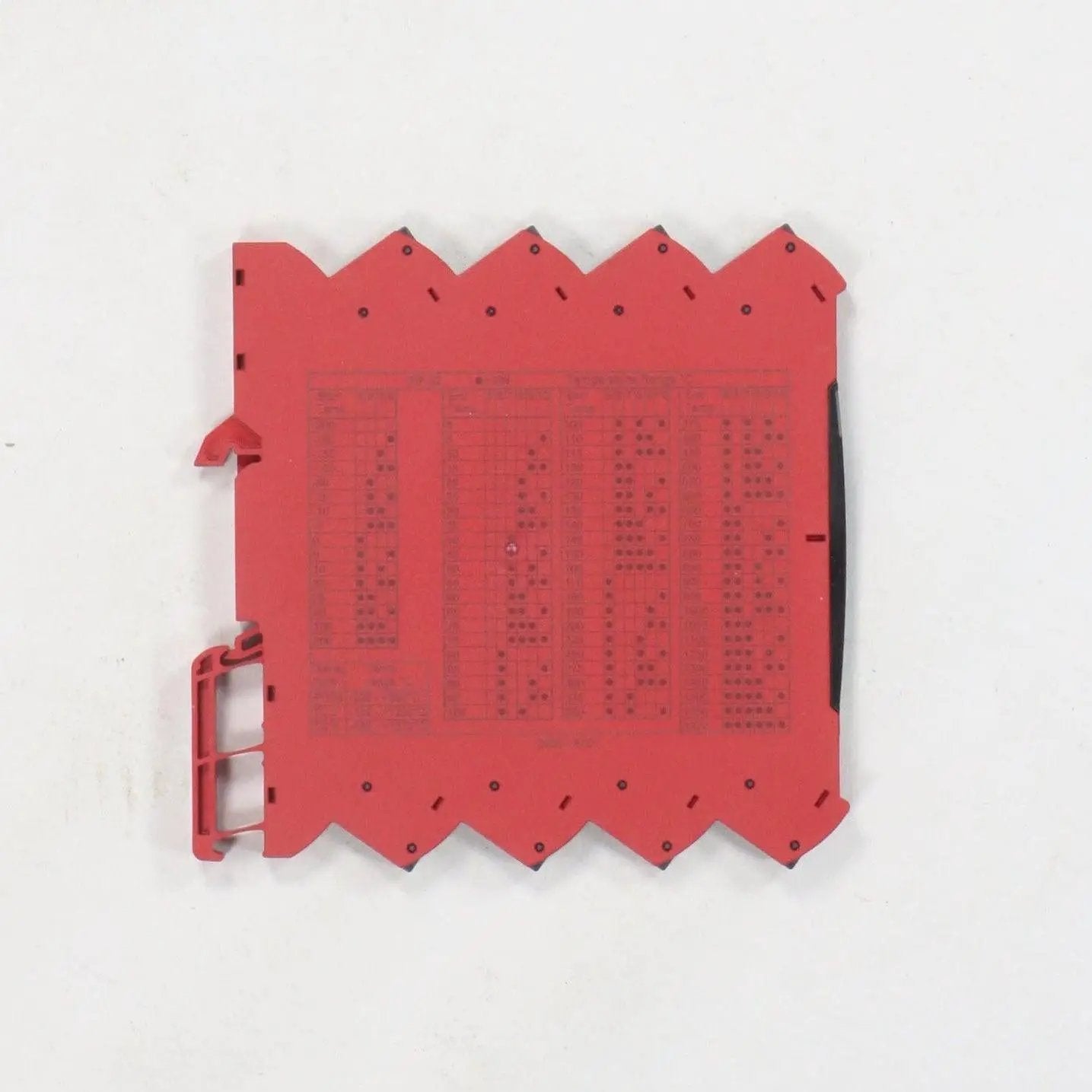

PR Electronics Pt100 Temperature Converter

PR Electronics Pt100 Temperature Converter

€114,95incl. VAT
€95,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandPR Electronics
ModelPt100 Temperature Converter
TypePt100 Temperature Converter / RTD to Analog Signal Converter
Part number3102
Technical specifications
InputPt100 RTD
Temperature range-200...+850°C
OutputConfigurable analog – Current: 0/4–20 mA (NAMUR NE43 compliant, downscale to 3.5 mA / upscale to 23 mA on error) or Voltage: 0/1–5 V DC or 0/2–10 V DC
Supply voltage16.8...31.2 V DC (24 V DC nominal, ±30%; supplied via terminals)
Max. power consumption0.52 W
AccuracyBetter than 0.1% of span
Response timeSelectable <30 ms or 300 ms
EMC performanceExcellent immunity; 50/60 Hz noise suppression
Operating temperature-25...+70°C
Storage temperature-40...+85°C
Relative humidity<95% RH (non-condensing)
Calibration temperature20...28°C
Additional featuresGreen LED for normal operation/input status/malfunction indication; programmable via DIP switches or jumper; slim 6.1 mm housing allows up to 163 units per meter on DIN rail; no air gap required even at 70°C ambient; fault detection with NAMUR NE43 output signaling; high EMC performance
MountingDIN rail (EN 60715 / 35 mm)
Wire size0.13...2.5 mm² / AWG 26...12 (stranded)
StandardsCompliant with relevant IEC/EN for temperature transmitters; EMC tested
Weight150 g
Dimensions150 x 170 x 20 mm
Country of originDenmark
HS code9032.89
