Schmersal

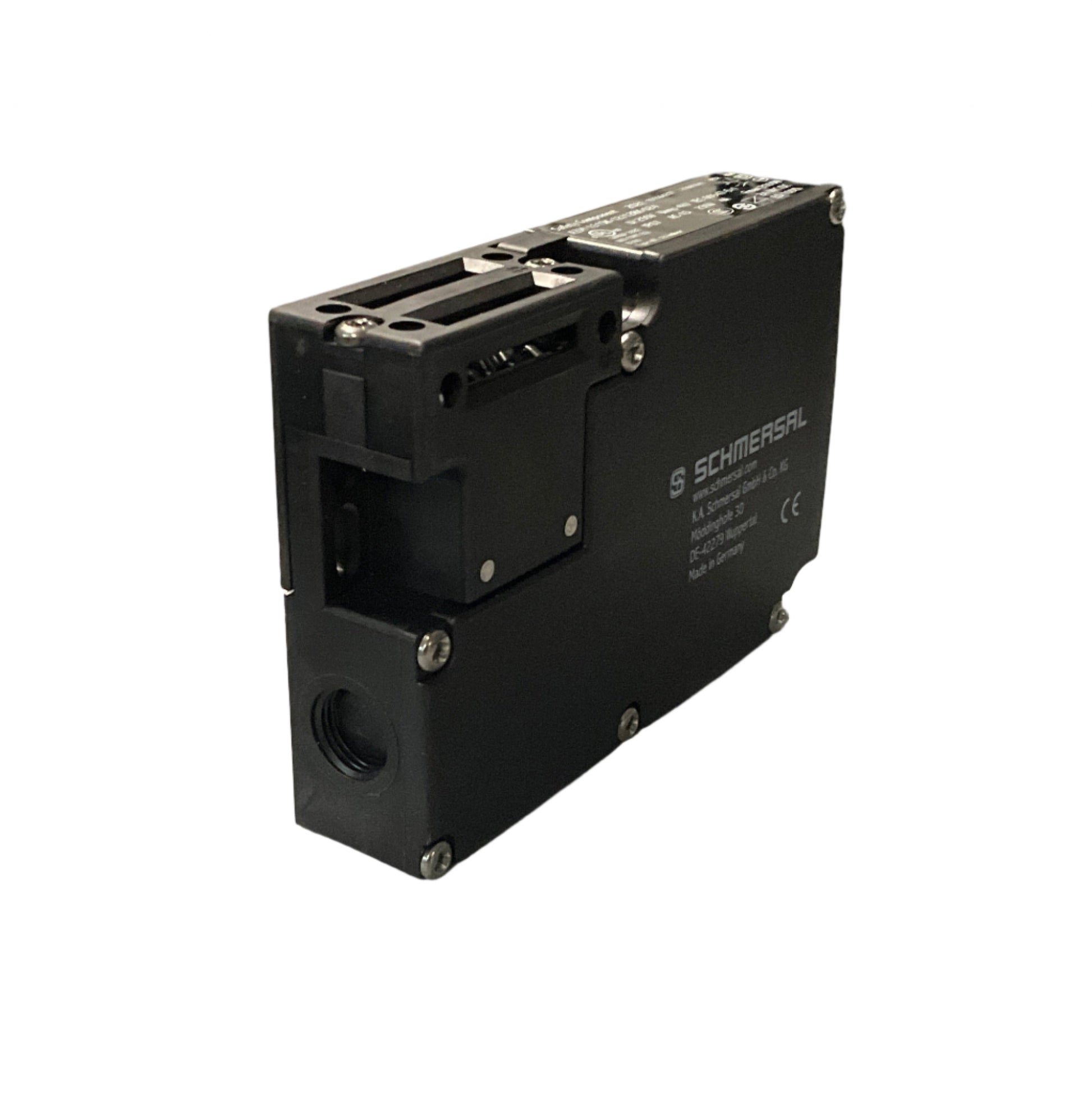

Schmersal AZM 161SK-12/12RK-024 Solenoid Interlock

Schmersal AZM 161SK-12/12RK-024 Solenoid Interlock

€272,25incl. VAT
€225,00 excl. VAT

Stock: 2

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSchmersal
ModelAZM 161SK-12/12RK-024
TypeSolenoid Interlock
Part Number101164207
Working PrincipleElectromechanical, solenoid interlock, "power to unlock" variant
Housing MaterialGlass-fibre reinforced, self‑extinguishing thermoplastic
Gross Weight450 g
Dimensions (L × W × H)130 mm × 90 mm × 30 mm
Safety Contacts4 Auxiliary Contacts: 2
Actuating Directions3 Mechanical Life: ≥ 1,000,000 operations
Holding Force (Fzh)2,000 N Latching Force: 30 N
Positive Break Travel10 mm Positive Break Force (min): 20 N
Actuation Speed (max)2 m/s Performance Levels: PL c (Cat 1), PL d (Cat 3, dual‑channel), PL e (guard‑locking)
Cable Entry4× M16 × 1.5 Termination: Screw terminals (0.25–1.5 mm²)
ProtectionIP 67 Ambient Temp: –30 °C to +60 °C
Rated Control Voltage24 VAC/DC Power Consumption: 10 W - Thermal Test Current: 6 A 
Rated Insulation Voltage250 VAC Impulse Withstand Voltage: 4 kV
Standards & ApprovalsEN ISO 13849‑1, EN ISO 14119, EN IEC 60947‑5‑1; IFA, cULus certified
