Schmersal

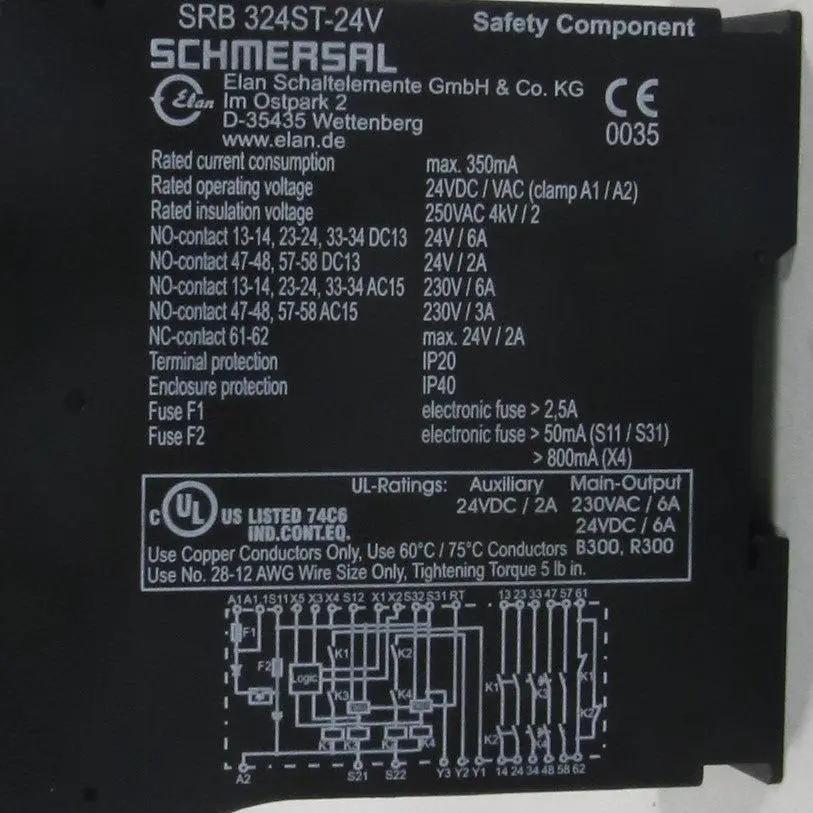

Schmersal Protect SRB 324ST-24 V.3 Safety Relay - 101195504

Schmersal Protect SRB 324ST-24 V.3 Safety Relay - 101195504

€417,45incl. VAT
€345,00 excl. VAT

Stock: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSchmersal
ModelProtect SRB 324ST-24 V.3
TypeSafety Relay
Part number101195504
Technical specifications
Supply voltage24 V AC/DC
Power consumptionmax. 3.2 W / 7.1 VA
Inputs1- or 2-channel control; suitable for potential-free contacts  or PNP semiconductor outputs; cross-short recognition; wire-break and earth-fault monitoring
Safety outputs3 safety contacts (STOP 0/1, positively guided, NO) – max. 6 A / 250 V AC ohmic,
Signalling outputs1 auxiliary contact (NC or signalling) – max. 6 A / 24 V DC
Start / ResetAutomatic start or manual reset with edge detection (configurable)
Response timesPickup delay ≤ 30 ms; dropout delay ≤ 50 ms
Utilisation categoryAC-15 / DC-12 (EN 60947-5-1)
Performance LevelPL e / Category 4 (EN ISO 13849-1) for STOP 0/1
Protection classIP20 (control cabinet mounting)
MountingSnap-on to standard DIN rail (EN 60715, 35 mm)
Additional featuresLED indicators for supply, inputs, and relay status; self-monitoring; suitable for increasing contact capacity via external positively guided contactors; robust for industrial safety applications; version V.3 with improved diagnostics
StandardsEN ISO 13849-1, IEC 61508, EN 60947-5-1, IEC/EN 60204-1; CE marked
Weight440 g
Dimensions120 x 120 x 45 mm
Country of originGermany
HS code8536.49
