Schneider Electric

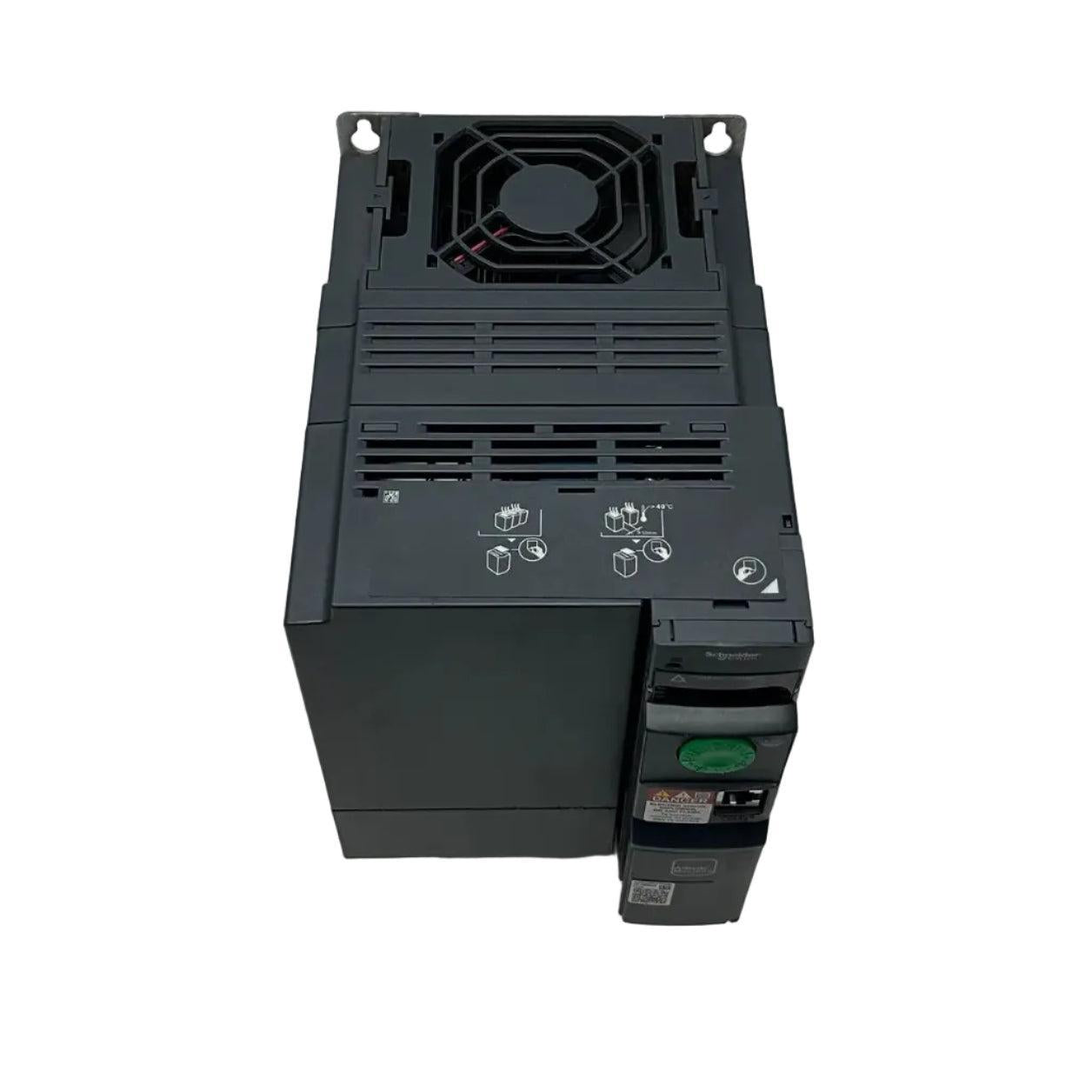

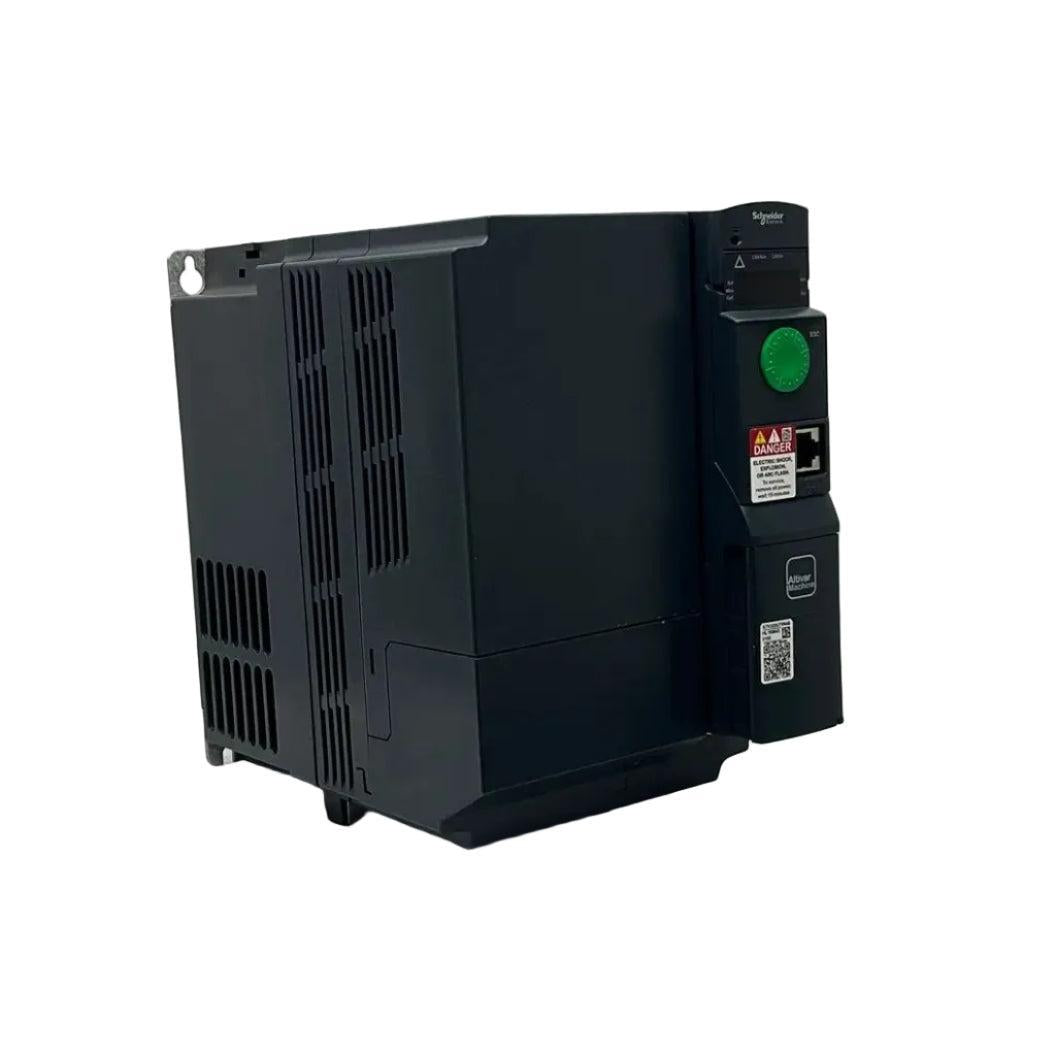

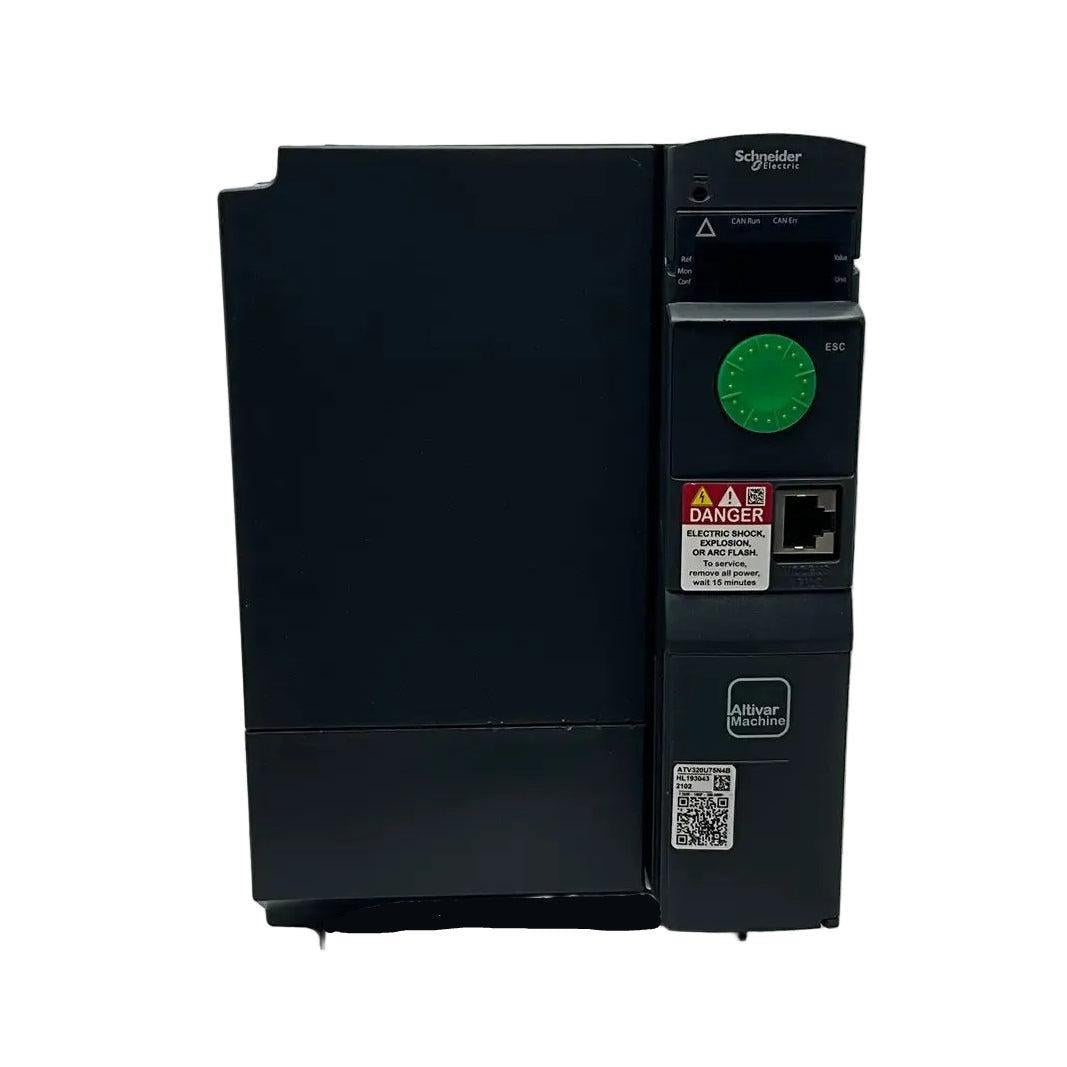

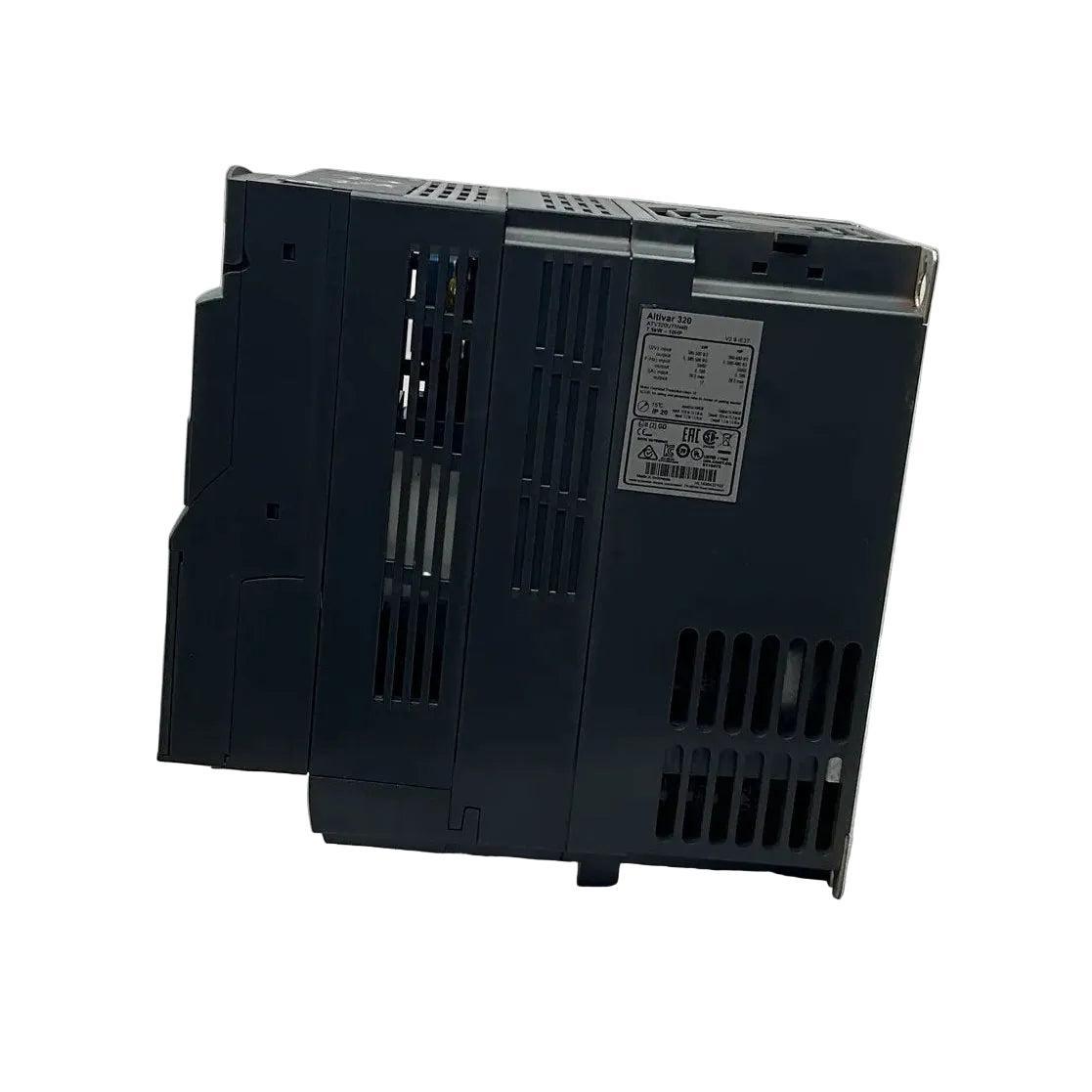

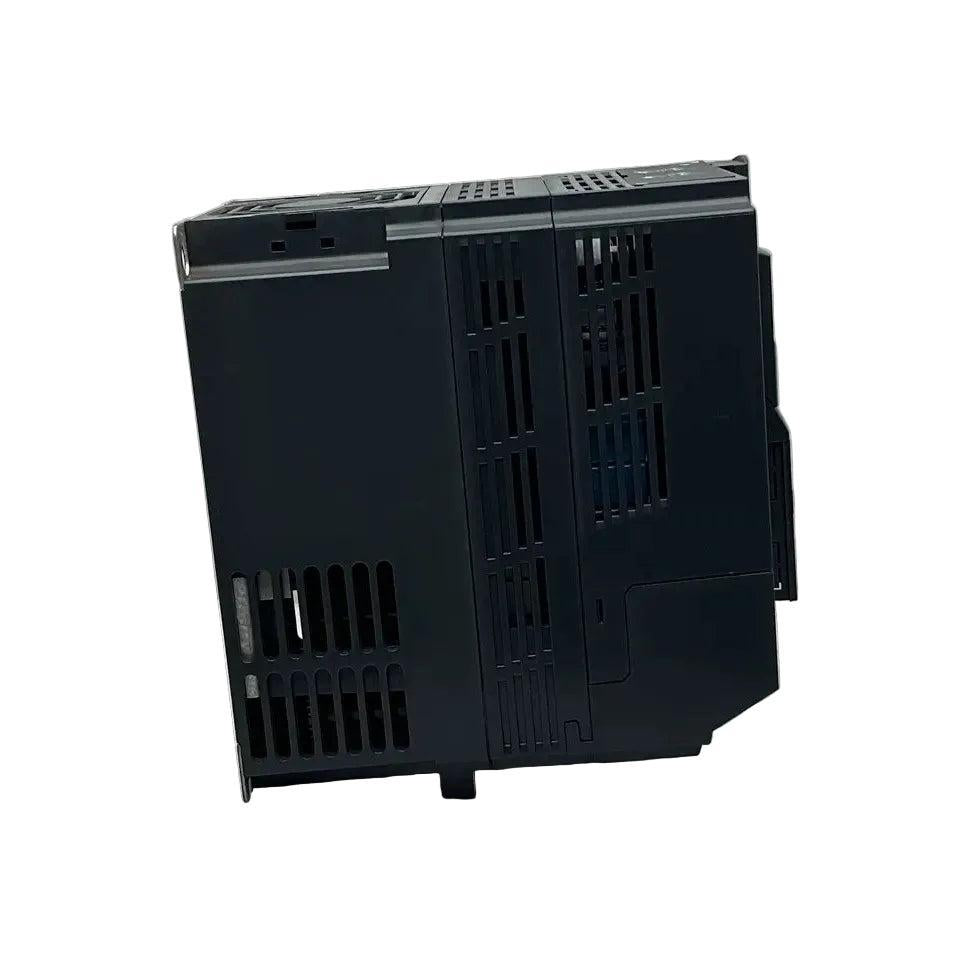

Schneider Electric Altivar 320 Frequency Inverter - 7.5kW

Schneider Electric Altivar 320 Frequency Inverter - 7.5kW

€369,05incl. VAT
€305,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSchneider Electric
ModelAltivar Machine 320
TypeFrequency Inverter (Book Format)
Part numberATV320U75N4B

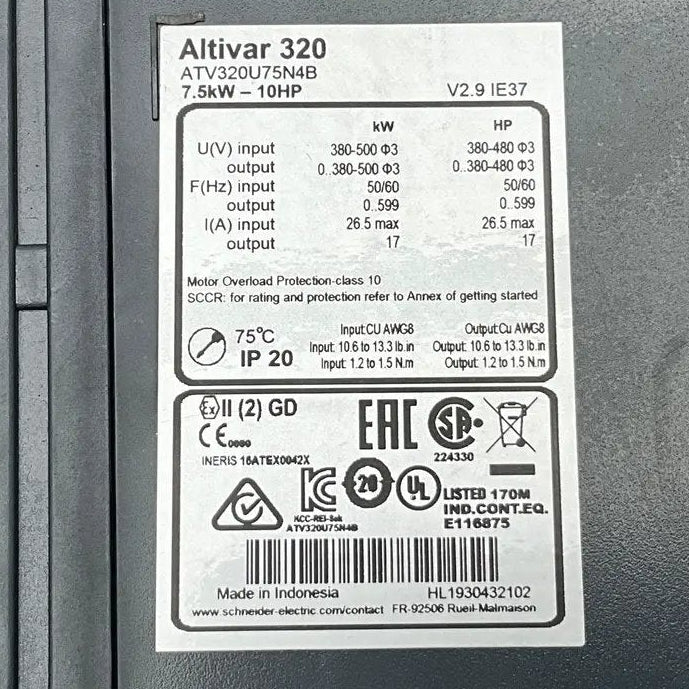

Technical specs
Recommended Motor Power7.5 kW (10 HP) for heavy duty
Input3-phase 380–500 V AC, 50/60 Hz
Output3-phase 0..380–500 V AC
Nominal Output Current17.0 A AC
Continuous Overload Current25.5 A AC (150% for 60 seconds)
Output Frequency0.......599 Hz
Control MethodsVoltage Vector Control (VVC+), Energy saving ratio, Vector control without sensor, V/f ratio (2 or 5 points)
Integrated Safety FunctionsSafe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Maximum Speed (SMS), Guard Door Locking (GDL) according to SIL 3 / PL e
Communication ProtocolsModbus Serial, CANopen integrated standard
EMC FilterIntegrated Class C2 EMC filter
Enclosure RatingIP20 / UL Type 1
Weight4.5 kg
Dimensions230 x 150 x 250 mm
Country of originIndonesia
HS Code8504.40.90
