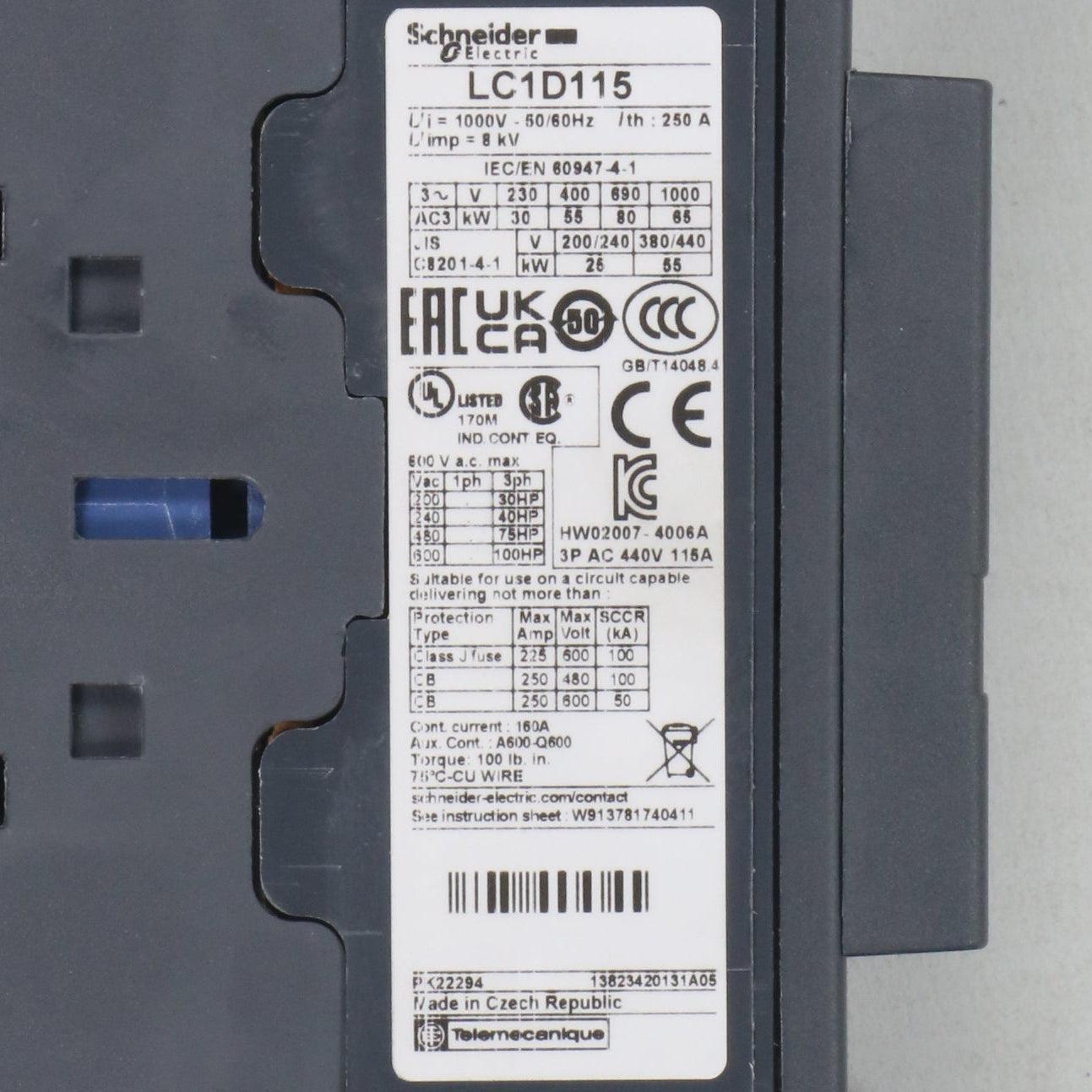

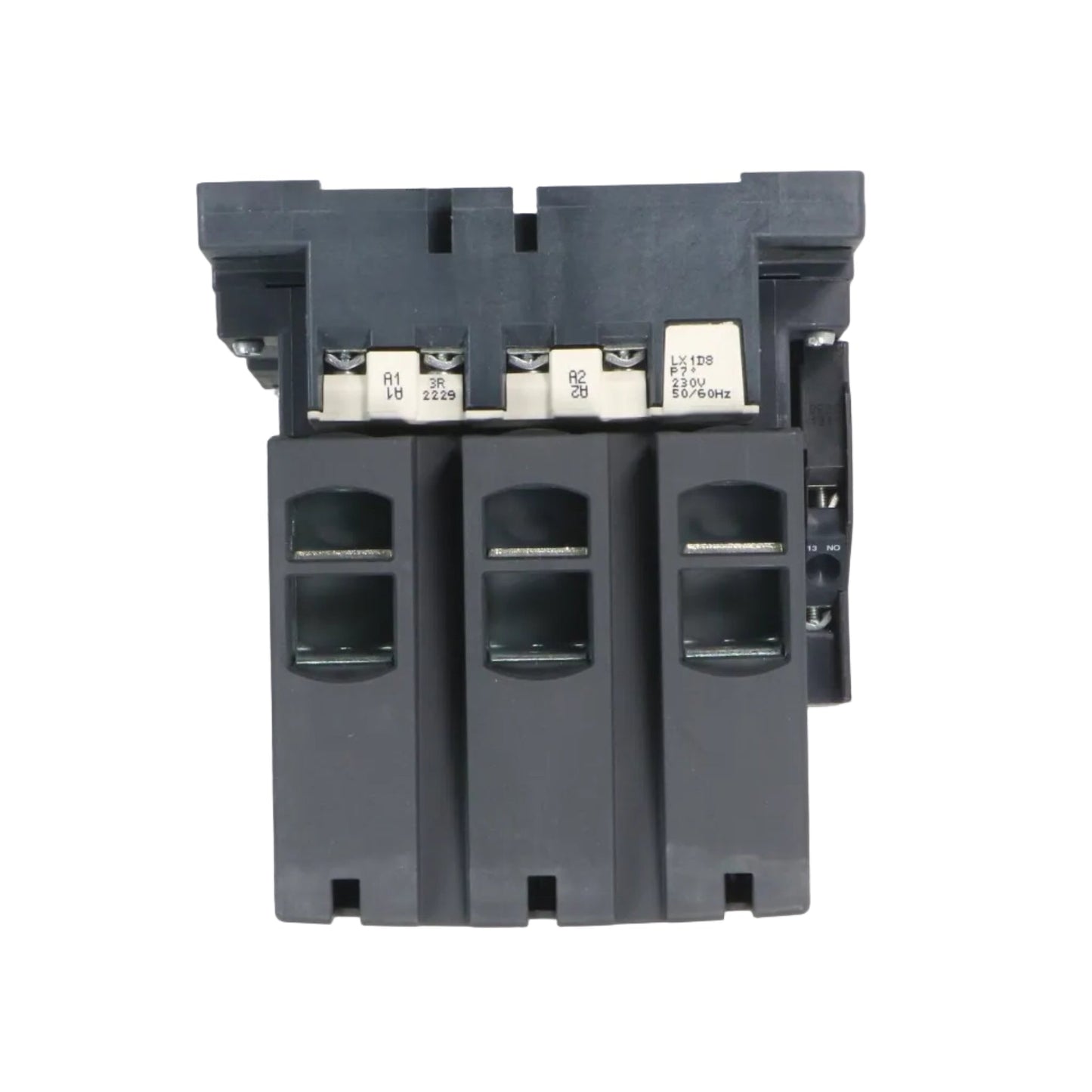

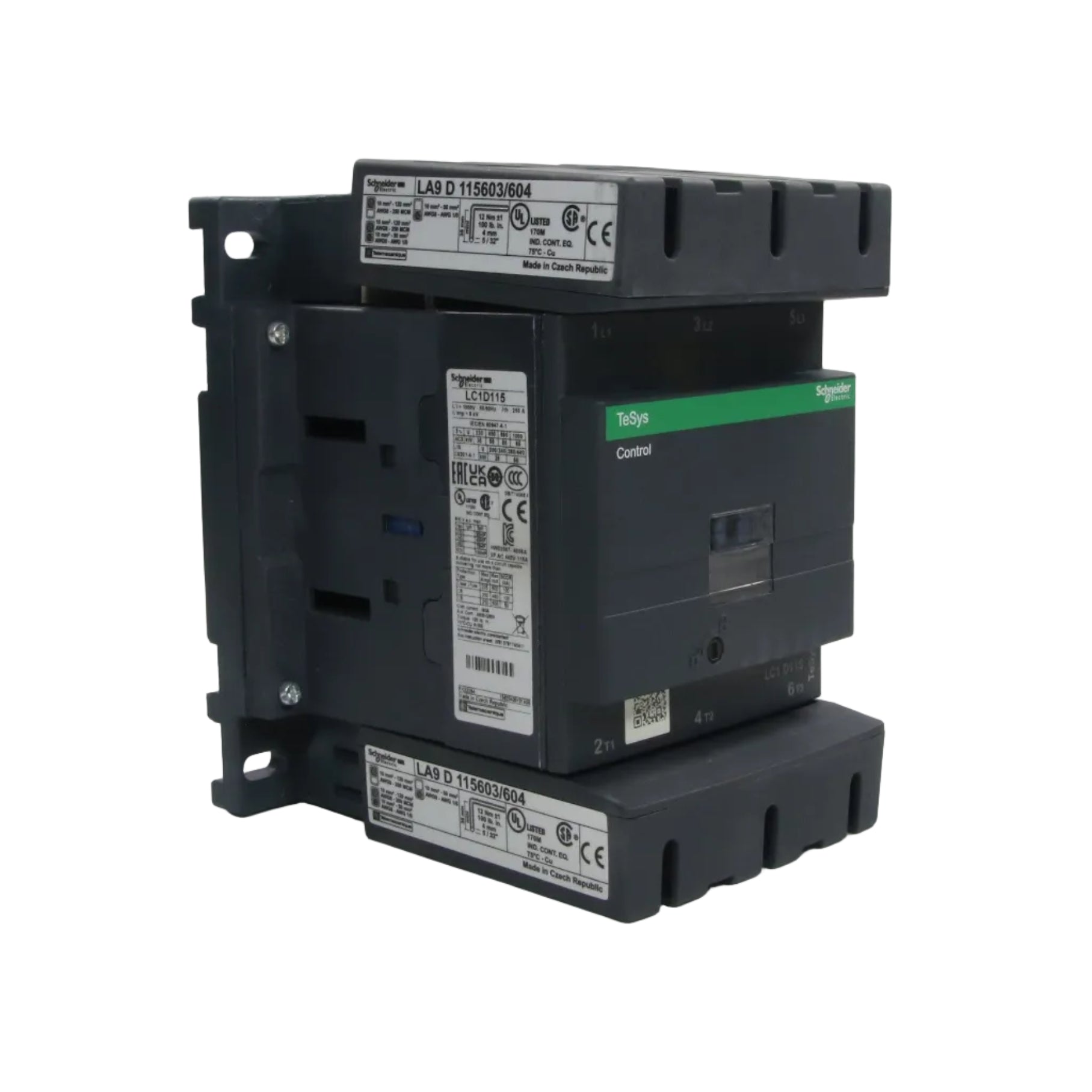

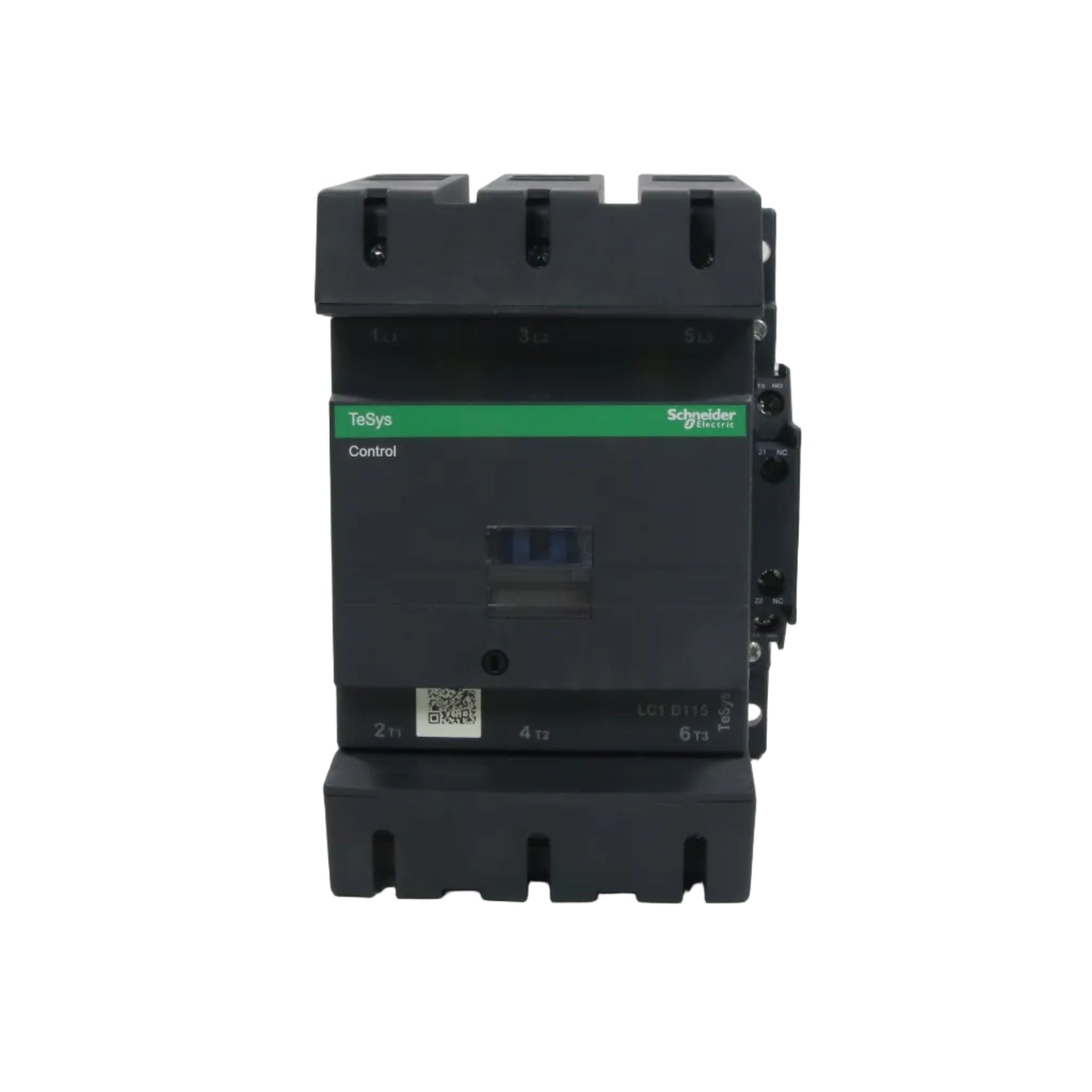

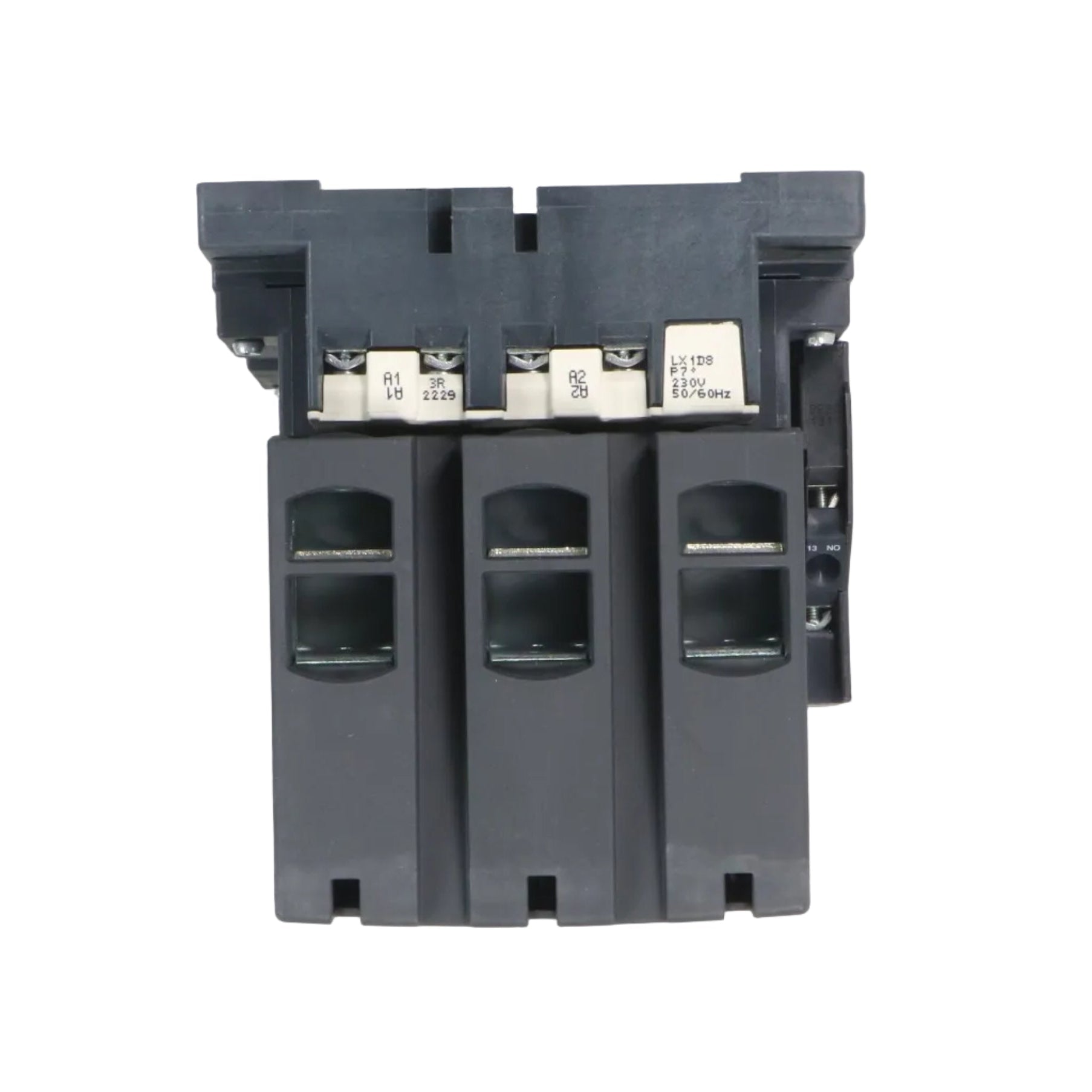

Schneider Electric LC1 D115P7 Contactor

- Brand: Schneider Electric
- Model: LC1D115P7
- Type: Contactor
- All tech specs:
  - Series: TeSys D
  - Poles: 3-pole
  - Rated Operational Voltage (Ue): 690 V AC (50/60 Hz)
  - Rated Operational Current (Ie):
    - AC-3 (motor load): 115 A at 400 V
    - AC-1 (resistive load): 200 A at 400 V
  - Rated Power (AC-3): 55 kW at 400 V, 59 kW at 440 V, 75 kW at 500 V, 90 kW at 690 V
  - Coil Voltage: 230 V AC, 50/60 Hz
  - Coil Consumption: 140 VA (pickup), 13 VA (holding)
  - Control Circuit Voltage: 230 V AC

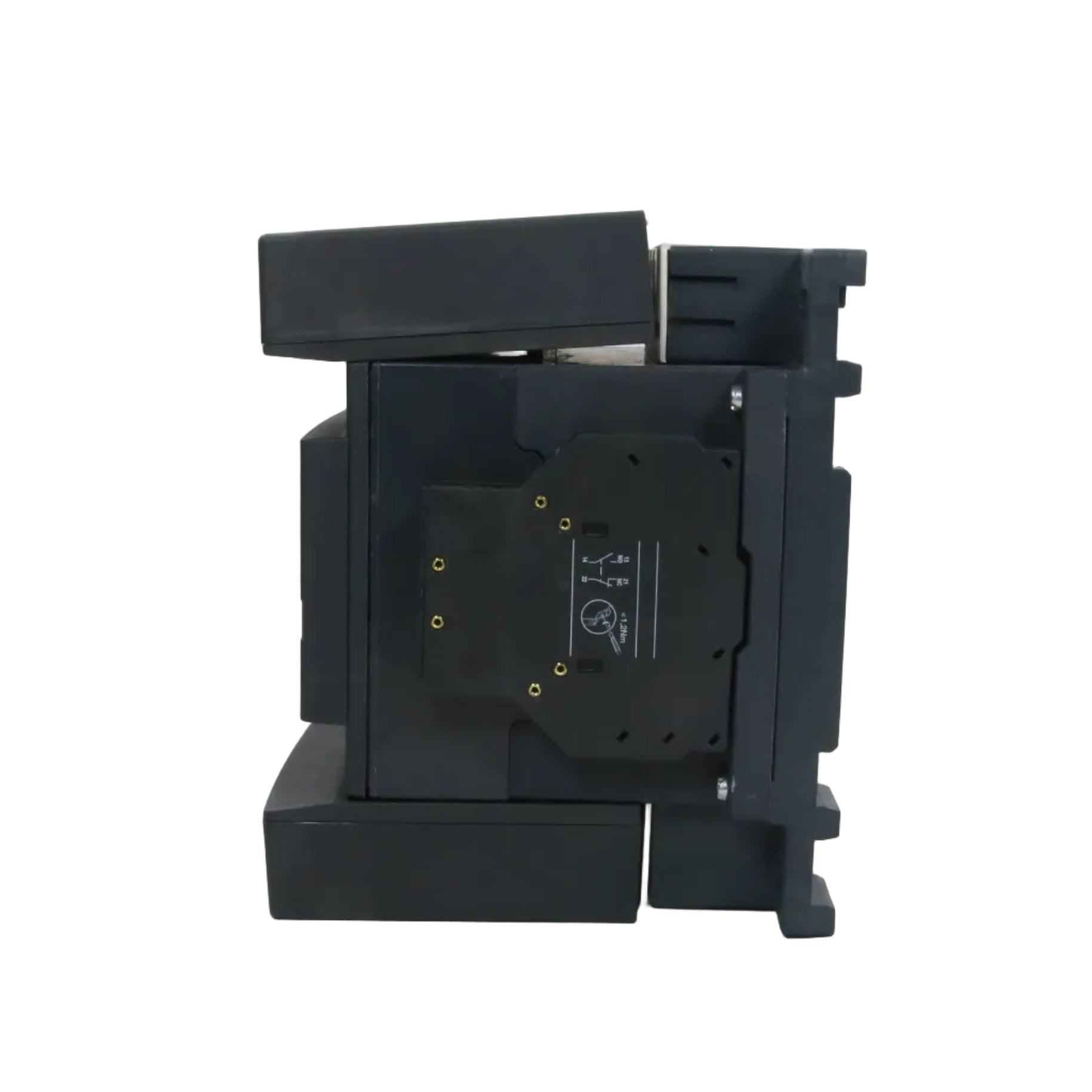

  - Auxiliary Contacts: 1 NO + 1 NC (integrated)
  - Contact Material: Silver alloy
  - Mechanical Life: 15 million cycles
  - Electrical Life (AC-3): 1.5 million cycles at 115 A
  - Switching Frequency: Up to 1200 cycles/hour
  - Short-Circuit Withstand: 10 kA (with fuses)
  - Operating Temperature: -25°C to +60°C
  - Storage Temperature: -60°C to +80°C
  - Protection Rating: IP20 (terminals)

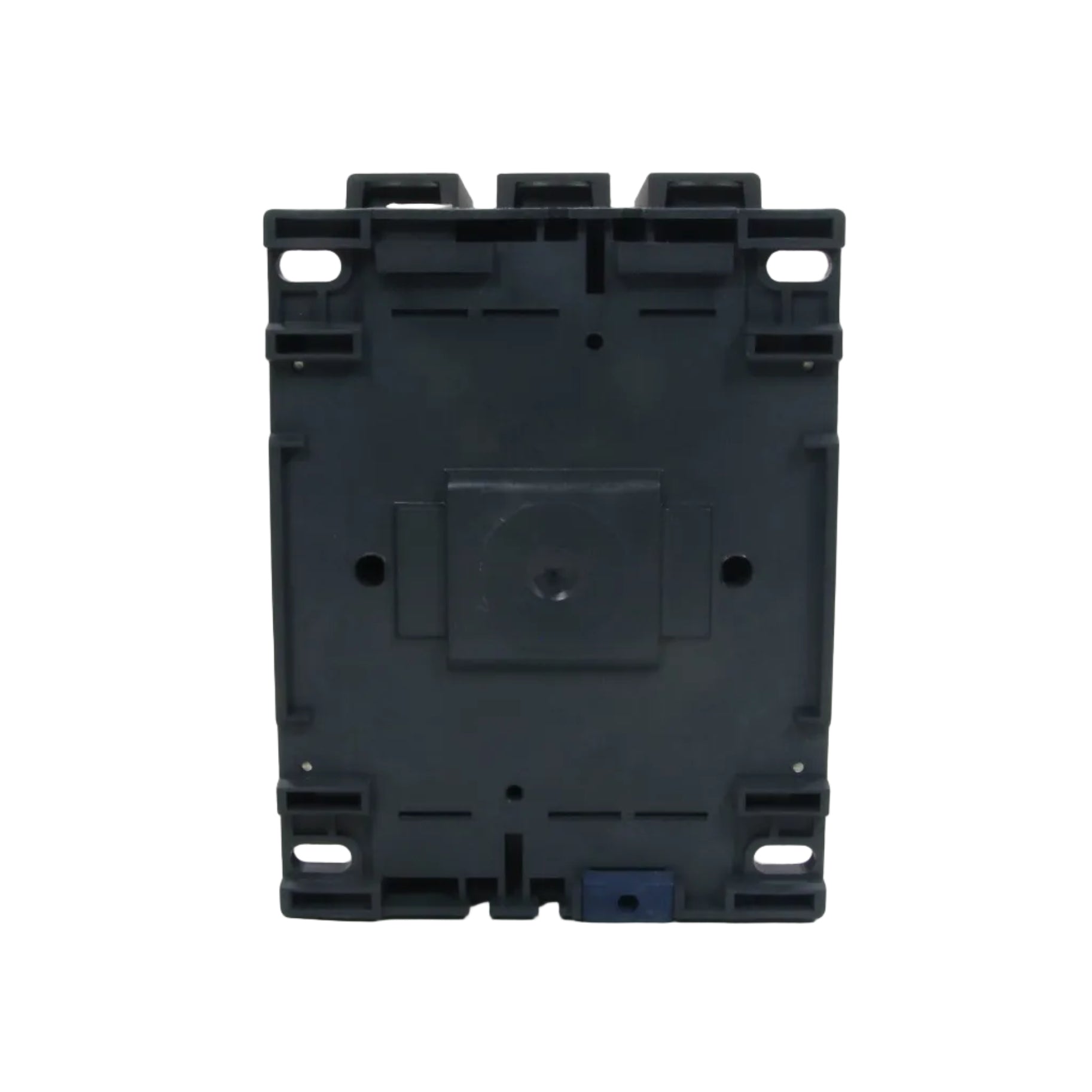

  - Mounting: Screw mounting
  - Standards: IEC 60947-4-1, UL, CSA, CCC, EAC, Marine approvals
  - Features: Mirror contacts (IEC 60947-4-1), positive opening, high withstand voltage, wide coil tolerance (±30%), easy coil replacement

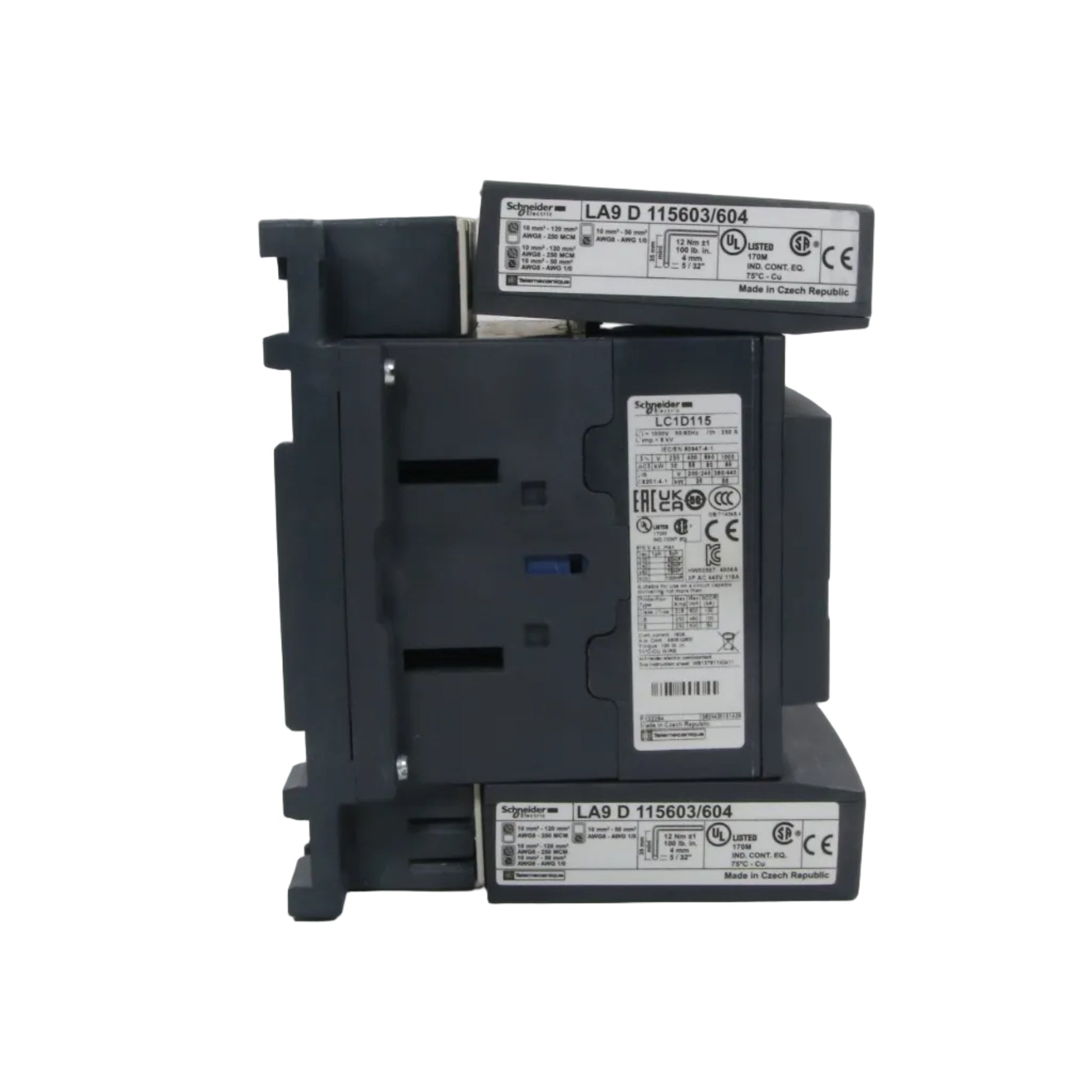

  - Screw clamp terminal blocks LA9 D 115603/604 X 2

- Discontinued
- Dimensions: 140 x 120 x 160 mm
- Weight: 2.5 kg
- Country of origin: Czechia
- HS code: 853649
