Schneider Electric

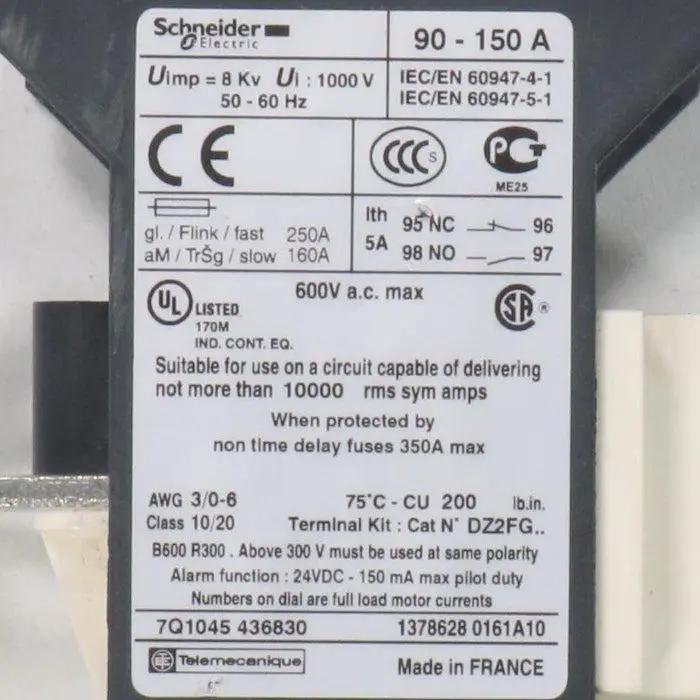

Schneider Electric LR9 D 69 Electronic Thermal Overload Relay

Schneider Electric LR9 D 69 Electronic Thermal Overload Relay

€211,75incl. VAT
€175,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSchneider Electric (Merlin Gerin / TeSys)
ModelLR9 D 69
TypeElectronic Thermal Overload Relay
Part numberLR9 D 69
Technical specifications
Setting range Ir90...150 A
Tripping classSelectable Class 10 or Class 20
Output contacts1 NO (95-96) + 1 NC (97-98) for tripping; 1 NO alarm contact (103-104)
Tripping timeClass 10: 4 s ±20% at 7.2 × Ir; Class 20: 6...20 s at 7.2 × Ir
Phase failure protectionYes
ResetManual
Reset buttonYes (Blue)
Stop buttonYes (Red)
Additional featuresDifferential or non-differential version; compensated for ambient temperature; trip indicator; sealing facility for setting; suitable for balanced or unbalanced loads; high reliability for motor protection
StandardsIEC 60947-4-1, EN 60947-4-1; UL 508; CE marked
Weight700 g
Dimensions115 x 120 x 70 mm
Country of originFrance
HS code8536.49
