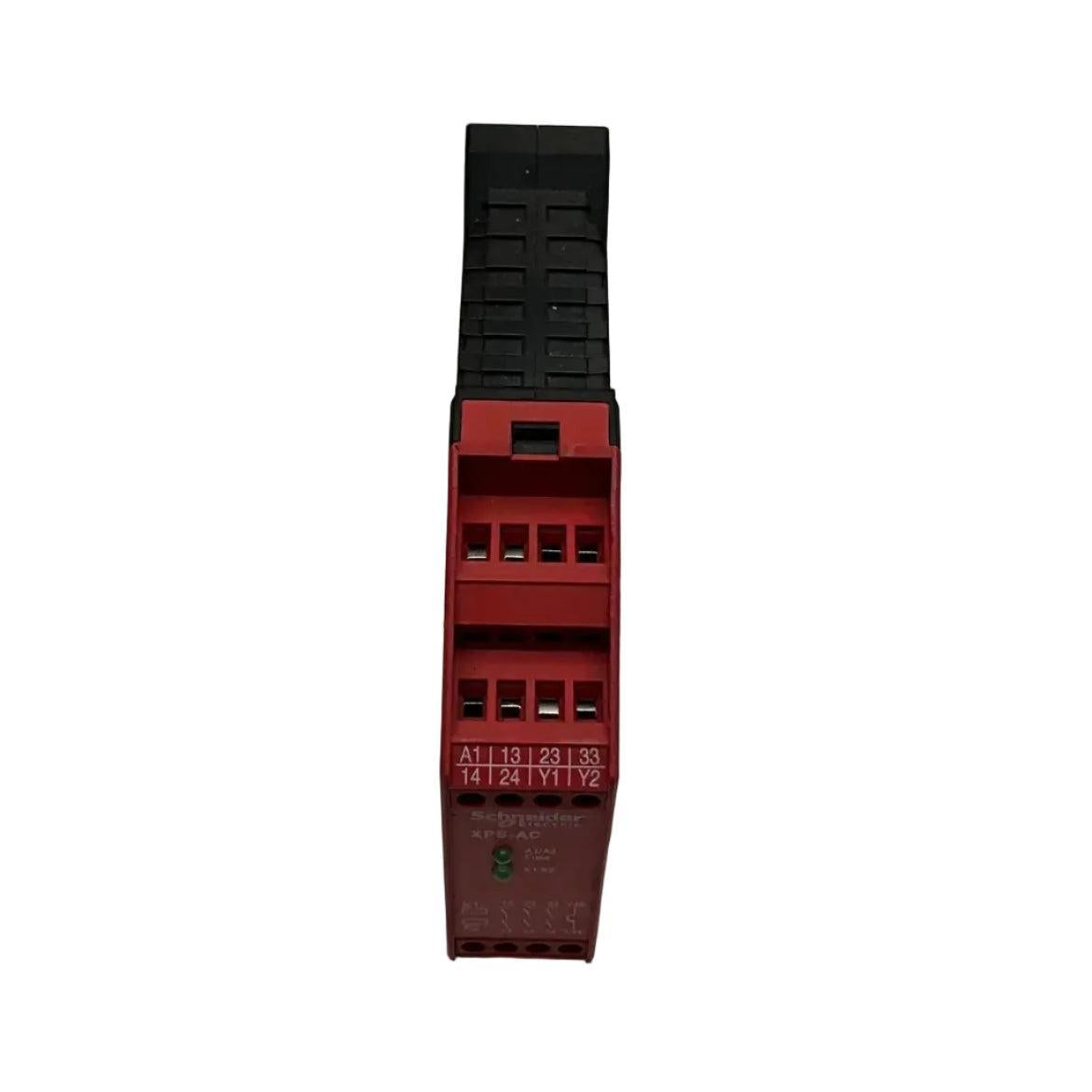

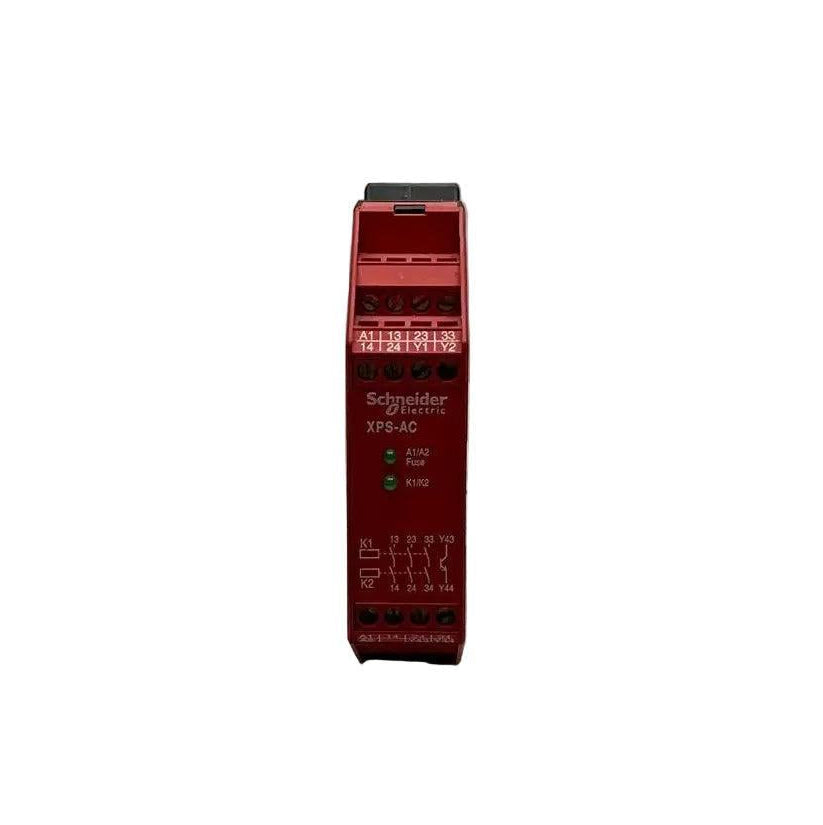

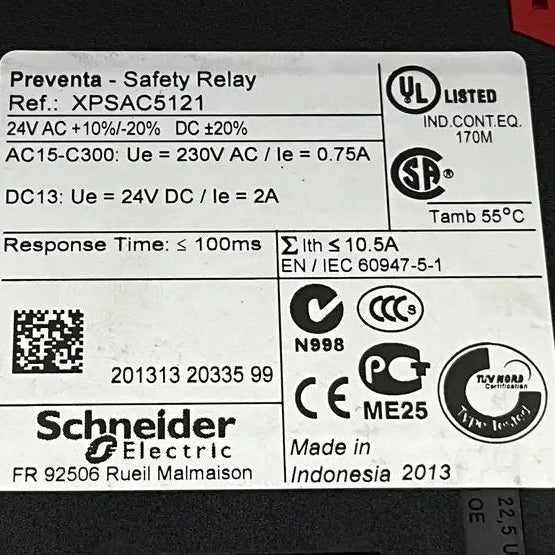

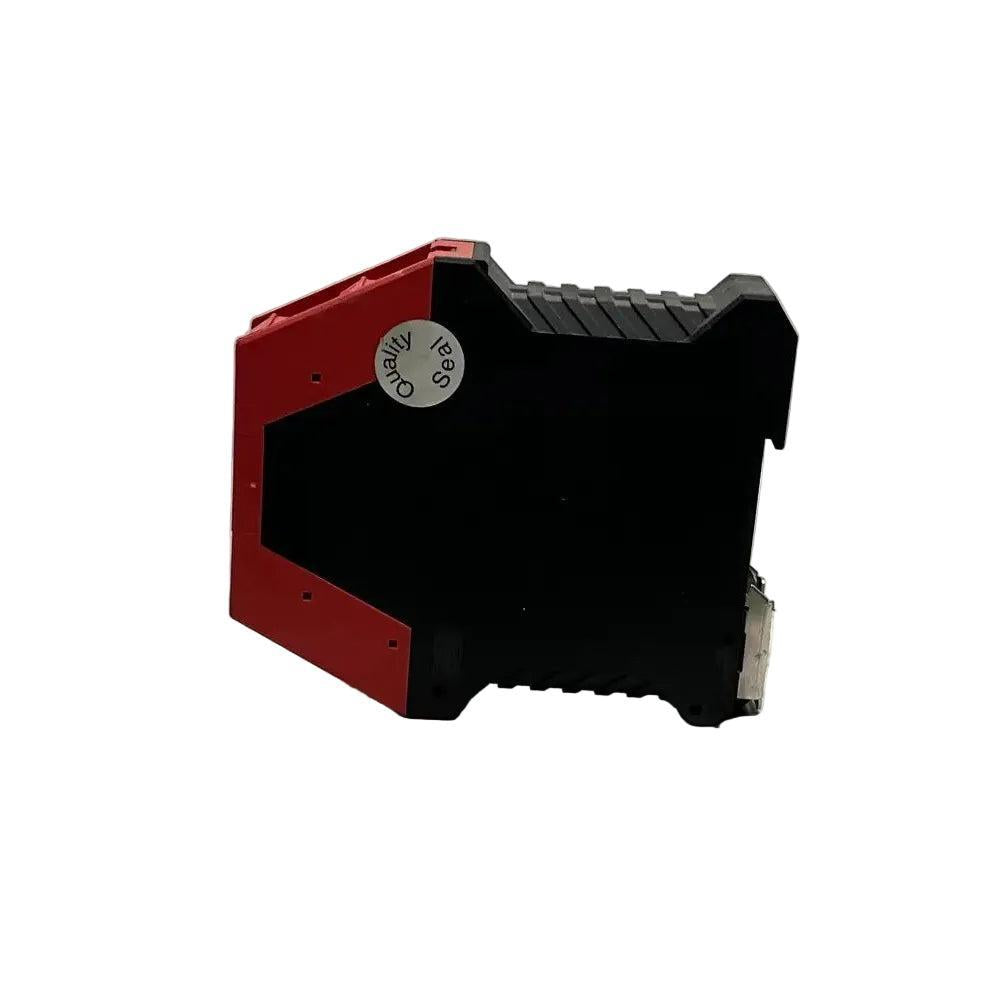

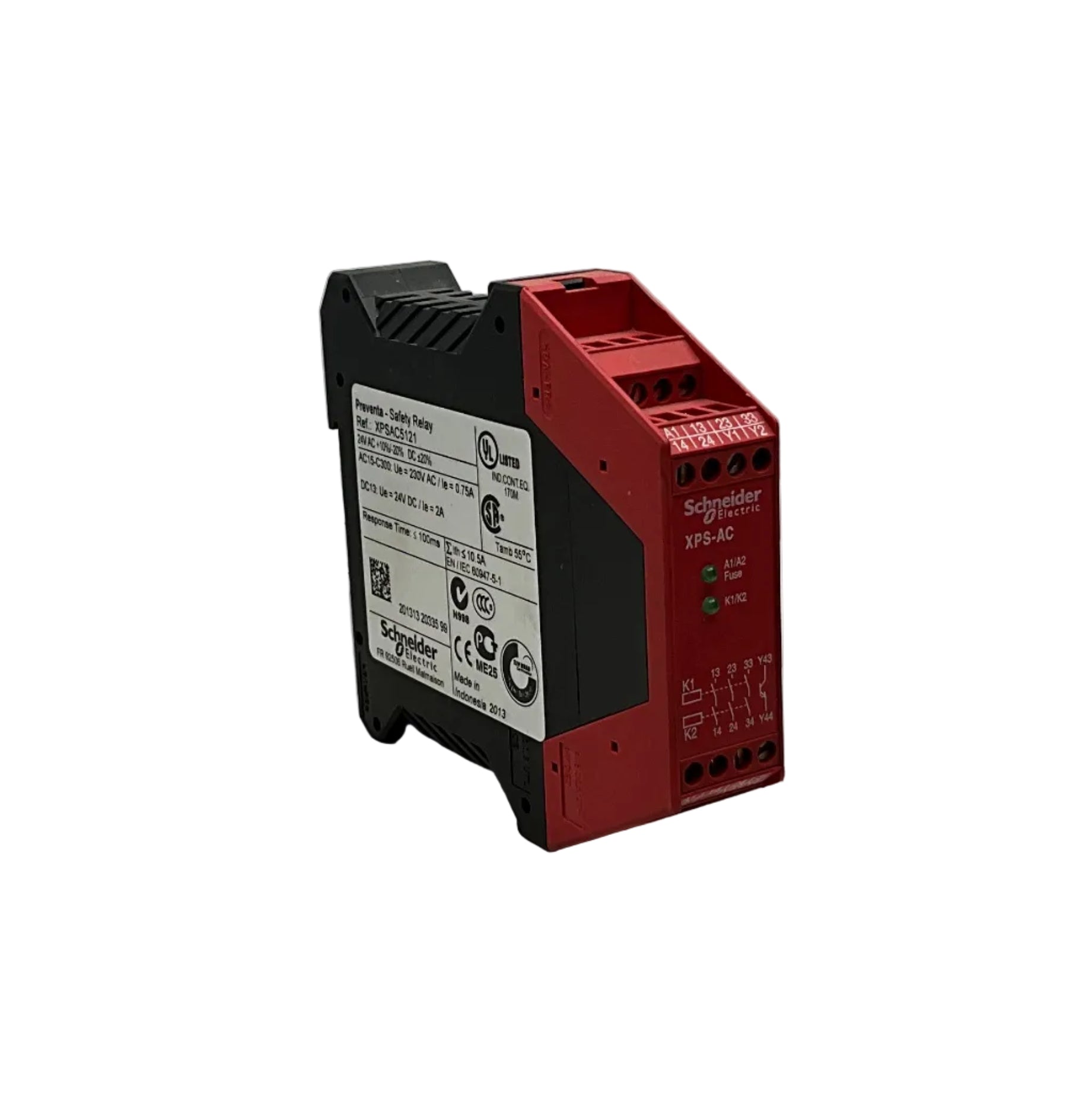

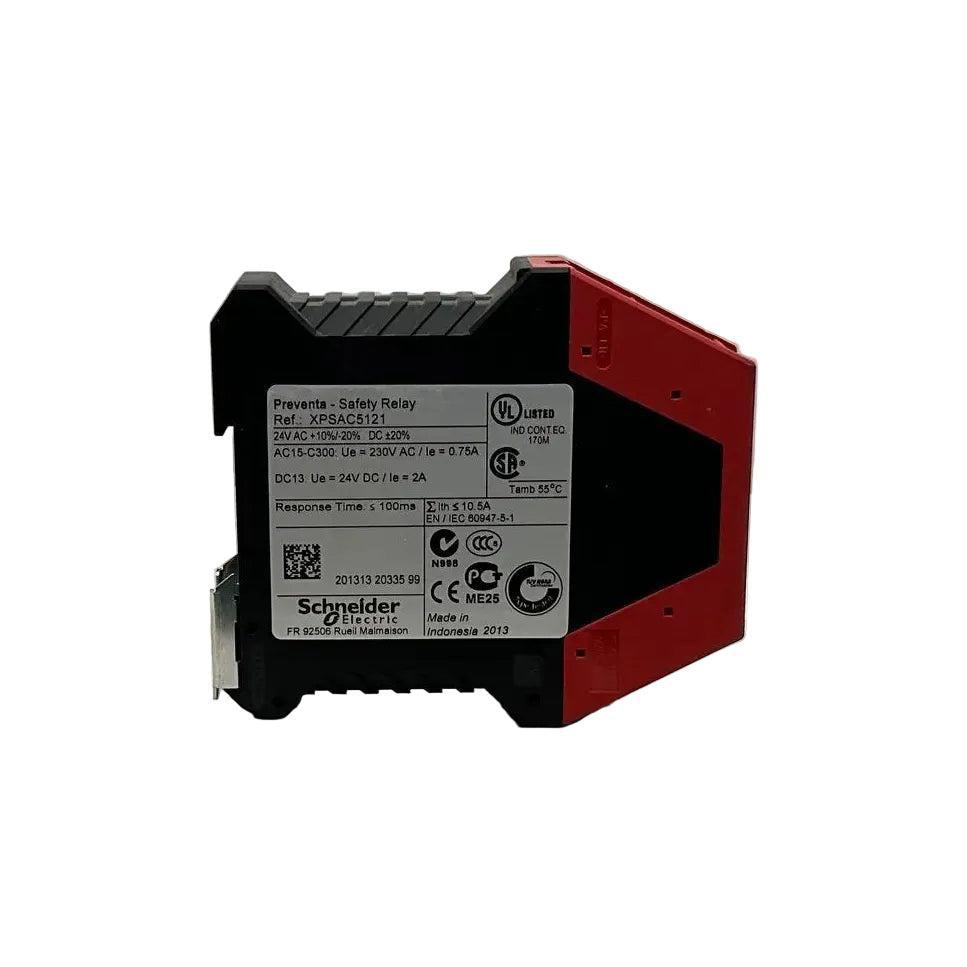

Schneider Electric Preventa XPSAC5121 Safety Relay

- Brand: Schneider Electric

- Model: Preventa XPSAC5121

- Type: Safety Relay / Emergency Stop Safety Module

- Part Number: XPSAC5121

- Technical Specifications:

- Preventa XPS safety automation series

- Safety module for emergency stop and safety switch monitoring

- Supply voltage: 24 VAC/DC

- Safety category: Category 4 according to EN ISO 13849-1

- Performance Level: PL e

- Safety Integrity Level: SILCL 3 according to EN/IEC 62061

- Safety reliability: DC > 99%

- MTTFd: 210.4 years

- PFHd: 3.56 × 10⁻⁹ 1/h

- Start function: Unmonitored start

- Safety outputs: 3 NO safety relay outputs (3PST-NO)

- Auxiliary outputs: 1 transistor status output

- Output thermal current: 6 A per relay

- Conventional thermal current (Ith): 10.5 A

- Breaking capacity: 1.5 A at 24 VDC (DC-13)

- Rated insulation voltage (Ui): 300 V

- Rated impulse withstand voltage (Uimp): 4 kV

- Response time: ≤ 100 ms

- Connection type: Captive screw terminals

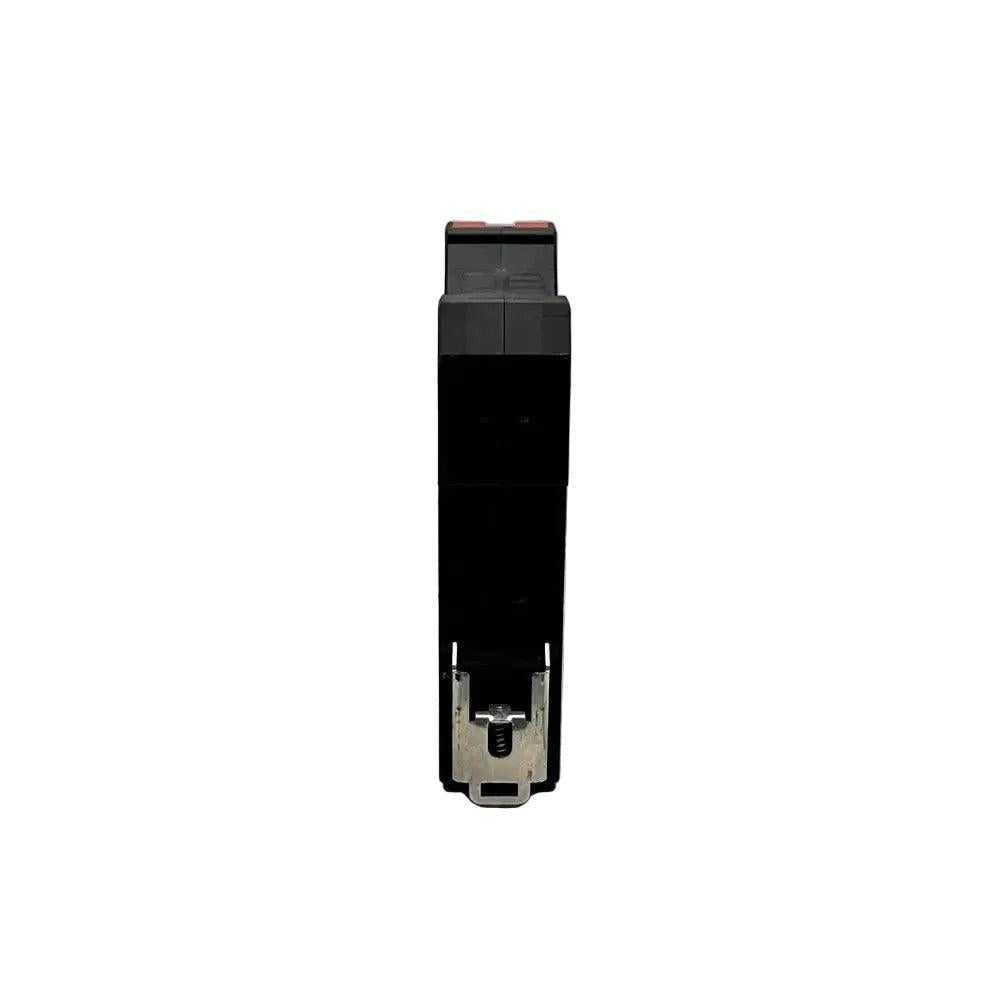

- Mounting: DIN rail

- Status indication: Integrated LED indicators

- Protection class: IP20

- Operating temperature: -10°C to +55°C

- Storage temperature: -25°C to +85°C

- Standards: EN ISO 13849-1, EN/IEC 62061, IEC 60947-5-1, EN/IEC 60204-1, EN ISO 13850

Weight: 200 g

Dimensions: 22.5 × 99 × 114 mm

Country of Origin: Indonesia

HS Code: 8536.49
