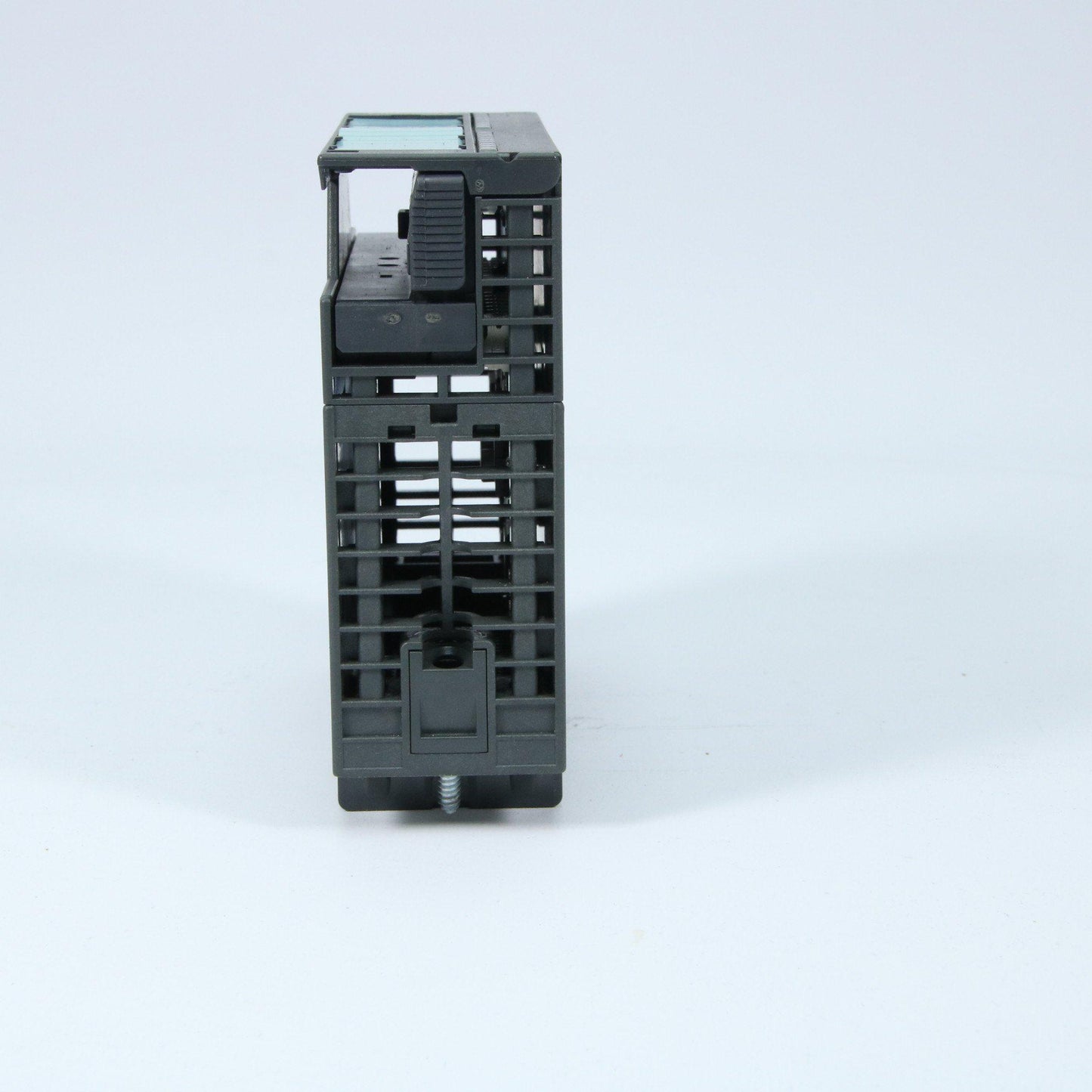

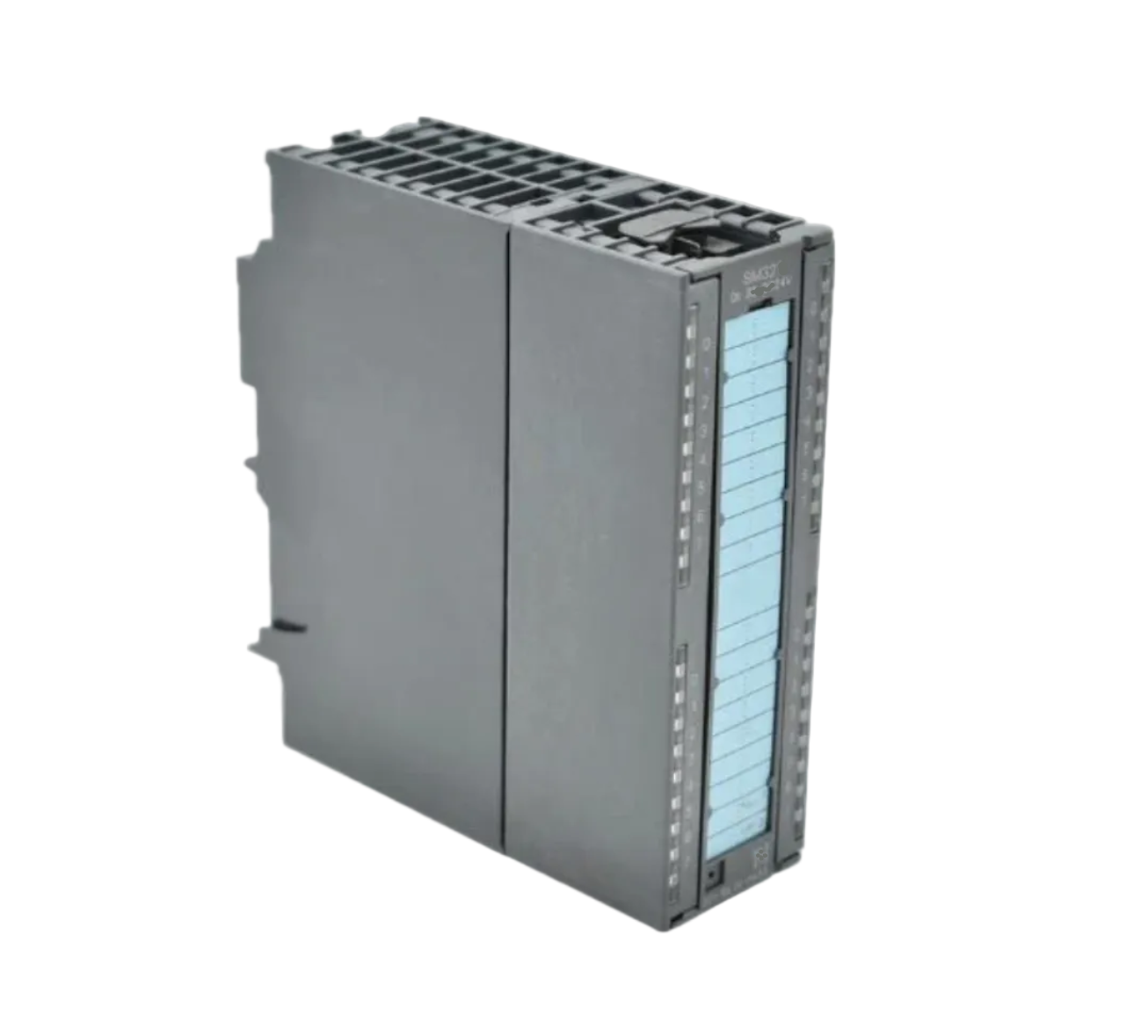

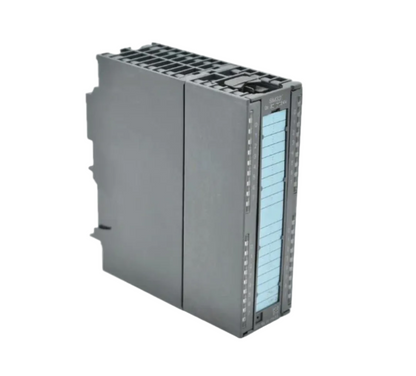

Siemens 6ES7 322-1BH01-0AA0 Digital Output Module
Siemens 6ES7 322-1BH01-0AA0 Digital Output Module
Stock: 28
Couldn't load pickup availability
Product description and type information
- Brand: Siemens
- Model: SIMATIC S7-300 SM 322
- Type: Digital Output Module
- Part number: 6ES7 322-1BH01-0AA0
- Technical specs:
- Series: SIMATIC S7-300
- Module type: SM 322 Digital Output Module
- Number of outputs: 16 digital outputs
- Rated output voltage: 24 VDC
- Rated output current: 0.5 A per channel
- Outputs isolated in groups of 8
- Galvanic isolation between outputs and backplane bus
- Isolation voltage: 500 VDC
- Output current range: 5 mA to 0.6 A
- Residual current (OFF state): max. 0.5 mA
- Output delay:
- 0 → 1: max. 100 µs
- 1 → 0: max. 500 µs
- Electronic short-circuit protection
- Load resistance: 48 Ω to 4 kΩ
- Maximum lamp load: 5 W
- Switching frequency:
- Resistive load: max. 100 Hz
- Lamp load: max. 10 Hz
- Front connector: 20-pin
- Status indication: Green LED per output channel
- Suitable for solenoid valves, DC contactors and indicator lamps
- Mounting: S7-300 rack / ET200M system
Weight: 250 g
Dimensions: 40 x 125 x 120 mm
Country of origin: Germany
HS Code: 8538.90
