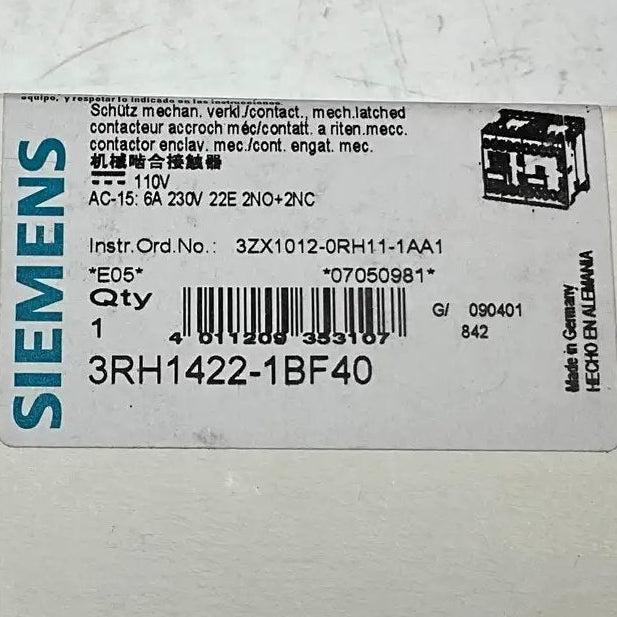

Siemens 3RH1422-1BF40 Contactor Relay - Latched

- Brand: Siemens

- Model: SIRIUS 3RH1422-1BF40

- Type: Contactor Relay - Latched / Auxiliary Contactor Relay

- Part Number: 3RH1422-1BF40

- Technical Specifications:

- SIRIUS 3RH1 series latching contactor relay

- 4-pole industrial auxiliary contactor

- Contact configuration: 2 NO (Normally Open), 2 NC (Normally Closed)

- Latching function: Mechanically latched operation

- Frame size: S00

- Coil voltage: 110 VDC

- Voltage type: DC-operated coil

- Rated insulation voltage (Ui): 690 V

- Rated impulse withstand voltage (Uimp): 6 kV

- Rated operational current:

- AC-15: 10 A at 230 VAC, 3 A at 400 VAC, 2 A at 500 VAC, 1 A at 690 VAC

- DC-12:, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC

- Mechanical operating cycles: 5 million operations

- Auxiliary switch compatibility: Yes

- Connection type: Screw terminals

- Mounting: DIN rail mounting, Panel mounting

- Protection class: IP20 (front)

- Degree of pollution: 3

- Operating temperature: -25°C to +60°C

- Shock resistance: 10 g / 5 ms, 5 g / 10 ms

- Standards: IEC 60947, DIN EN 61346-2, DIN EN 81346-2

Weight: 550 g

Dimensions: 72 × 94 × 77 mm

Country of Origin: Germany

HS Code: 8536.49
