Siemens

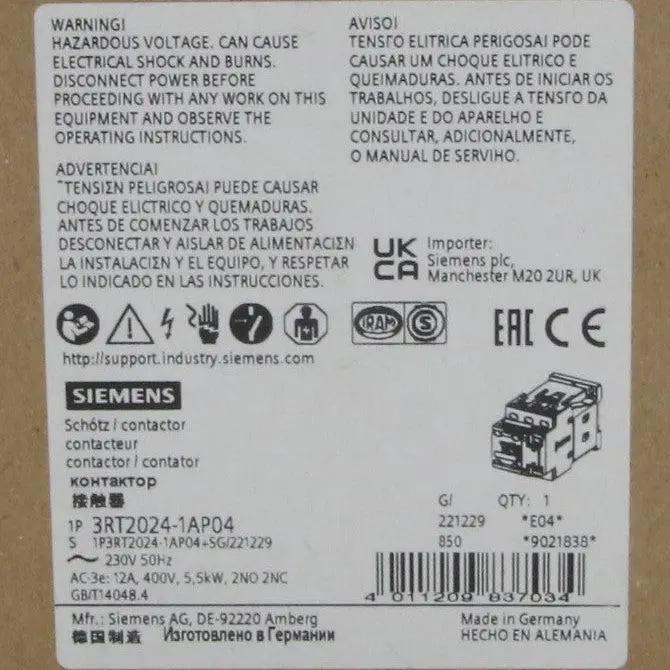

Siemens 3RT2024-1AP04 Power Contactor with Auxiliary Block

Siemens 3RT2024-1AP04 Power Contactor with Auxiliary Block

€62,92incl. VAT
€52,00 excl. VAT

Stock: 5

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSiemens
Models

3RT2024-1AP04 (SIRIUS 3RT2 power contactor)

3RH2911-1HA11 (SIRIUS 3RH2 auxiliary block)

TypePower Contactor with Auxiliary Block
Part numbers
Contactor3RT2024-1AP04
Auxiliary contact block3RH2911-1HA11
Technical specifications

3RT2024-1AP04 (Power Contactor)

Rated operational current Ie (AC-3 / 400 V): 12 A

Rated power (AC-3 / 400 V)5.5 kW
Rated operational voltage Ueup to 690 V AC (50/60 Hz)
Utilization categoryAC-3 (motor switching), AC-1 (resistive loads)
Number of main contacts3 NO (main poles)
Mechanical endurance10 million operations
MountingDIN rail or screw mounting (S0 size)

3RH2911-1HA11 (Auxiliary Contact Block)

TypeSnap-on auxiliary contact block for 3RT2 S0 contactors
Contacts1 NO + 1 NC
Rated current6 A (AC-15 / 230 V)
MountingFront snap-on
Combined Set
Complete assembly3RT2024-1AP04 + 3RH2911-1HA11 provides a 12 A / 5.5 kW motor contactor with 1 NO + 1 NC auxiliary contacts
Additional featuresHigh reliability, compact S0 size, easy wiring, vibration-resistant, suitable for frequent switching
StandardsIEC 60947-4-1, EN 60947-4-1; UL/CSA approved; CE marked
Weight500 g
Dimensions85 x 45 x 145 mm
Country of originGermany
HS code8536.49
