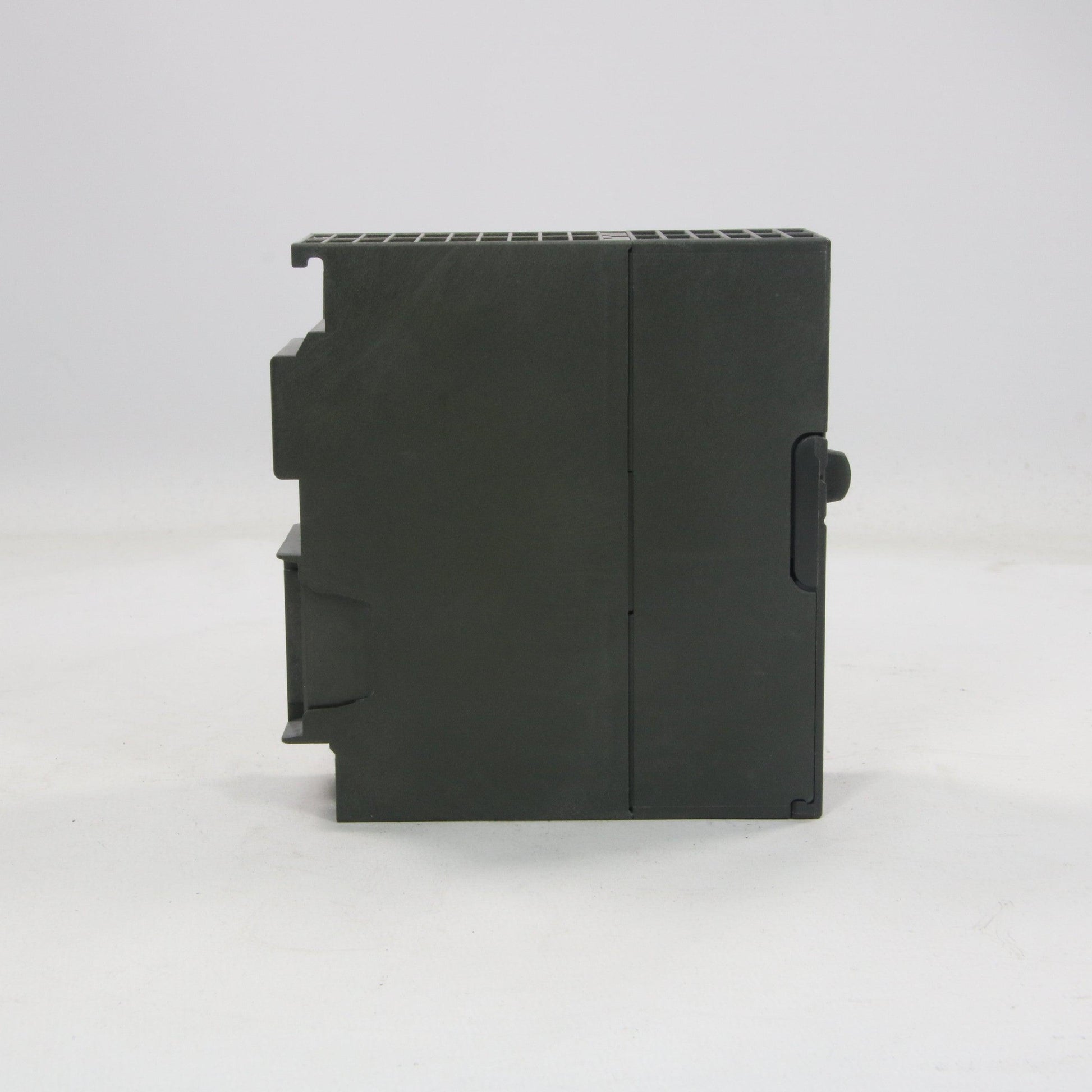

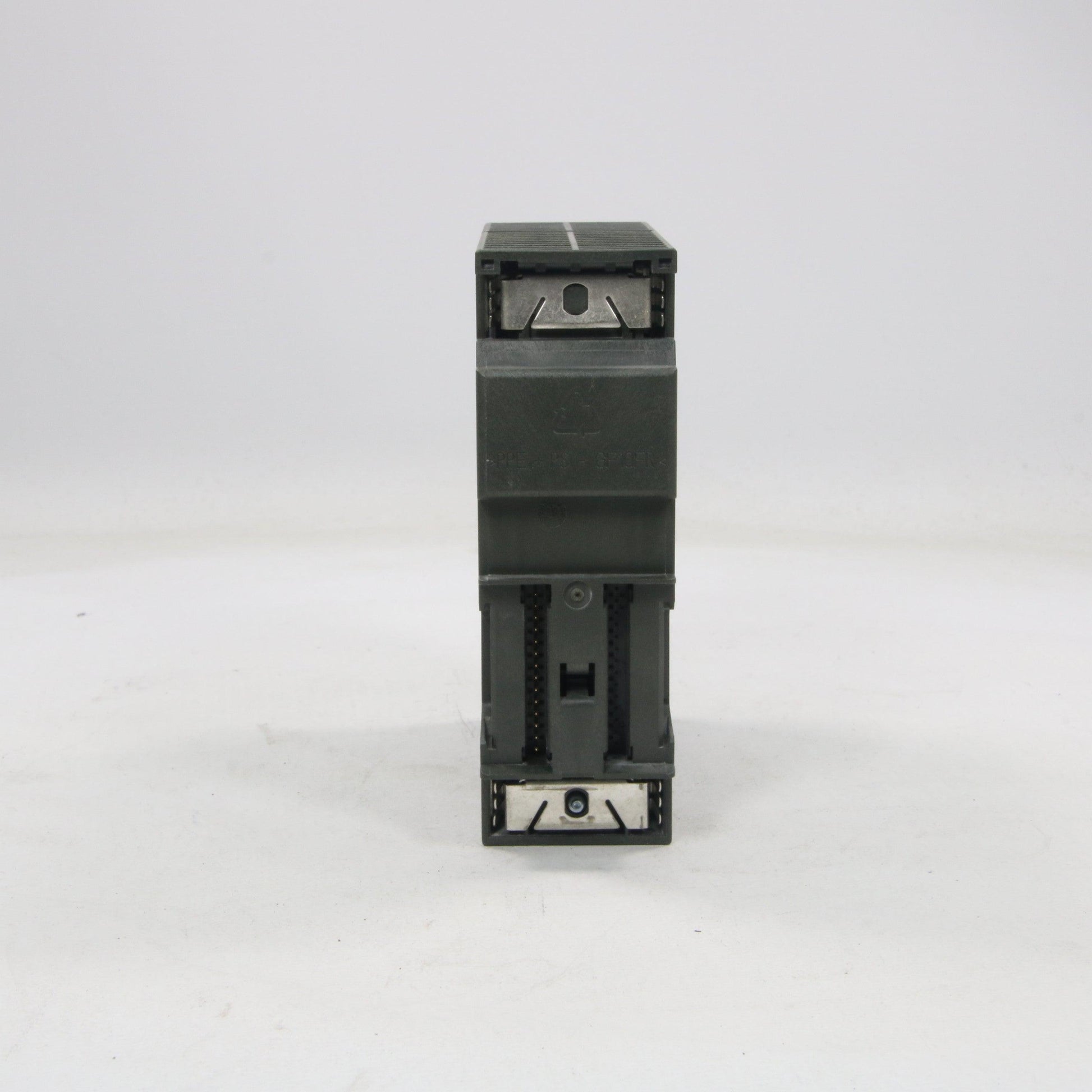

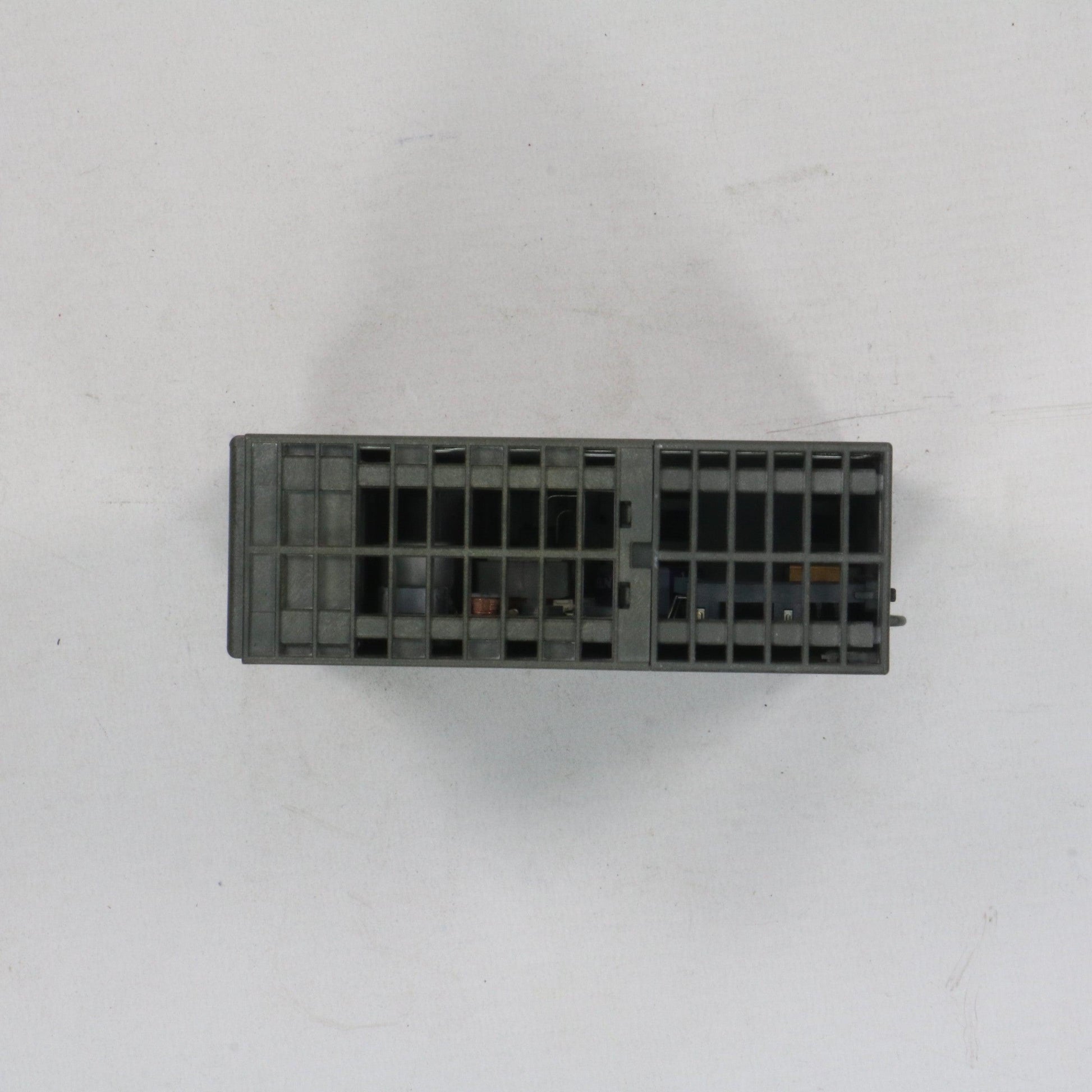

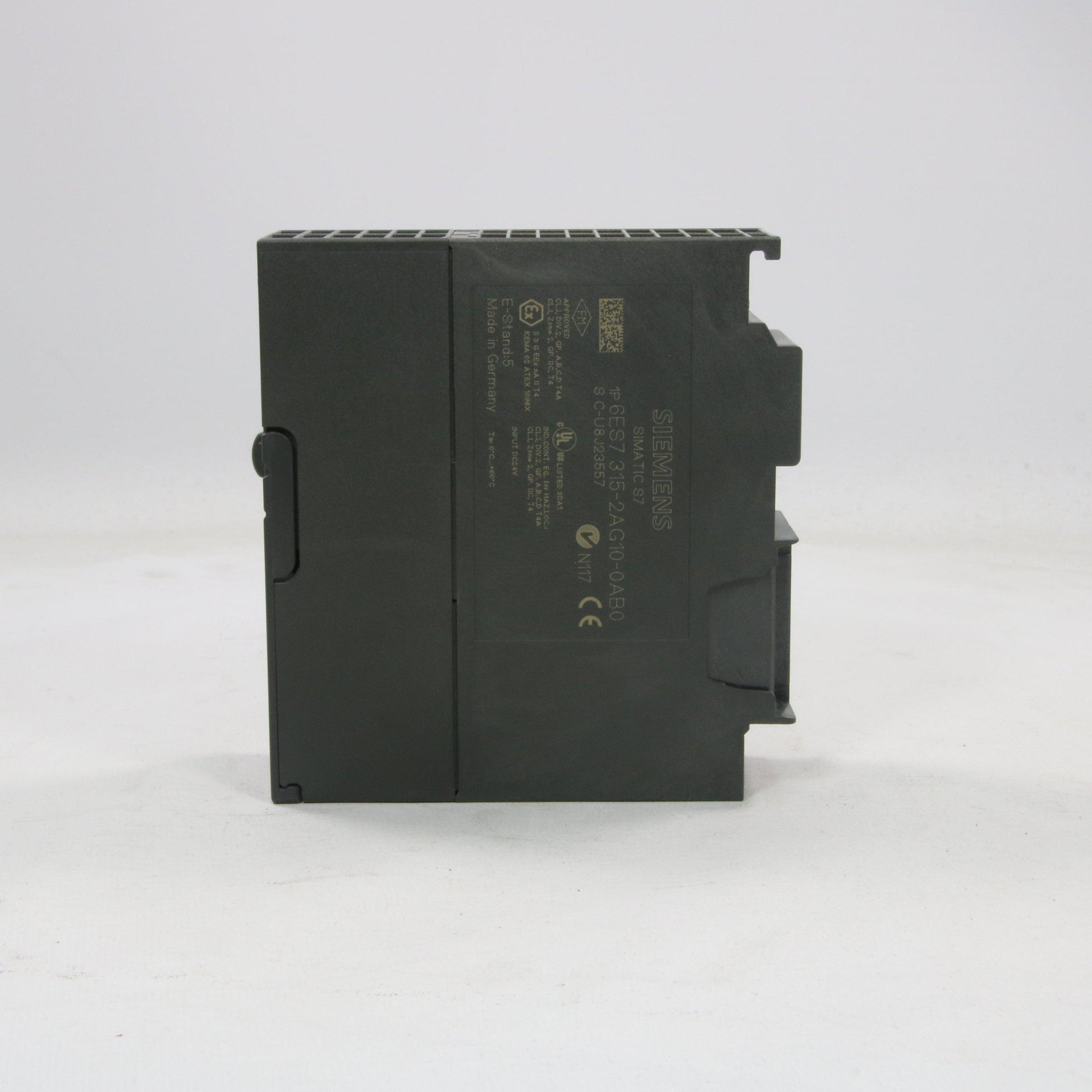

Siemens 6ES7 315-2AG10-0AB0 CPU Module

Siemens 6ES7 315-2AG10-0AB0 CPU Module

€302,50incl. VAT
€250,00 excl. VAT

Stock: 4
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSiemens
ModelSIMATIC S7-300 CPU 315-2 DP
TypeCentral Processing Unit Module with MPI and PROFIBUS DP Interfaces

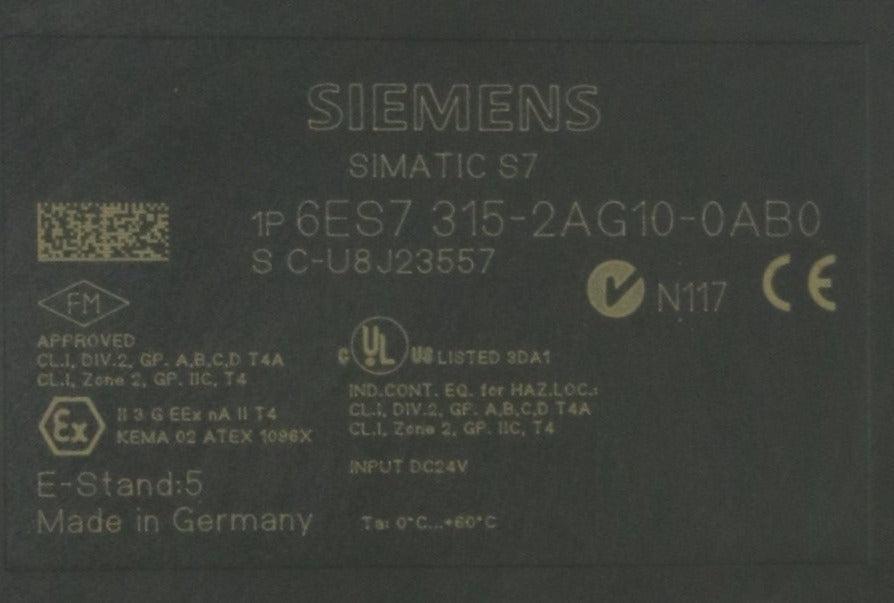

Part Number6ES7315-2AG10-0AB0
Technical Specs
Core ApplicationStandard central processing unit for medium-scale automation systems requiring high processing speed, distributed I/O integration via PROFIBUS DP, and flexible network structures.
Work Memory128 KB integrated work memory
Load MemoryRequires SIMATIC Micro Memory Card
Execution Processing Times
Bit operation0.1 µs
Word operation0.2 µs
Fixed-point math2.0 µs
Floating-point math3.0 µs
Integrated Communications Interfaces
1x RS-485 Interface (MPI)Multi-Point Interface supporting up to 187.5 kbit/s transmission rates for PG/OP communications, global data programming, and S7 communications.

1x RS-485 Interface (PROFIBUS DP): Master/Slave fieldbus interface supporting up to 12 Mbit/s for connecting distributed I/O stations and field devices.

Number of Addressable I/OUp to 1,024 digital inputs/outputs and up to 256 analog inputs/outputs.
Process Image Area128 bytes inputs / 128 bytes outputs.
Retentive Data MemoryBit memories, counters, and timers can be configured as retentive
System ClockReal-Time Clock (RTC) integrated with battery buffering capability.
Rated Supply Voltage24 V DC (Permissible range: 20.4 V to 28.8 V DC).
Power ConsumptionTyp. 2.5 W / Current consumption max. 0.8 A at 24 V DC.
Backplane Bus Current OutputMax. 1.2 A at 5 V DC to power connected I/O expansion modules.

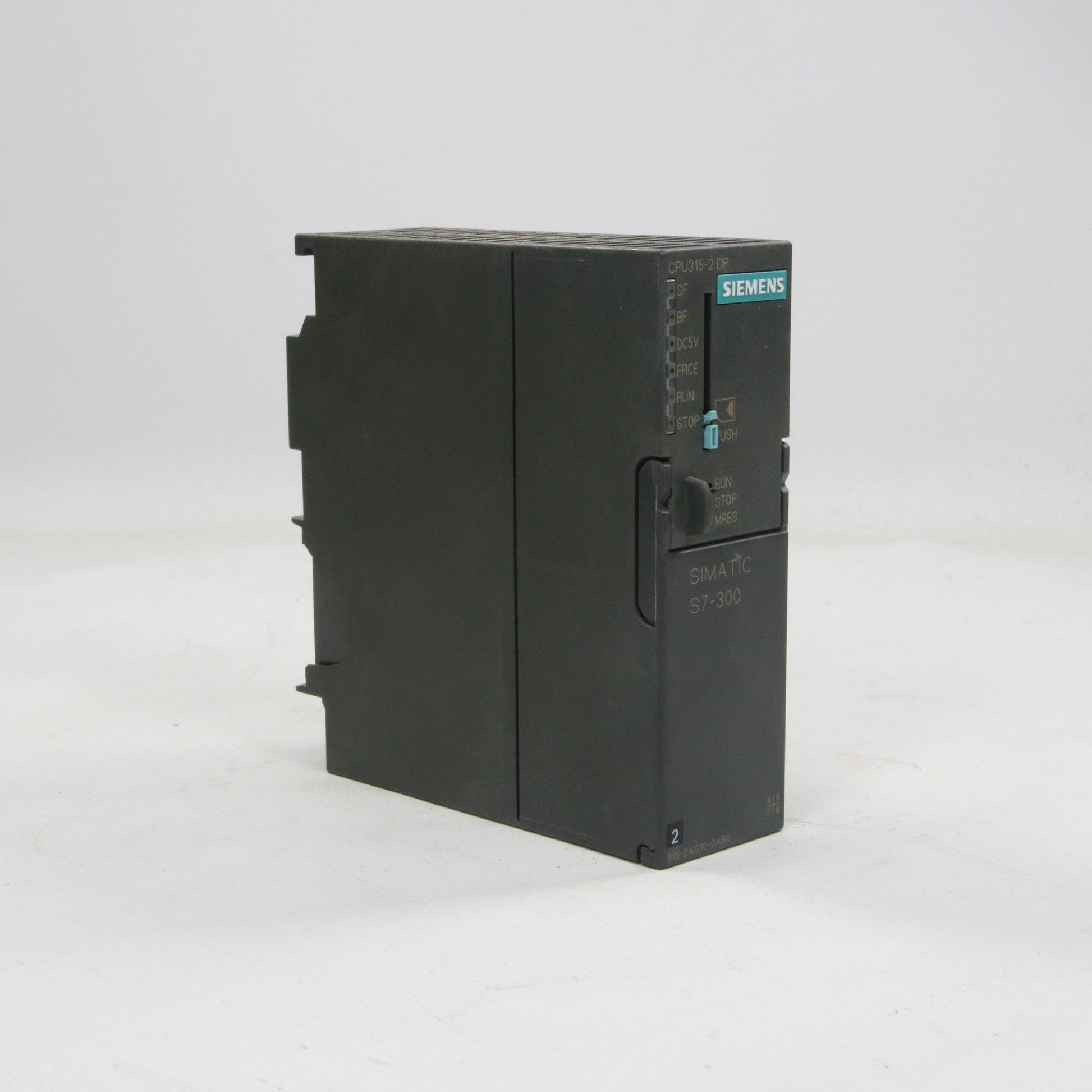

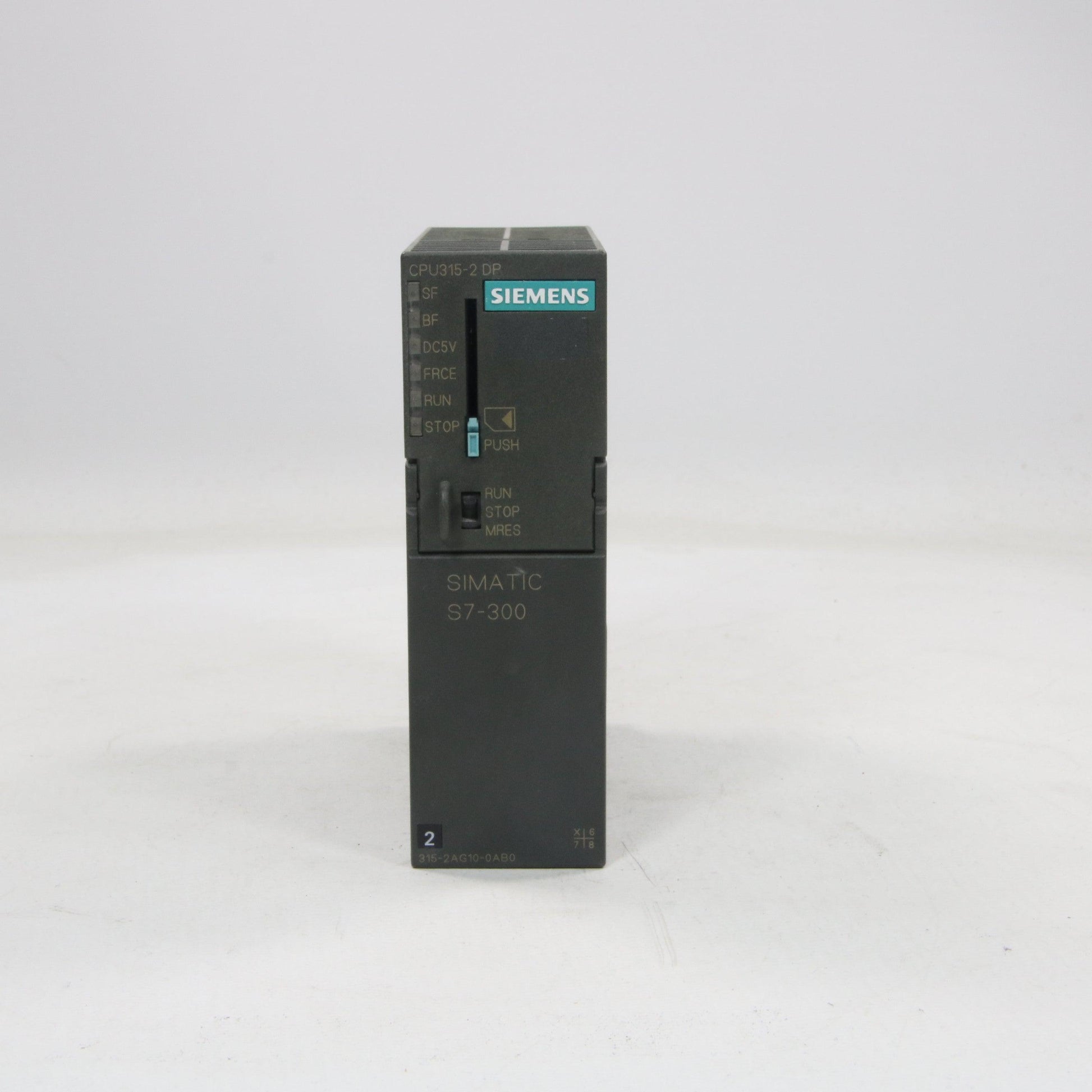

Local Visual IndicatorsFront-facing diagnostic LED array (SF - System Fault, BF - Bus Fault, DC5V - Power, RUN, STOP).
Mode Selector Switch3-position front rotary switch (RUN, STOP, MRES for memory reset).
Compatible Expansion ModulesUp to 32 expansion modules (across max. 4 tier racks using IM 360/361 interface modules).
Structural Mounting FormatDirect screw attachment onto standard SIMATIC S7-300 DIN mounting rails.
Weight300 g
Dimensions125 x 125 x 40 mm
Country of OriginGermany
HS Code8537.10.91
