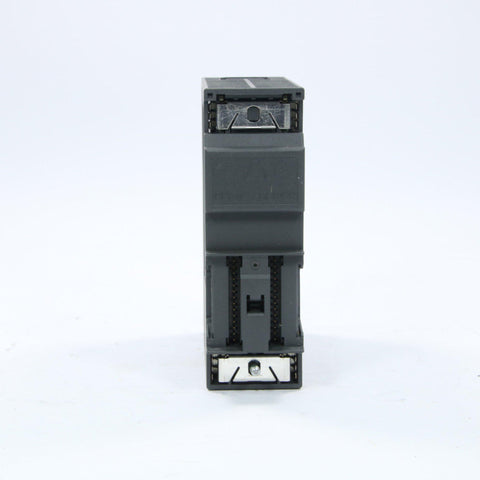

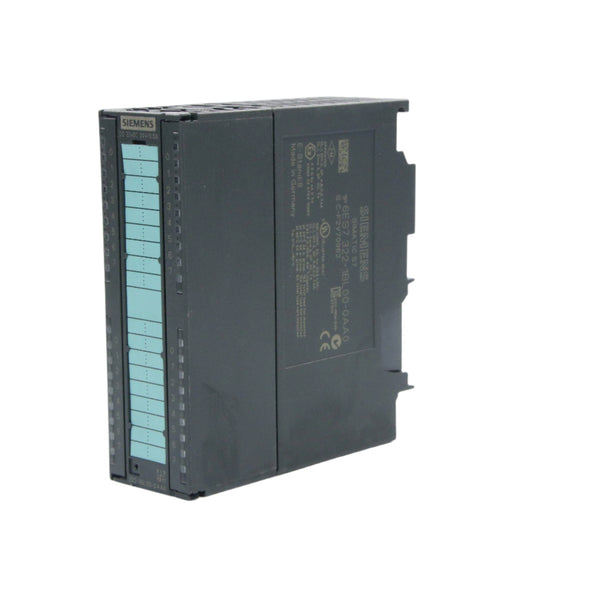

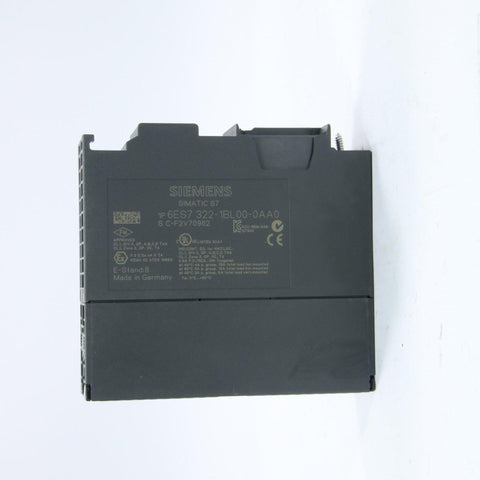

Siemens SM322 Digital Output Module - 6ES7 322-1BL00-0AA0

Siemens SM322 Digital Output Module - 6ES7 322-1BL00-0AA0

€260,15incl. VAT
€215,00 excl. VAT

Stock: 21
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSiemens
ModelSIMATIC S7-300 SM322 Digital Output Module
Type32-Channel 24V DC Digital Output Module
Part Number6ES7322-1BL00-0AA0
Technical Specs
Core ApplicationTransfers 24V DC digital switching signals from the S7-300 central controller/backplane bus to drive external industrial loads like solenoid valves, relays, contactors, and indicator lights.
Number of Digital Outputs32 Outputs
Output TypeTransistor outputs
Rated Supply Voltage (L+)24 V DC
Output Current per Channel0.5 A max. at Signal "1"
Total Load Current (Module)Max. 16.0 A

Switching Frequency (Resistive Load): Max. 100 Hz

Switching Frequency (Inductive Load): Max. 0.5 Hz

Lamp Load CapacityMax. 5 W
Short-Circuit ProtectionElectronic short-circuit / overload protection integrated per channel

Inductive Kickback Voltage Clamp: Integrated inductive energy suppression diode matrix per channel

Output Delay TimeMax. 100 µs
Optical IsolationGalvanically isolated from backplane bus via optocouplers
Cable Connection LengthMax. 1,000 m (Unshielded) / Max. 600 m (Shielded)
Front Connector Required1x 40-pin terminal connector block (6ES7392-1AM00-0AA0, ordered separately)

Backplane Bus Current Consumption: Max. 160 mA (from internal backplane 5 V DC line)

Power LossTyp. 6.6 W
Diagnostic / Status Indicators32 x Green channel status LEDs
Compatible SystemsSIMATIC S7-300, ET 200M distributed I/O stations
Structural Mounting FormatDirect screw attachment to standard SIMATIC S7-300 DIN mounting rails
Weight400 g
Dimensions40 x 125 x 120 mm
Country of OriginGermany
HS Code8538.90.91
