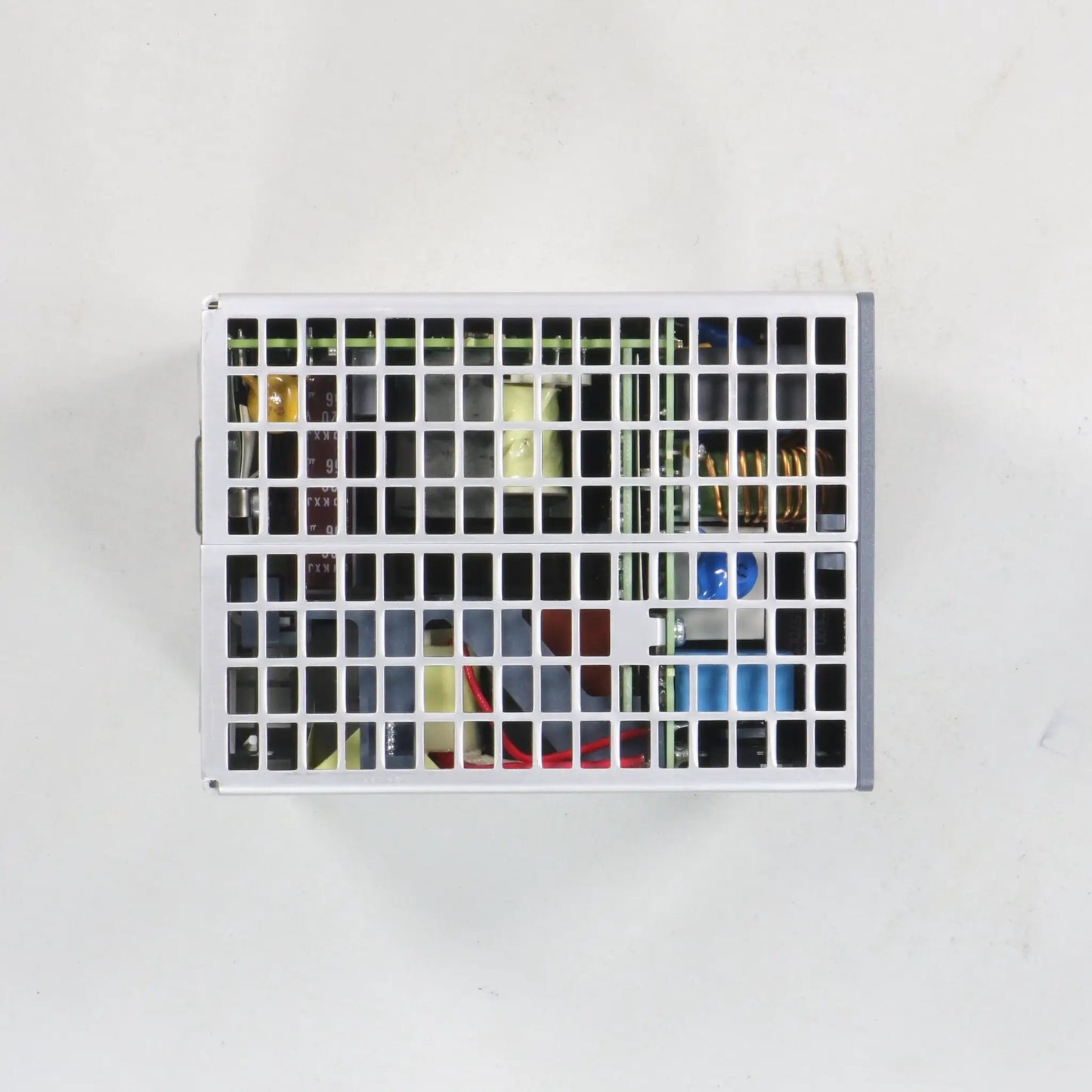

Siemens SITOP PSU8200 6EP1336-3BA10 Stabilized Power Supply

Siemens SITOP PSU8200 6EP1336-3BA10 Stabilized Power Supply

€356,95incl. VAT
€295,00 excl. VAT

Stock: 4

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSiemens
ModelSITOP PSU8200
TypeRegulated DC Power Supply / Stabilized Switched-Mode Power Supply
Part number6EP1336-3BA10
Technical specifications
Input voltage120–230 V AC (wide range 85–275 V AC) or 110–220 V DC (88–350 V DC); supports 1-phase AC, 2-phase AC, or DC input
Input frequency50/60 Hz
Output voltage24 V DC
Rated output current20 A
Rated power480 W
Overload behaviorExtra Power (1.5x rated current / 30 A for 5 s); Power Boost (up to 300% / 60 A for 25 ms); selectable short-circuit response
EfficiencyHigh
Residual ripple≤100 mV peak-peak (load range); spikes ≤200 mV (20 MHz bandwidth)
ProtectionShort-circuit proof, no-load proof, overload/short-circuit with signalling; 24 V OK relay contact
LEDs3 status LEDs
MountingDIN rail (TS35)
Operating temperature-25°C to +70°C
Additional featuresWide input range, soft start (no overshoot), power failure buffering min. 20 ms at 230 V, high overload capability for capacitive loads/inrush, expandable with SITOP modules
StandardsIEC/EN compliant, UL/cUL, CE, cCSAus, marine approvals
Weight1.4 kg
Dimensions165 x 165 x 100 mm
Country of originRomania
HS code8504.40
