SMC

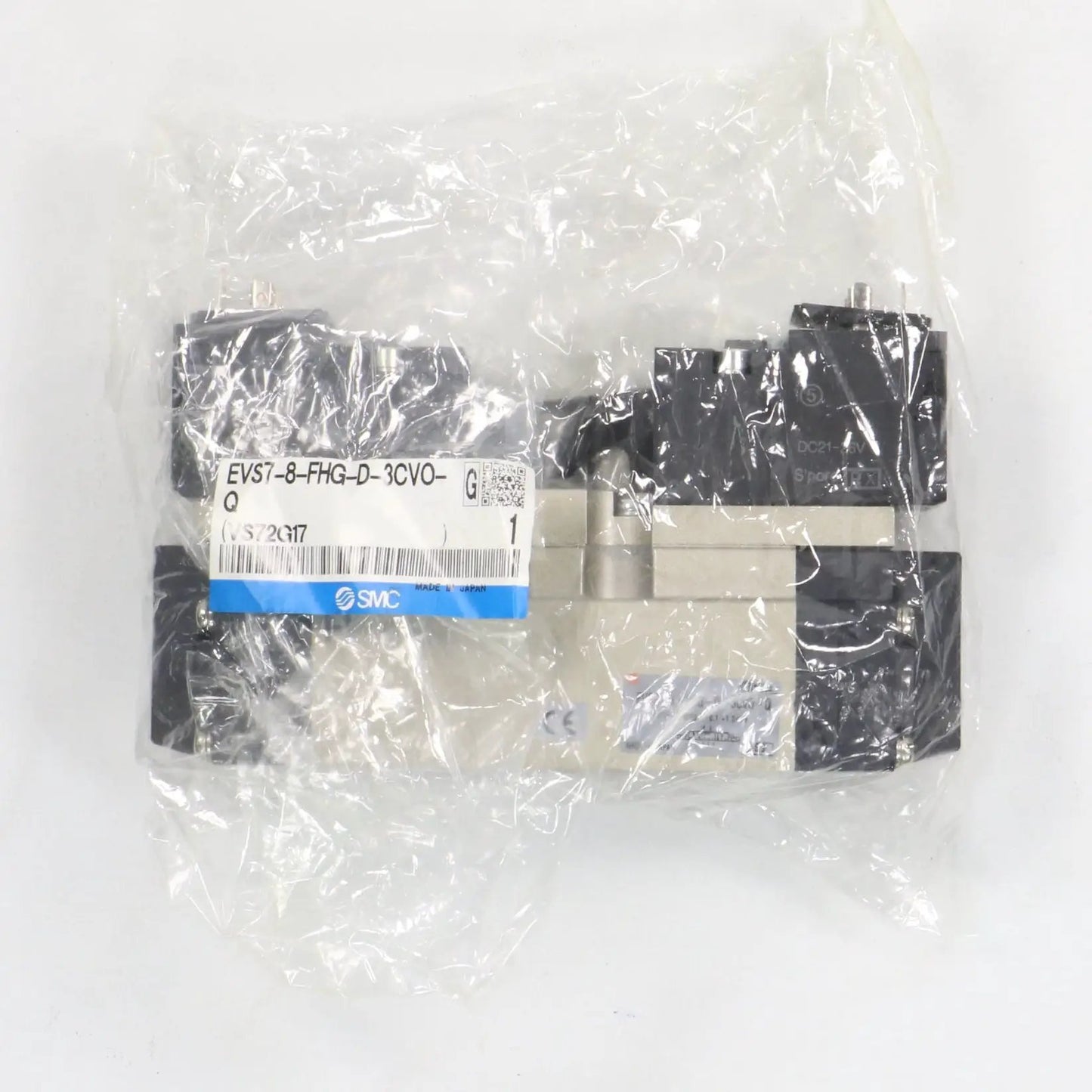

SMC EVS7-8-FHG-D-3CVO-Q 5-Port Pilot Operated Solenoid Valve

SMC EVS7-8-FHG-D-3CVO-Q 5-Port Pilot Operated Solenoid Valve

€211,75incl. VAT
€175,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSMC
Model EVS7-8-FHG-D-3CVO-Q
Type 5-Port Pilot-Operated Solenoid Valve
All tech specs
Valve function5-port / 3-position
ActuationPilot-operated spool, metal seal
SolenoidDual solenoid (3-position closed center)
Voltage24 V DC
Electrical entryDIN terminal with light/surge voltage suppressor
Manual overrideNon-locking push type
Pilot typeInternal pilot
Port size1/4"
Body size8
Operating pressure range1.5 to 10 bar
Proof pressure15 bar
Ambient and fluid temperature-10 to +50 °C
Response timeON: 20 ms, OFF: 38 ms
Max. operating frequency5 Hz
LubricationNot required
Mounting orientationAny direction
Shock/Vibration resistance150 m/s² / 50 m/s²
EnclosureIP65
Power consumption1.0 W
MaterialBody – aluminium die-cast, Spool – stainless steel, Seals – NBR
FeaturesEnergy-saving type (low power consumption), metal spool for long life and reliability, DIN terminal for easy wiring
Part of SMC EVS7 seriesHigh-performance pilot-operated solenoid valves for pneumatic systems in factory automation
Dimensions170 x 60 x 90 mm
Weight1.1 kg
Country of originJapan
HS code 848180
