STM RMI 70 FL Right Angle Worm Gearbox

Brand: STM (STM Riduttori)
Model: RMI 70 FL
Type: Right Angle Worm Gearbox
OL/OW: 22003358 - Code: 2106415591

Technical Specs:
- Gear Type: Single-stage worm gear
- Reduction Ratio: IR 1/100
- Rated Torque: Up to 3000 Nm
- Input Speed: Max 1500–1800 rpm (IEC motor flange)
- Efficiency: 70–90%
- Input Configuration: IEC motor flange
- Output Configuration: Hollow shaft with keyway (standard FL = foot + flange)
- Hollow Bore Diameter: 30 mm
- Mounting: Foot + flange (universal B3/B5/B14 mounting)
- Housing Material: Aluminium alloy (die-cast, epoxy painted)
- Worm Shaft: Hardened and ground steel

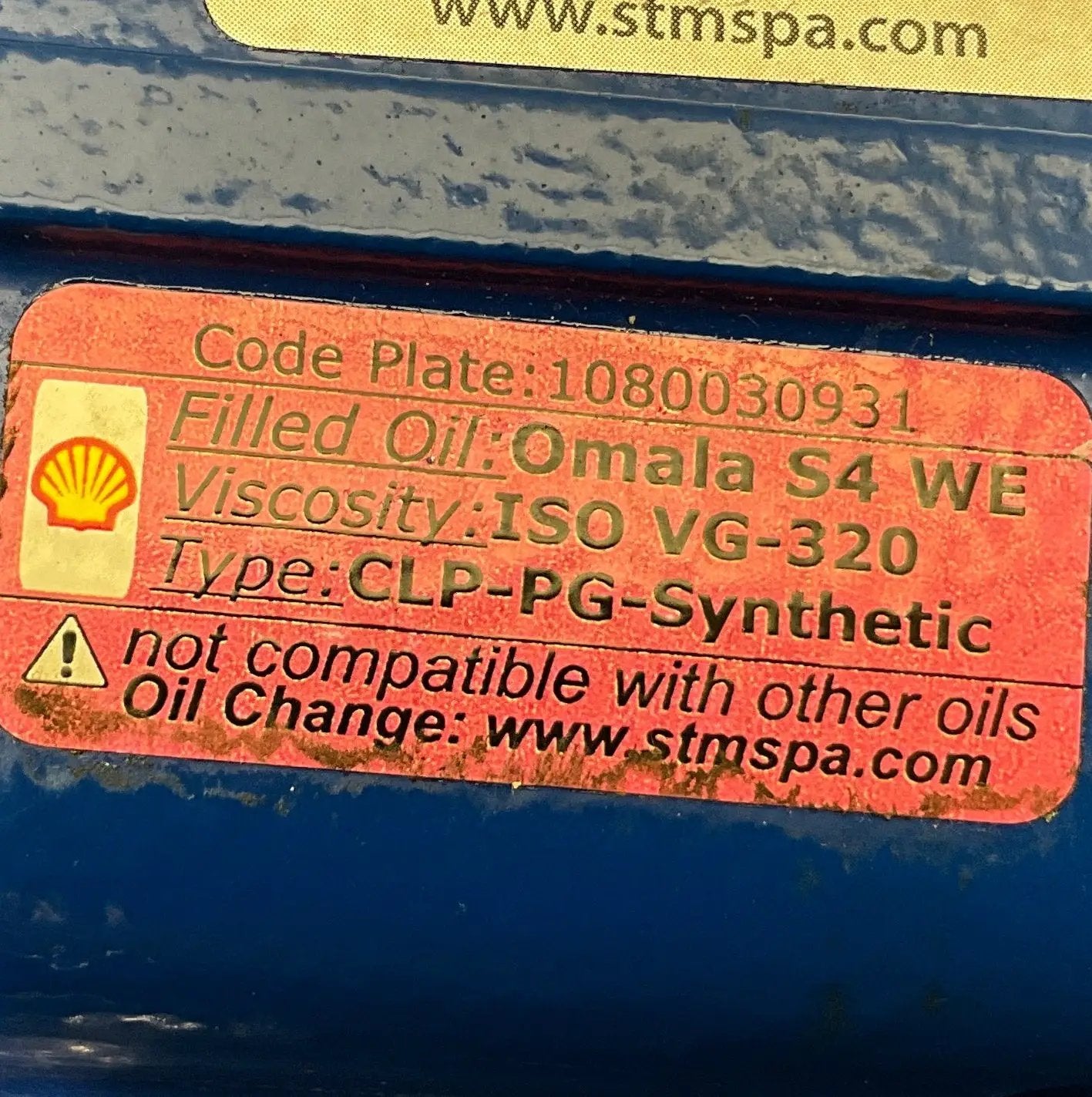

- Lubrication: Synthetic oil (long-life, factory-filled)
- Seals: Double-lip NBR seals
- Operating Temperature: -10 °C to +80 °C with synthetic oil
- Noise Level: < 70 dB(A)
- Backlash: Standard (≈ 20–30 arcmin)
- Additional Features:
  - Reversible (bidirectional)
  - Hollow output for direct shaft mounting
  - Modular design
  - High radial/axial load capacity
  - Maintenance-free (lubricated for life)

Dimensions: 200 (footflange O.D.) x 105 (gearflange O.D.) x 120 (headflange O.D.) mm

Overall size: 180 x 200 x 200 mm

Weight:  8.5 kg

Country of Origin: Italy

HS Code: 8483.40
