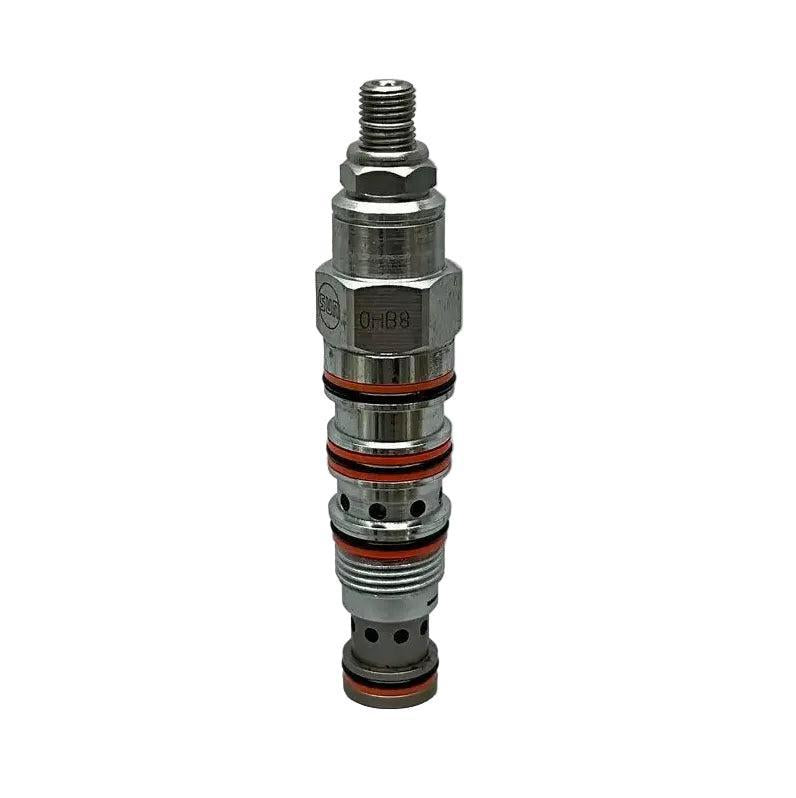

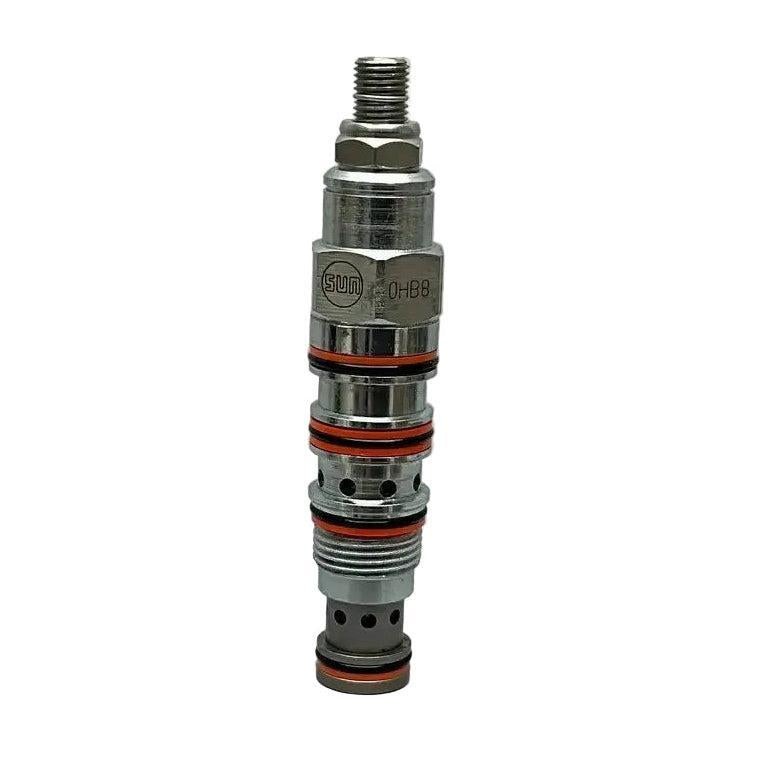

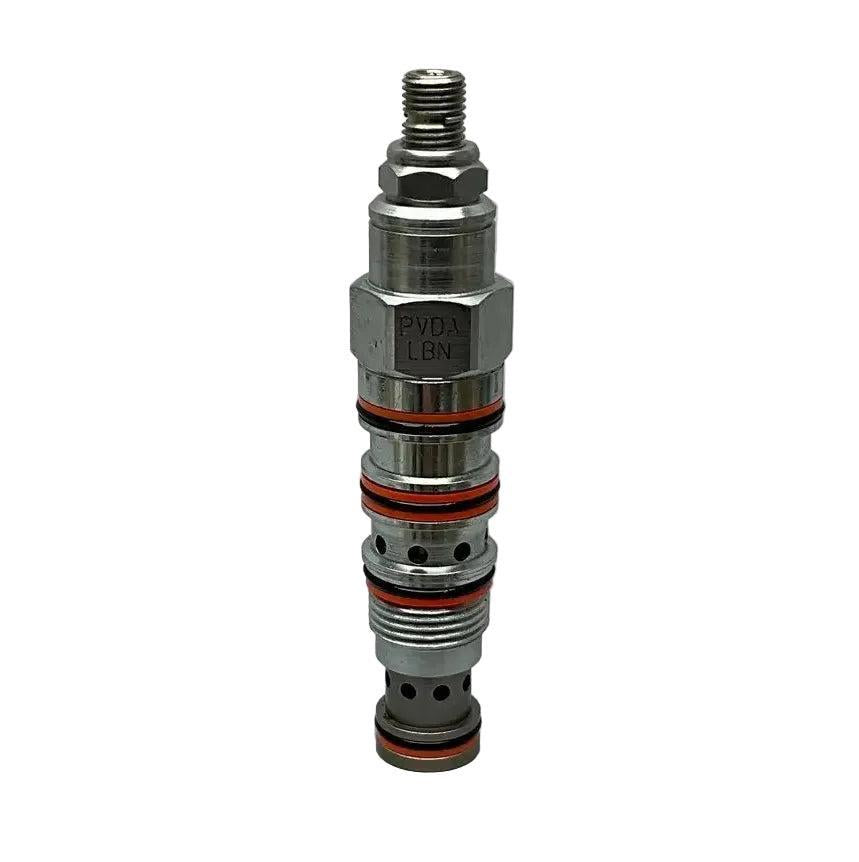

Sun Hydraulics PVDA LBN 3-Way Pressure Reducing Valve - DE-P0-102746

- Brand: Sun Hydraulics
- Model: PVDA-LBN
- Type: 3-Way Pressure Reducing / Relieving Valve

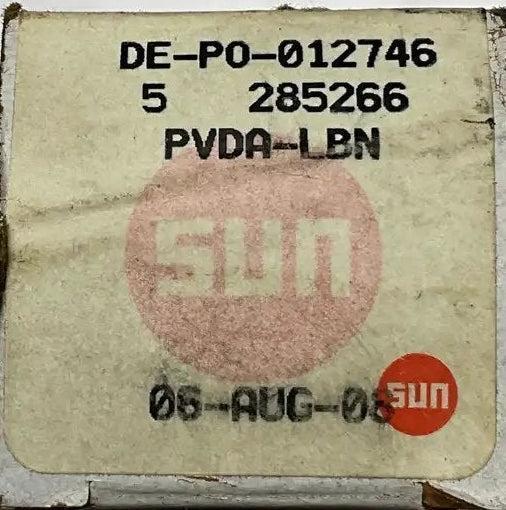

- Part number: DE-P0-102746
- Technical specs:
- Series: PVDA
- Function: Pilot-operated pressure reducing / relieving valve with drain port
- Valve type: 3-way pressure control cartridge valve
- Cavity: T-21A
- Capacity: 40 L/min
- Maximum operating pressure: 350 bar
- Maximum pressure at drain port (Port 3): 210 bar
- Pilot flow: 0.11–0.16 L/min
- Adjustment type: L = Standard screw adjustment
- Pressure range: N = 4–55 bar
- Seal material: B = Buna-N (Nitrile)
- Pilot-operated design with low hysteresis
- Very stable pressure/flow characteristics
- Full relieving function
- Floating-style construction minimizes binding due to installation torque
- Reverse flow possible from reduced pressure port to inlet port
- Installation torque: 41–47 Nm (30–35 lb-ft)
- Adjustment screw: Internal hex 4 mm
- Cartridge construction: Hardened steel
- Suitable for:
  - Hydraulic power units
  - Industrial machinery
  - Mobile hydraulics
  - Presses
  - Process control systems

Weight: 210 g

Dimensions: - Hex size: 22.2 mm, - Cartridge cavity: T-21, - length: 85 mm

Country of origin: USA

HS Code: 8481.20
