Teledyne Hastings Instruments HFC-203 Mass Flow Controller

Teledyne Hastings Instruments HFC-203 Mass Flow Controller

€223,85incl. VAT
€185,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandTeledyne Hastings Instruments
ModelHFC-203
TypeMass Flow Controller
Technical specs
Output function0...5 VDC analogue mass flow output signal
Electrical designThermal mass flow measurement with integrated proportional control valve

Standard Temperature & Pressure: 0 C & 700 Torr (1 bar)

Maximum operating pressure34 bar
Voltage±14...16 VDC
Temperature23.2 °C calibrated operating temperature
Current RatingMax. 185 mA at ±15 VDC
FunctionHigh-accuracy monitoring and regulation of gaseous flow lines based on heat transfer thermodynamics, independent of upstream pressure spikes
Max. power consumption< 4.2 W

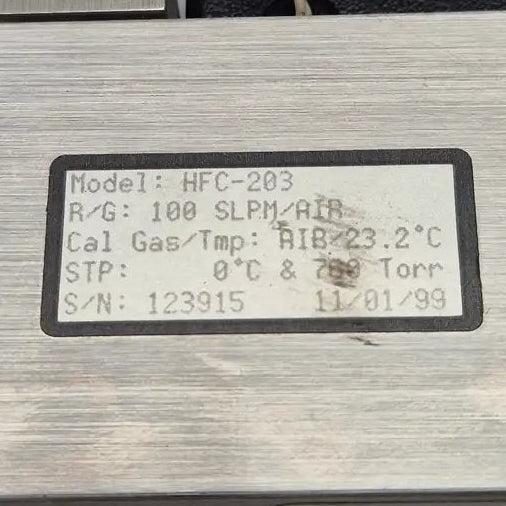

Gas selectionCalibrated for Air (A/G: 100 SLPM/AIR, base reference gas factor)
Accuracy±1.0% of Full Scale
Repeatability±0.05% of Full Scale
Flow Range capacity0...100 SLPM (Standard Liters Per Minute)

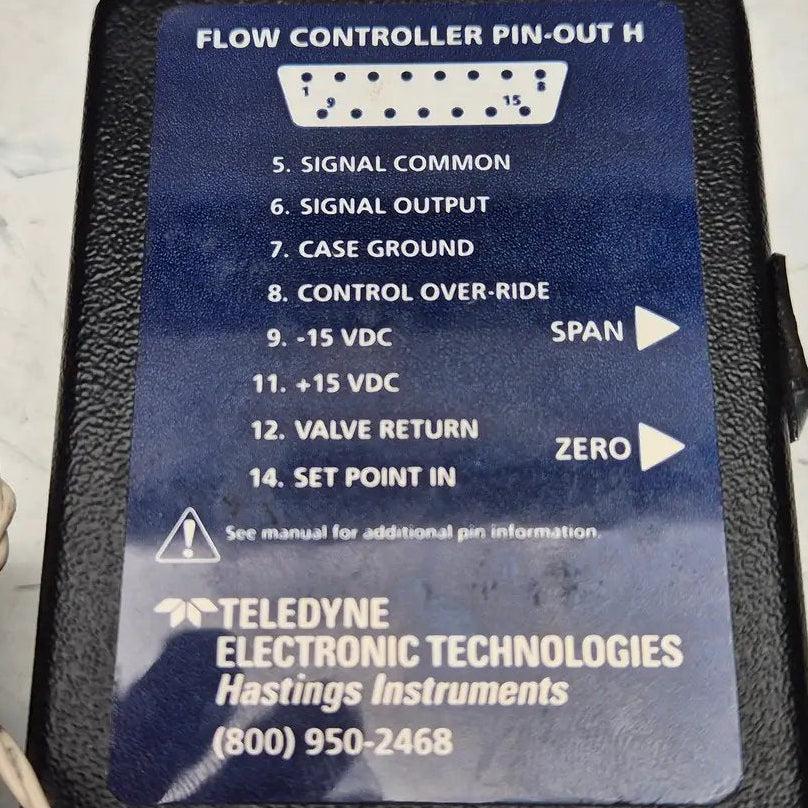

Connection type15-pin subminiature D-connector (for ±15 VDC builds)
Ports3/4" hose connector
Housing materialStainless Steel, Nickel 200, FKM/Viton elastomer seals, Kalrez valve seat
Mounting typeIn-line plumbing installation (vertical or horizontal plane)
Protection ratingIP 40
Weight2.5 kg
Dimensions220 x 50 x 16 mm
Country of originUnited States
HS Code9026.10.20
