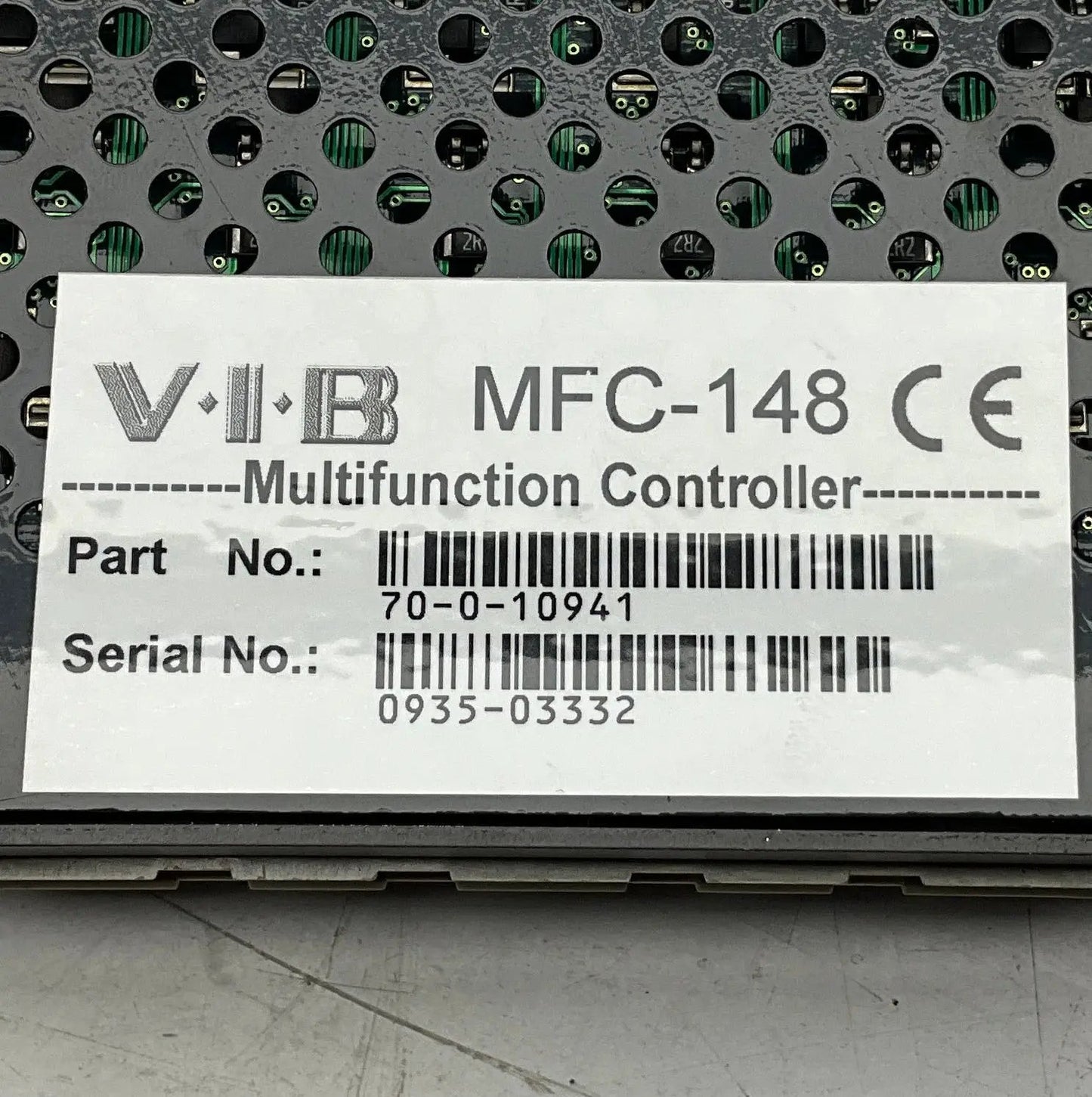

V.I.B MFC-148 Multifunction Controller

V.I.B MFC-148 Multifunction Controller

€1.750,00
€1.750,00

Stock: 1
Gear Icon Product description and type information

- Brand: V.I.B. (Vibration Instrumentation & Balancing GmbH)
- Model: MFC-148
- Type: Multifunction Controller (Machine Monitoring & Control Unit)
- Part Number: 70-0-10941

- Technical Specs:
- Function: Multifunction controller for vibration monitoring, balancing, and machine protection in industrial applications
- Channels: 4 vibration channels (configurable for velocity, acceleration, displacement) + optional temperature/pressure inputs
- Input Signals: Velocity sensors (e.g., 100 mV/mm/s), accelerometers, proximity probes (eddy current)
- Frequency Range: 10 Hz to 1 kHz
- Measurement Parameters: RMS, peak, peak-to-peak, true peak, bearing condition (gSE), temperature
- Alarm/Shutdown Relays: 2 independent relays per channel (alarm + danger), configurable delay and hysteresis
- Analog Outputs: 4-20 mA (isolated, loop-powered) for each channel
- Digital Communication: Modbus RTU (ERNI 64 Pin Connector)
- Display: LCD with backlight
- Power Supply: 18-32 V DC (24 V nominal)
- Power Consumption: < 15 W
- Enclosure Rating: IP65 (front panel)
- Operating Temperature: -20 °C to +60 °C
- Storage Temperature: -40 °C to +80 °C
- Vibration Resistance: 5 g RMS (10-500 Hz)
- Additional Features:
  - Programmable alarm thresholds and time delays
  - Trend memory (up to 1 year)
  - Event log and fault diagnostics
  - Easy front-panel programming or via software
- Certifications: CE

Dimensions: 200 x 50 x 135 mm

Weight: 550 g

Country of Origin: Germany

HS Code: 9031.80

SKU:CA-05-04-07-6152428551528

12 Months Warranty
