Pepperl + Fuchs

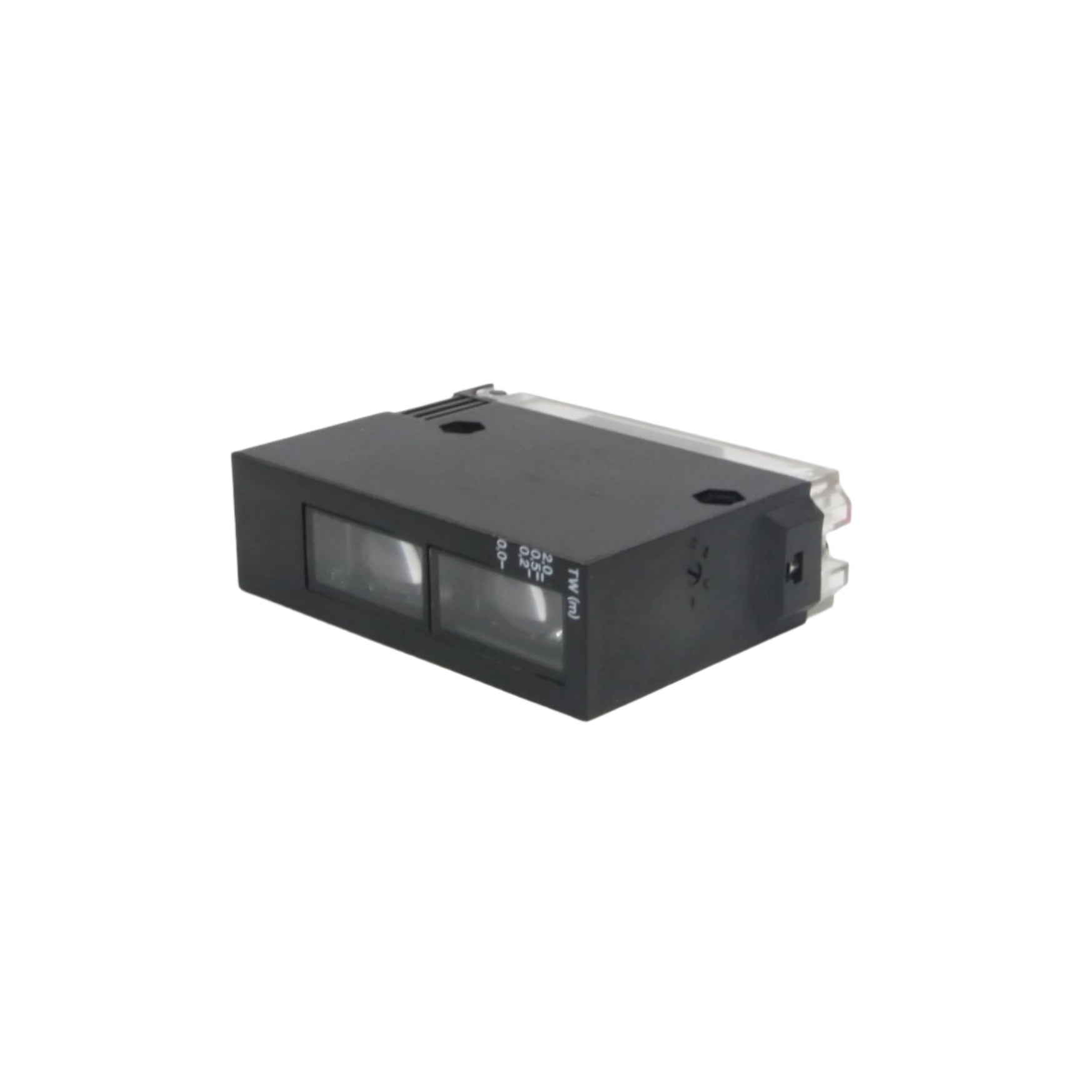

Pepperl + Fuchs Visolux RL23 Series Background Suppression Sensor

Pepperl + Fuchs Visolux RL23 Series Background Suppression Sensor

€235,95incl. VAT
€195,00 excl. VAT

Out of stock

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandPepperl + Fuchs
Identity NumberRL23-8-H-20000-IR/47/92/104
Part Number419464
ModelVisolux RL23 Series Background Suppression Sensor
TypeDiffuse Mode Sensor with Background Suppression
Light SourceModulated Infrared LED
Detection Range50 mm to 2000 mm
Minimum Detection Range50 mm
Maximum Detection Range3000 mm
Opening Angle1.5°
Diameter of Light Spot50 mm at 2000 mm detection range
Ambient Light Limit5000 Lux
Response Time50 ms
Switching Frequency10 Hz
Switching TypeLight/Dark ON
Signal Output2 PNP, complementary, short-circuit protected, reverse polarity protected
Switching Voltage30 V DC
Switching CurrentMax. 200 mA
Timer FunctionON delay (GAN), OFF delay (GAB), one shot (IAB), programmable, adjustment range 0.1 ... 10 s
Programming SwitchesLight/Dark switching, sensing range adjuster, time adjuster
Operating Voltage10 ... 30 V DC
Ripple10%
No-load Supply Current100 mA
Housing MaterialTerluran® GV15
Optical SurfaceScratch-resistant glass
Degree of ProtectionIP65
Connection4-pin, M12 x 1 connector
Dimensions (H x W x D)91 mm x 26.8 mm x 67.6 mm
Weight180 g
Ambient Temperature Range-20 ... 60 °C
ConformityEN 60947-5-2
