ABB

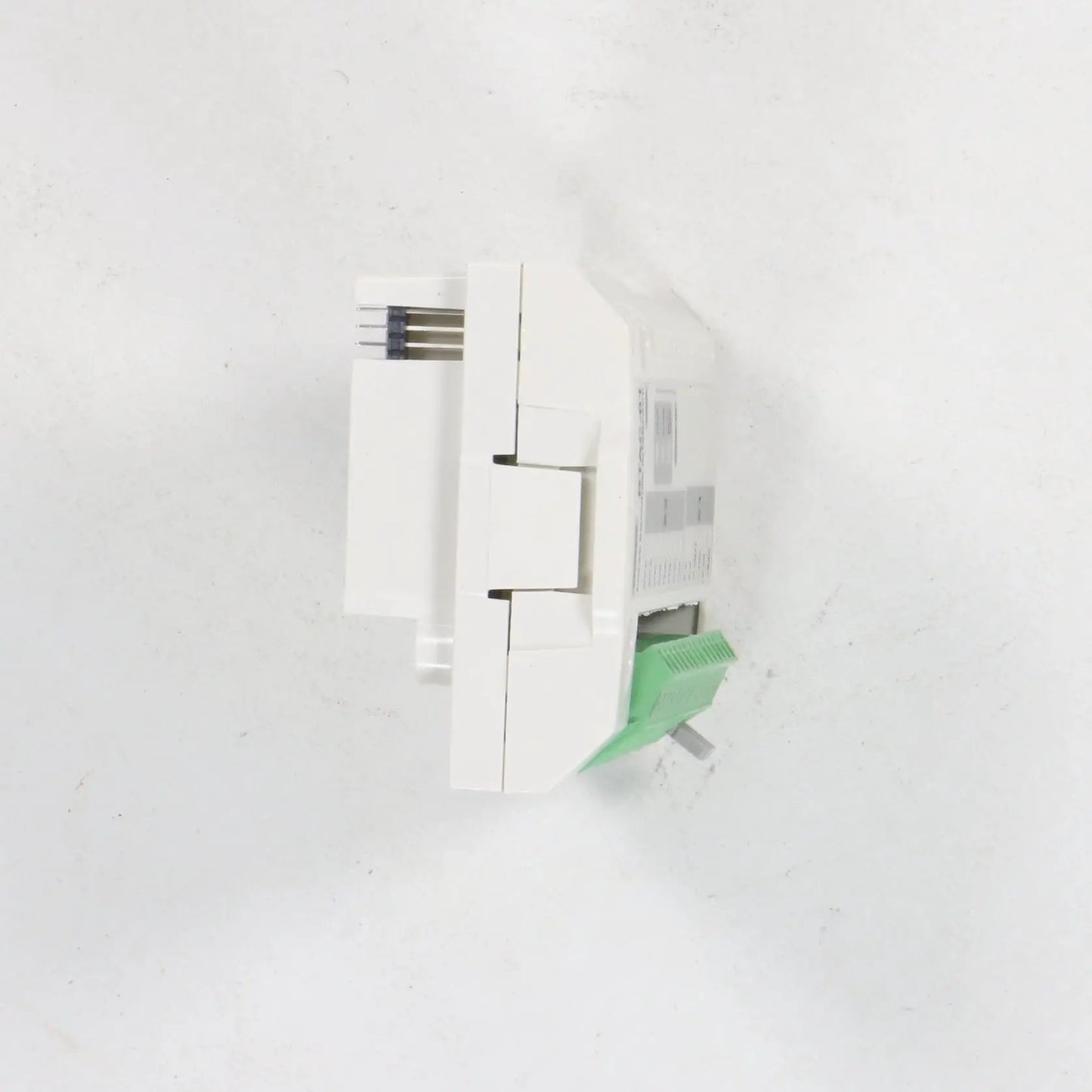

ABB RTAC-01 Pulse Encoder Interface Module

ABB RTAC-01 Pulse Encoder Interface Module

€260,15incl. VAT
€215,00 excl. VAT

Out of stock
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandABB
ModelRTAC-01
TypePulse Encoder Interface Module
Part number3ABD64610805
Technical specifications
Encoder interfaceSupports differential or single-ended pulse encoders
Supply voltagesSelectable +15 V DC ±10% (5 W max., short-circuit proof) or +24 V DC ±10% (5 W max., short-circuit proof) via jumper
Signal levels"1" >7.6 V / "0" <5 V (15 V supply); "1" >12.2 V / "0" <8 V (24 V supply)
Max. frequency200 kHz
Speed feedback resolution0.00305% (15 bits)
Speed feedback accuracy50 ppm
Cable length limits300 m (differential push-pull), 200 m (single-ended push-pull), 100 m (open collector/emitter)
IsolationIsolated from logic and earth (test voltage 1.5 kV AC, 1 min)
Power consumptionMax. 140 mA (5 V) + 55 mA (24 V) from drive
Connection to drive34-pin parallel bus connector
Compatible drivesACS800 series AC drives, DCS800 series DC drives; often option code +L502
Additional featuresEnables precise closed-loop speed/position control; LED indicators for status; configurable via drive parameters; high reliability for industrial feedback; supports TTL/HTL encoder types
StandardsCompliant with EMC standards EN 50081-2 / EN 50082-2; UL/CSA-approved materials; IEC/EN compliant for drive accessories
Weight220 g
Dimensions210 x 145 x 50 mm
Country of originFinland
HS code8504.90
