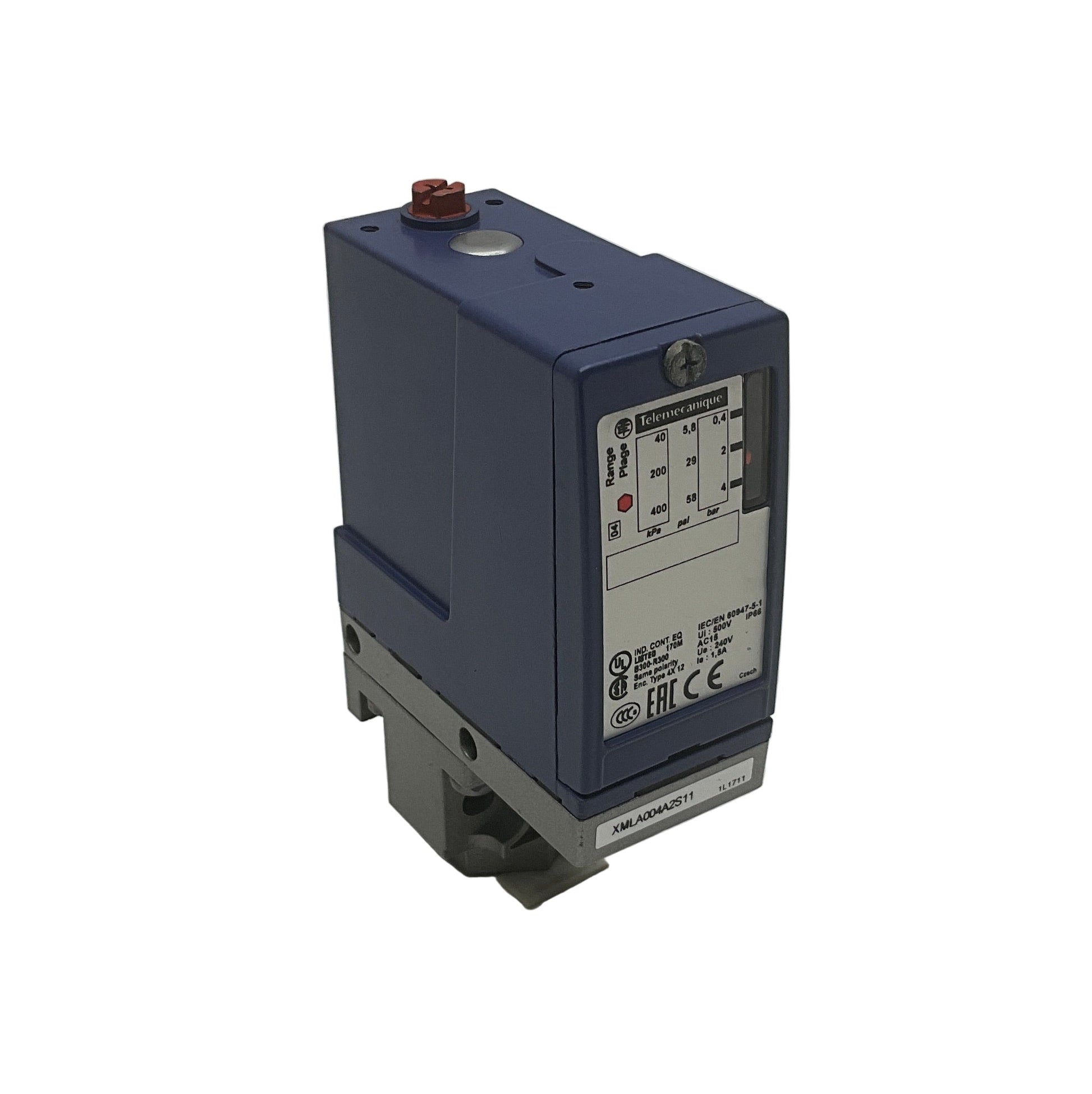

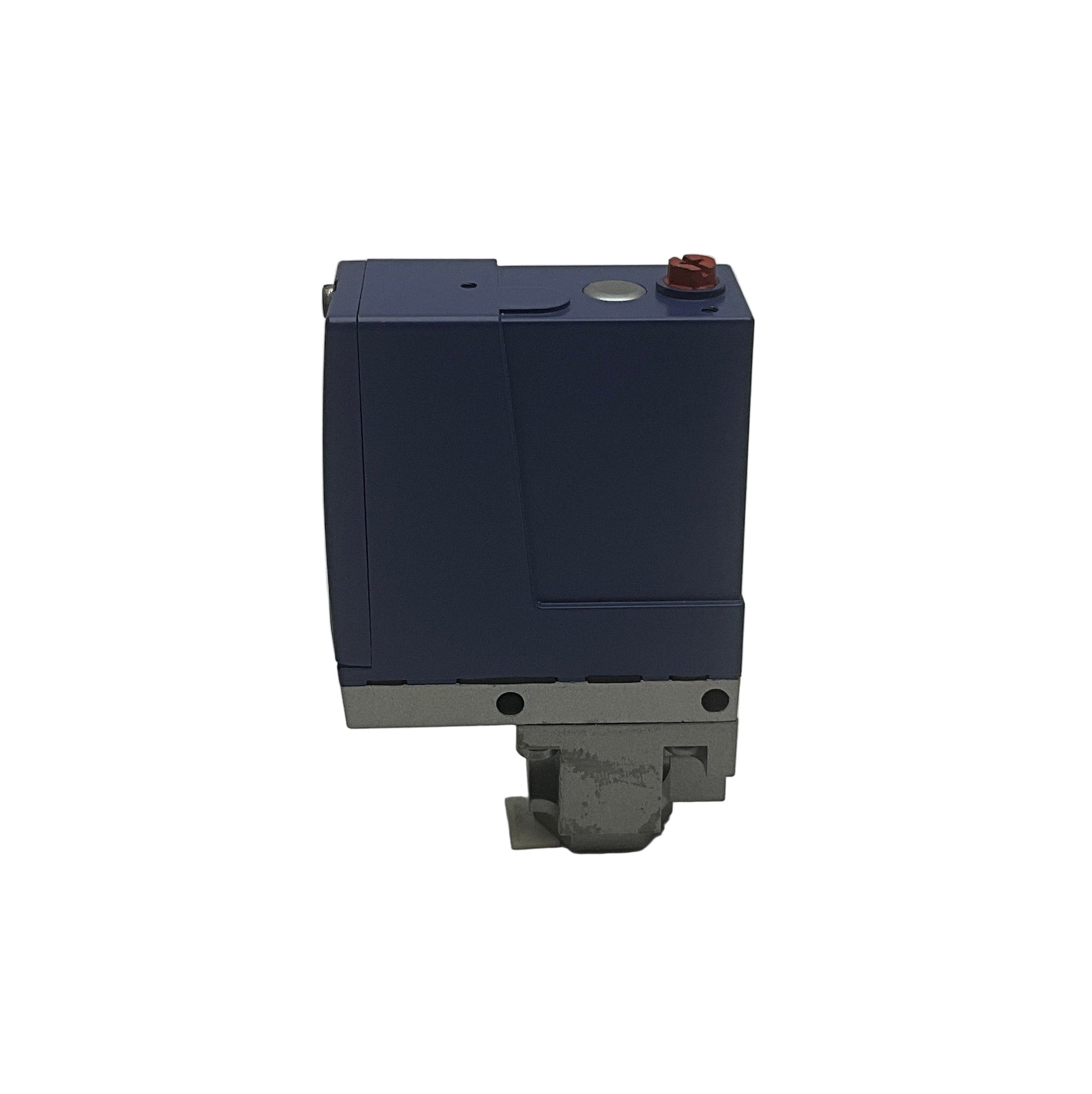

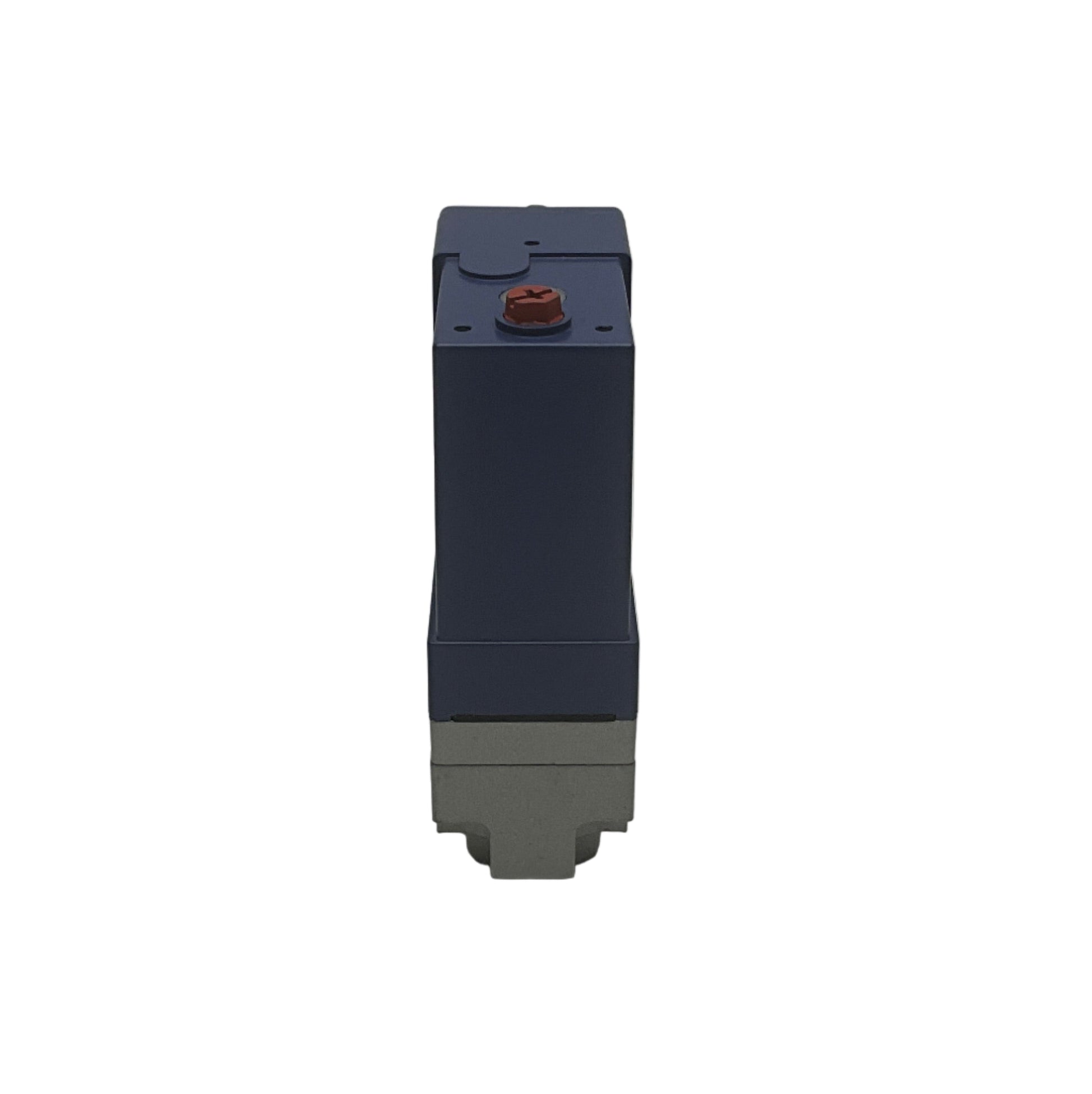

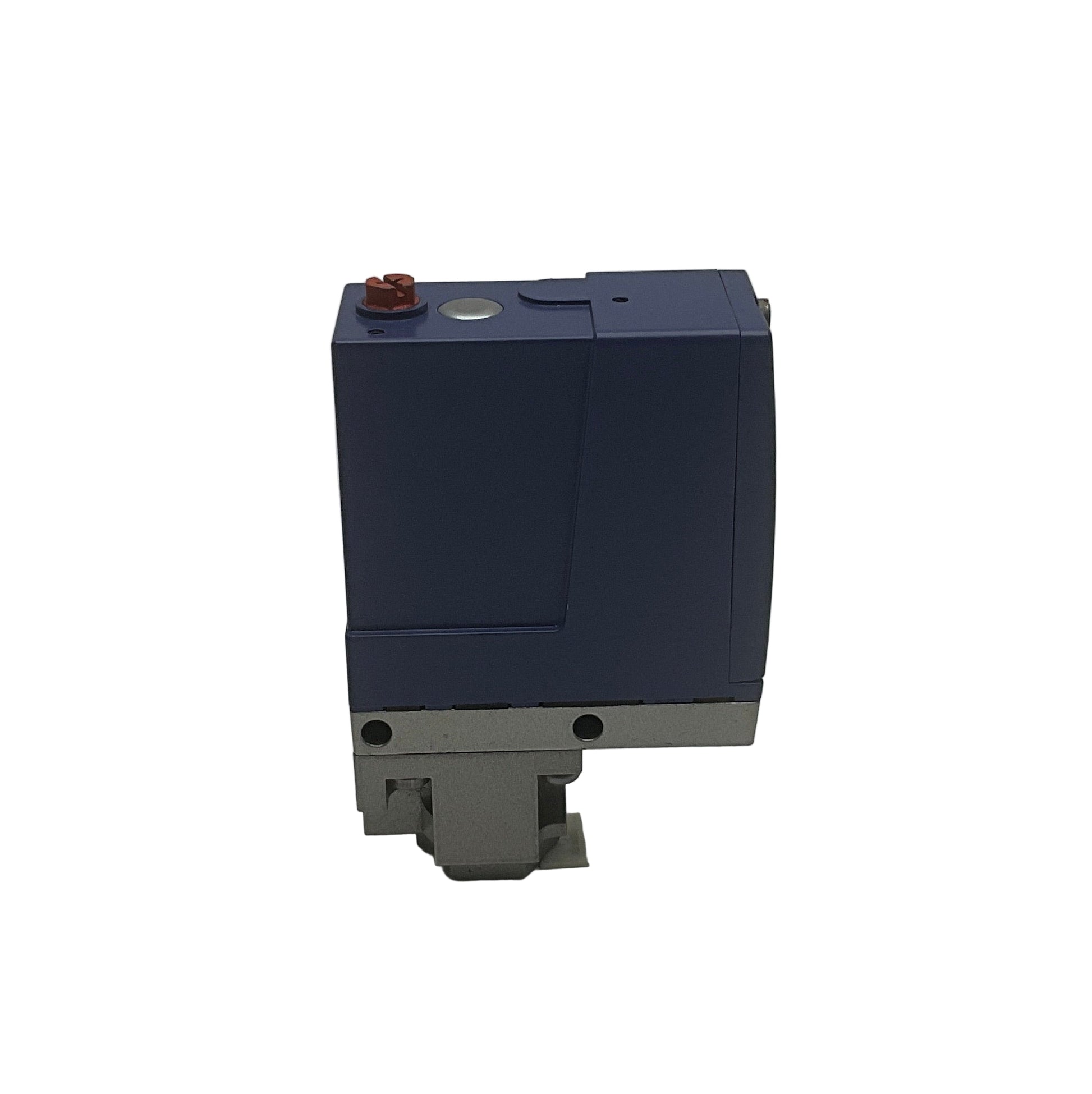

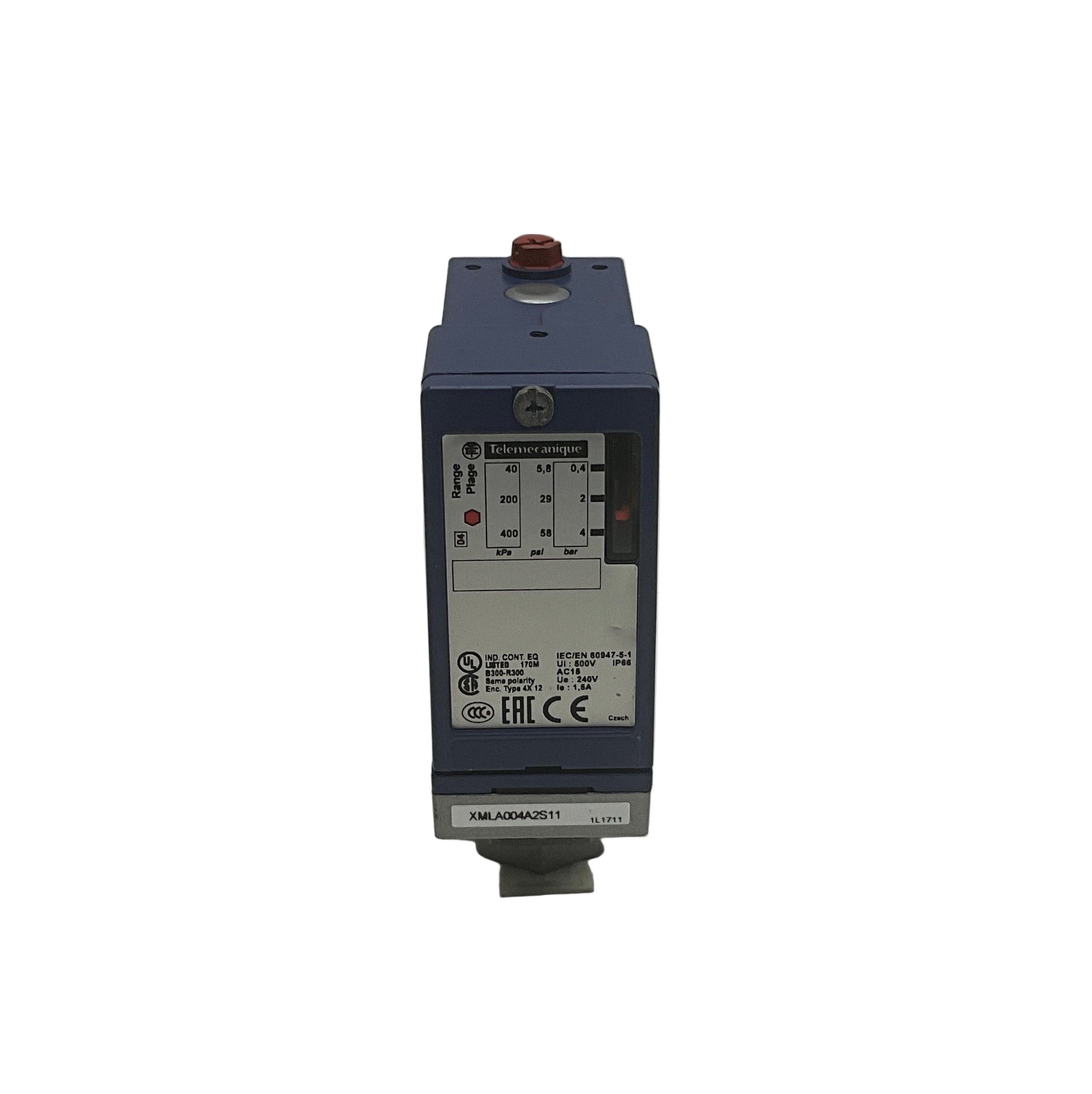

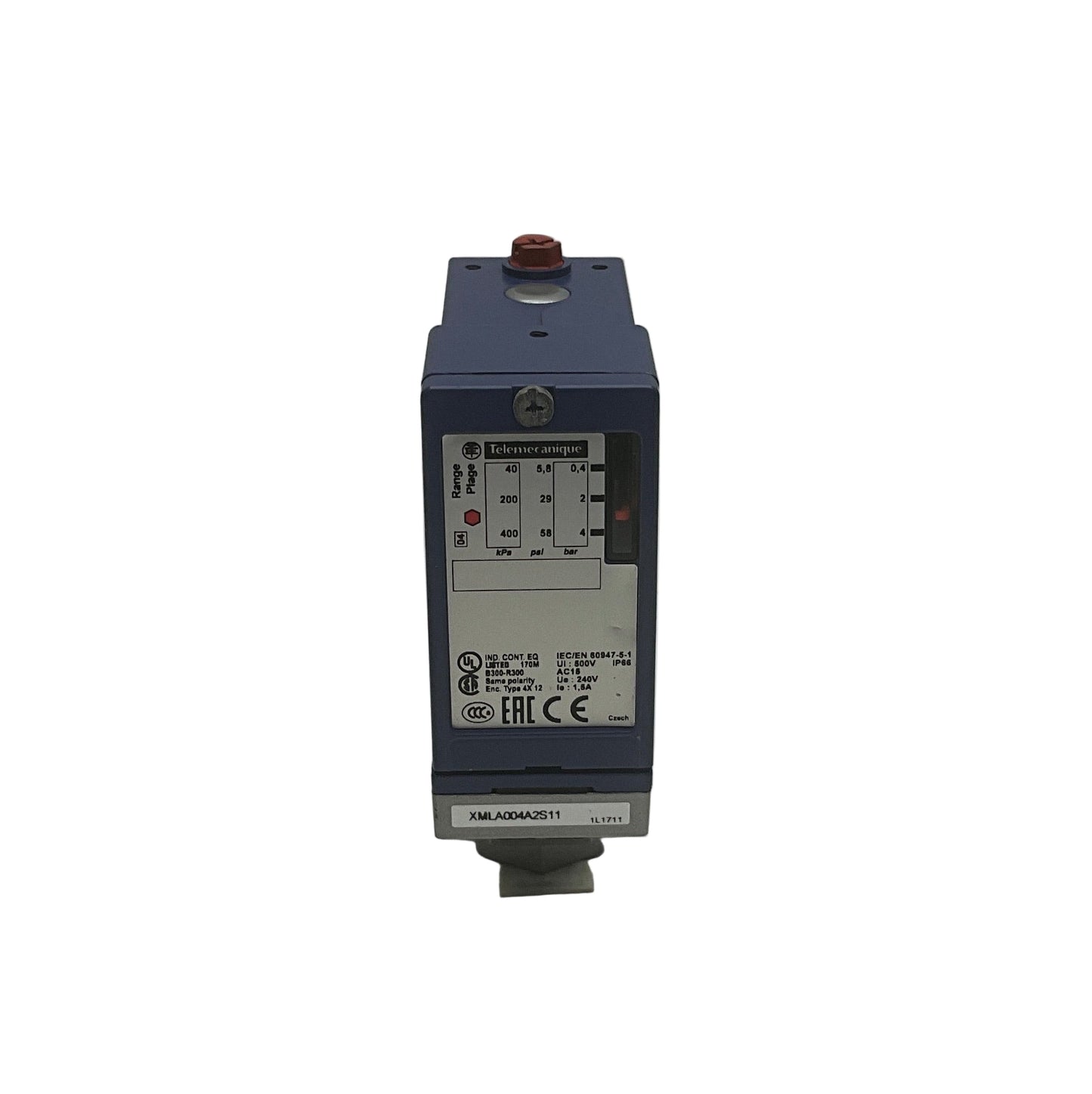

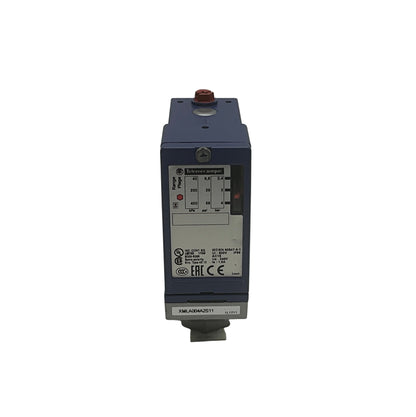

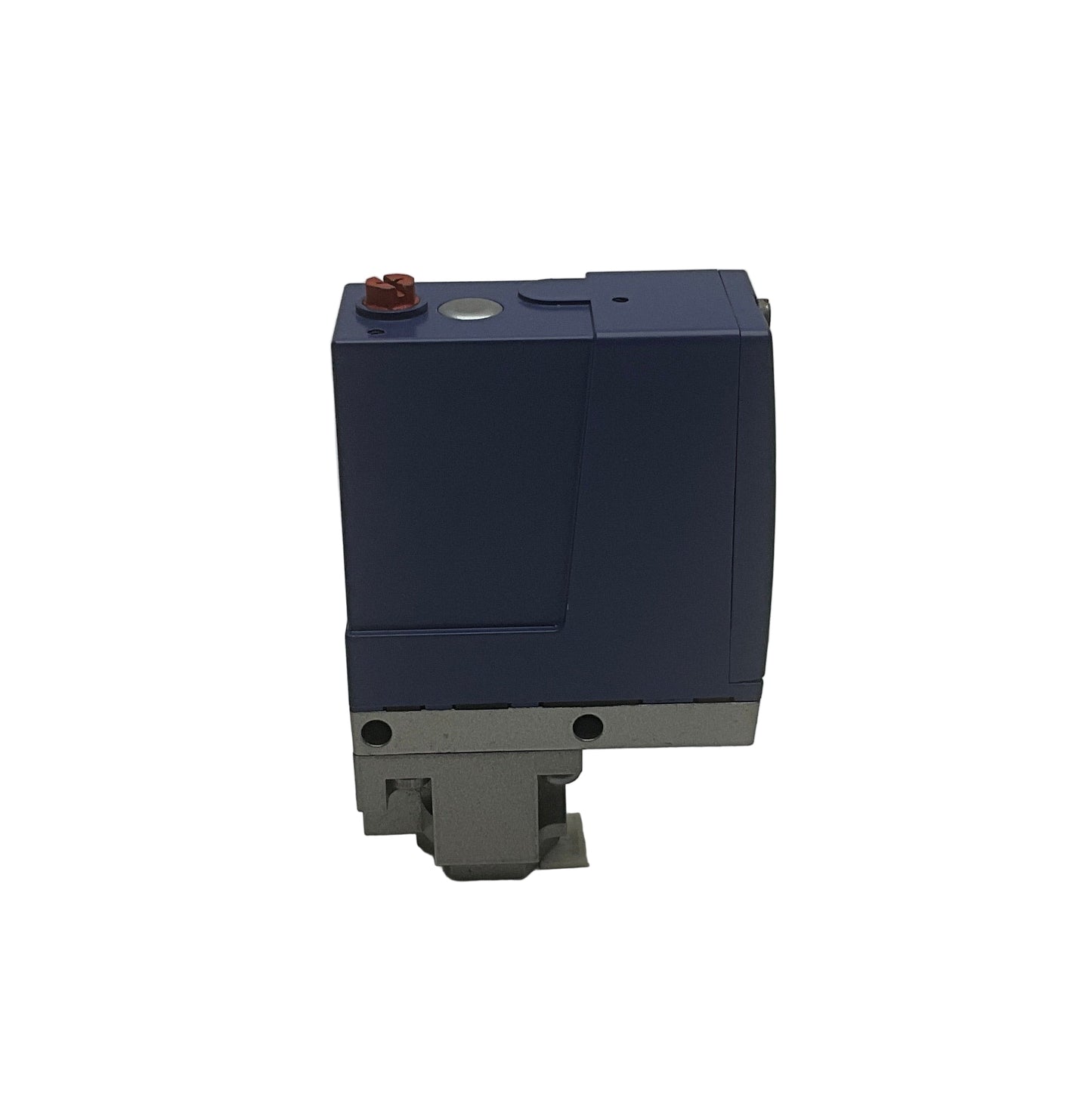

Telemecanique XMLA004A2S11 Differential Pressure Switch

Brand: Telemecanique Sensors (Schneider Electric)
Model: XMLA004A2S11
Type: Differential Pressure Switch

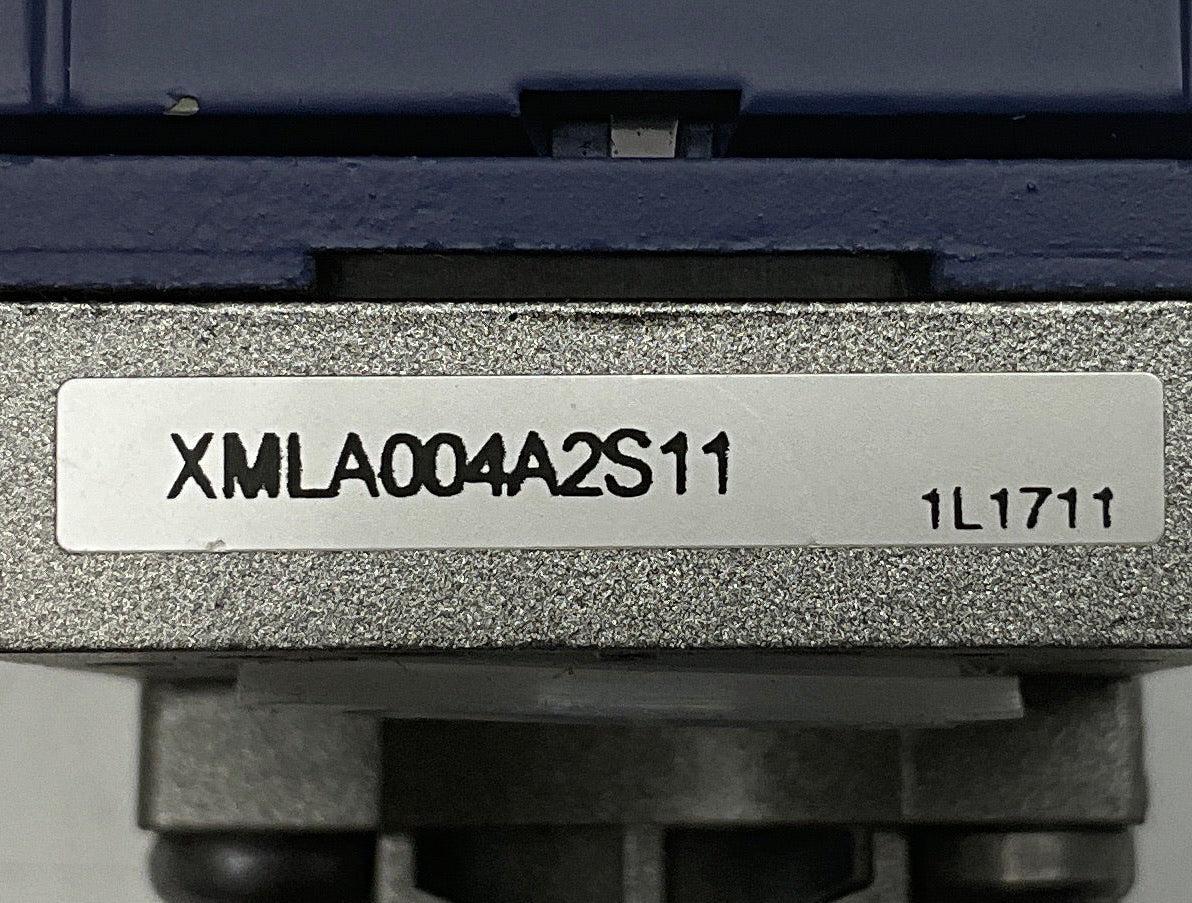

Part Number: XMLA004A2S11

Technical Specs:
- Pressure Sensor Type: Electromechanical pressure sensor
- Operating Pressure Range: 0.4 to 4 bar (5.8 to 58 psi)
- Differential: Fixed differential
- Threshold: 1 single threshold
- Contact Operation: 1 C/O (SPDT, 1 Normally Open + 1 Normally Closed snap acting contacts)
- Controlled Fluid: Air (0-70 °C), fresh water (0-70 °C), hydraulic oil (0-70 °C), sea water, steam, corrosive fluids, viscous products
- Fluid Connection Type: G 1/4" (female, BSP, ISO 228)
- Electrical Connection: Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm², 1 entry tapped for PG 13.5 cable gland
- Supply Voltage: 120-240 V AC / 250 V DC
- Rated Current: AC-15: 1.5 A (Ue: 240 V), DC-13: 0.1 A (Ue: 250 V)
- Operating Rate: Up to 120 operations/min
- Mechanical Durability: 8 million cycles
- Enclosure Rating: IP66 (with cable gland)
- Protection Class: Type 4X, 12 (NEMA)
- Ambient Temperature Range: -25°C to 70°C
- Media Temperature Range: 0°C to 70°C
- Housing Material: Zinc alloy
- Diaphragm Material: Nitrile
- Additional Features:
  - External pressure setting window for easy adjustment
  - Fixed differential for single threshold detection
  - Robust design for minimum maintenance
  - Same polarity for NO/NC contacts
- Certifications: CE, cULus, UL, EU Declaration of Conformity, RoHS compliant, REACH compliant

Dimension: 120 x 80 x 30 mm

Weight: 700 g

Country of Origin: Czech

HS Code: 9026.20
