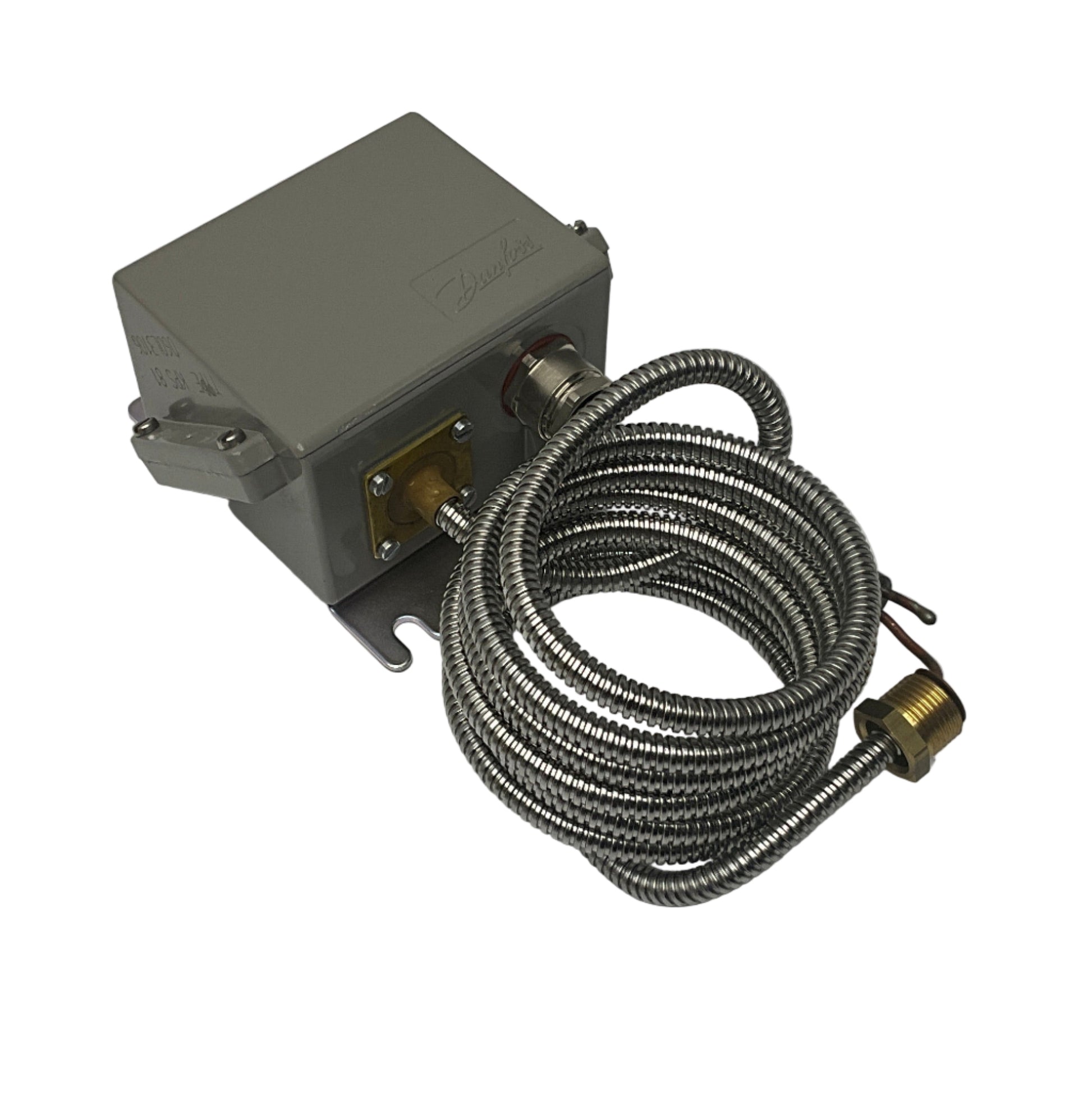

Danfoss KPS 81 Temperature Pressure Switch

Brand: Danfoss
Model: KPS 81
Type: Thermostat (Temperature Pressure Switch)
Part Number: 060L310666

Technical Specs:
- Function: Temperature-controlled switch with bulb sensor for alarm and regulation systems
- Temperature Range: -50°C to +150°C
- Differential: 5 °C to 25 °C
- Sensor Type: Bulb sensor
- Contact Configuration: SPDT
- Electrical Rating:
  - AC-1: 16 A at 250 V AC
  - AC-3: 10 A at 250 V AC
  - AC-15: 6 A at 250 V AC
  - DC-13: 0.2 A at 24 V DC
- Enclosure Rating: IP67
- Operating Temperature (Ambient): -40°C to 70°C
- Media Temperature: Up to 120°C with sensor pocket
- Sensor Pocket Material: Brass
- Bulb Material: Brass
- Capillary Length: 2 m
- Sensor Pocket Connection: G 1/2 A
- Vibration Resistance: 4 g
- Shock Resistance: 50 g
- Additional Features:
  - Robust, compact design resistant to shock and vibration
  - Self-supporting bulb sensor for easy installation
  - Gold-diffused silver contacts for reliable switching
  - Suitable for harsh environments, including marine applications
- Certifications: CE (EN 60947-1, EN 60947-5-1), UL (File E87037), CCC, ABS, DnV, GL, RINA, RMRS, NKK, CCS, BV, KR, LR (marine approvals)

Dimensions:
- Case Size: 107 x 56 x 58 mm
- Bulb Diameter: 6 mm
- Capillary Length: 2000 mm

Weight: 1.1 kg

Country of Origin: Poland

HS Code: 9032.10
