Cutler-Hammer

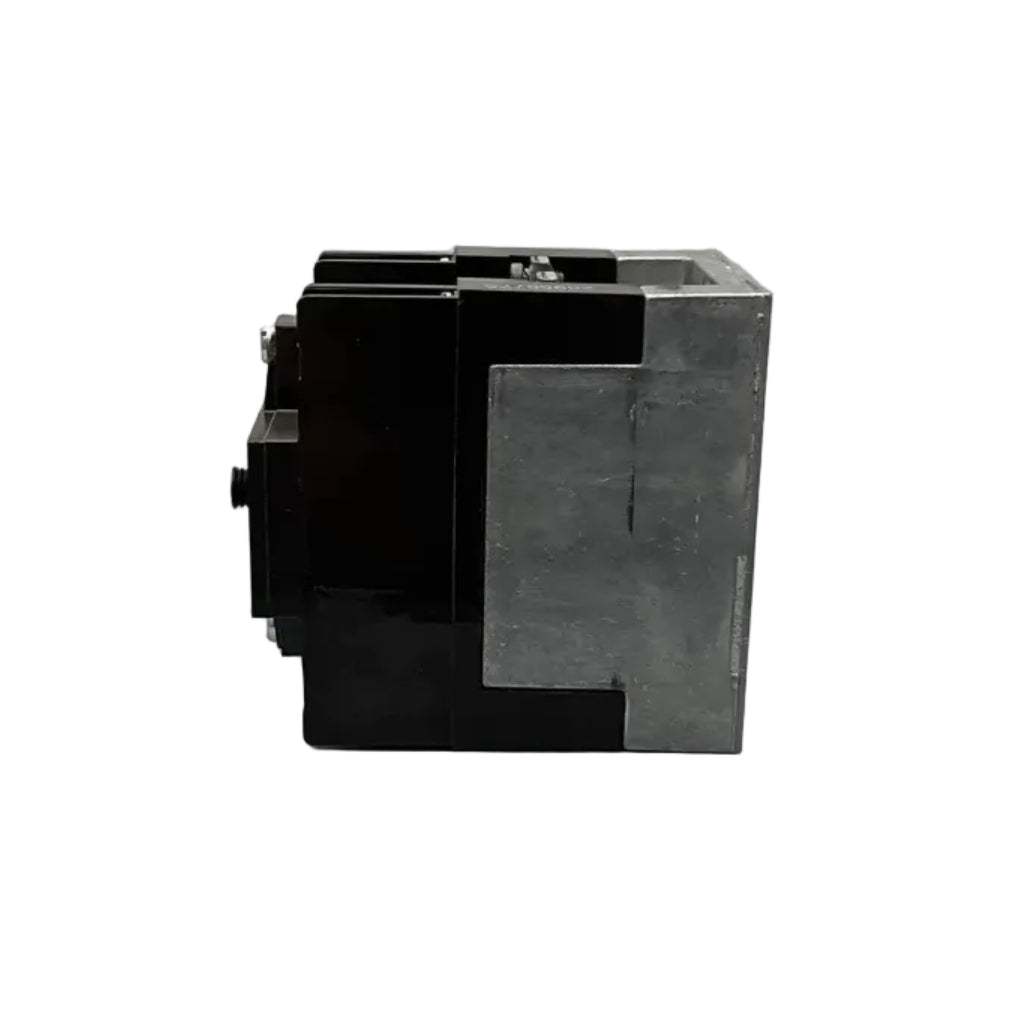

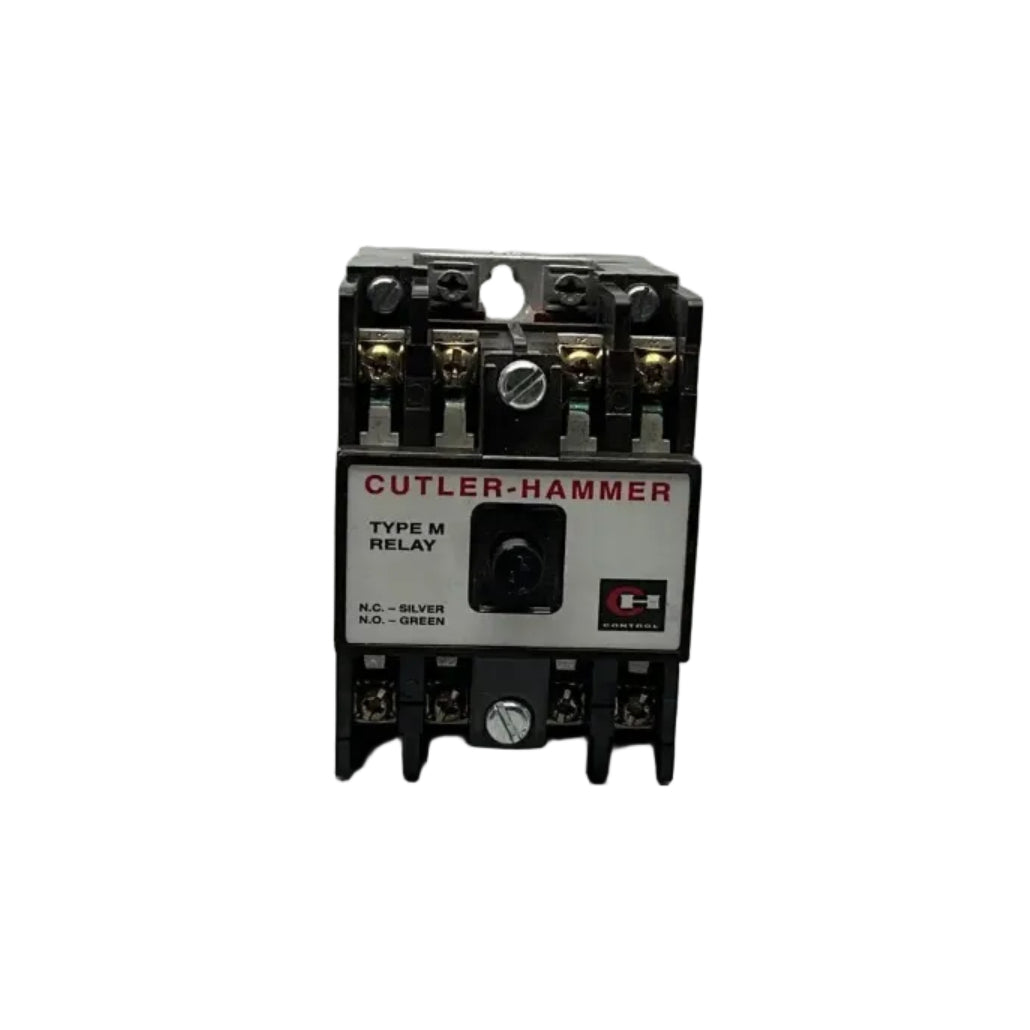

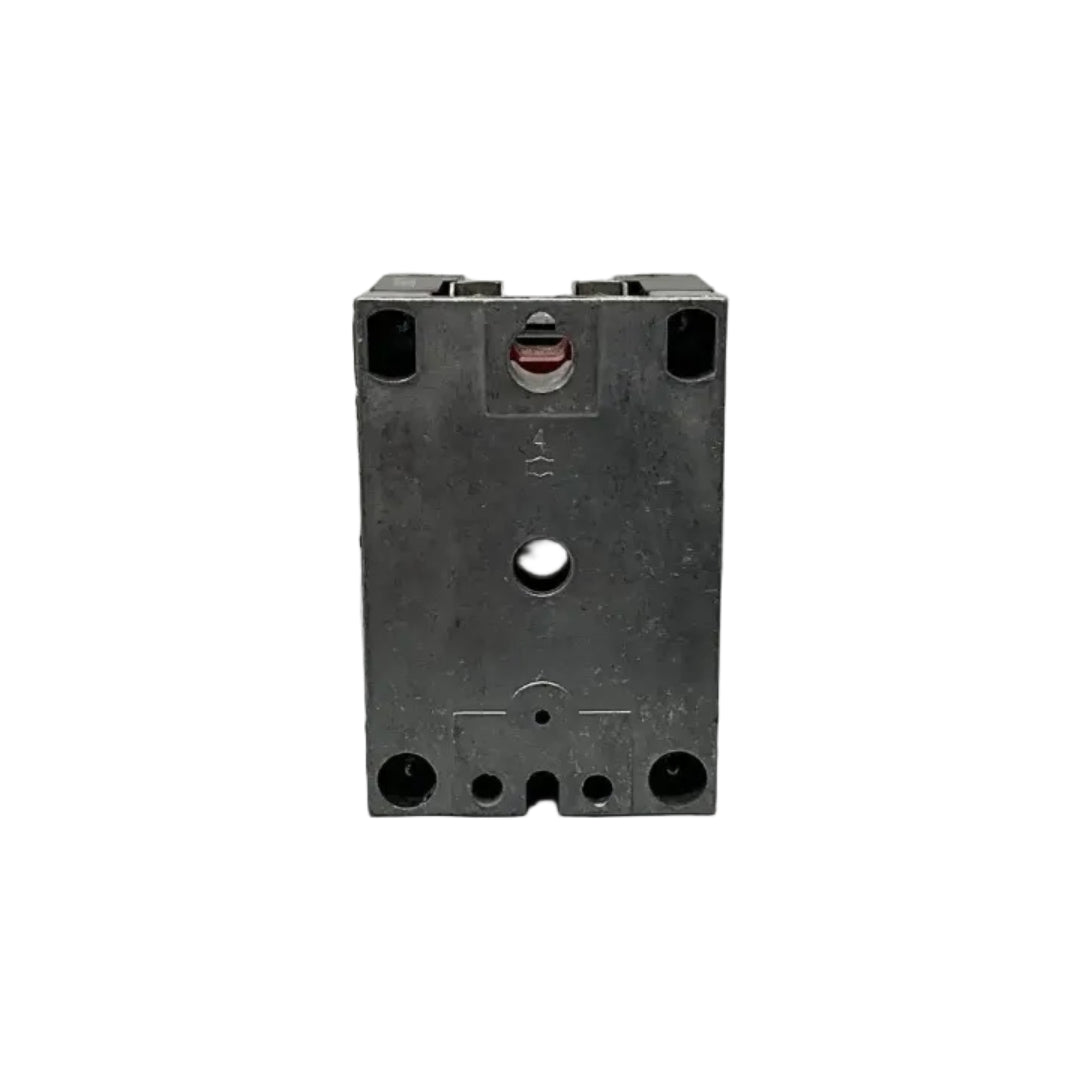

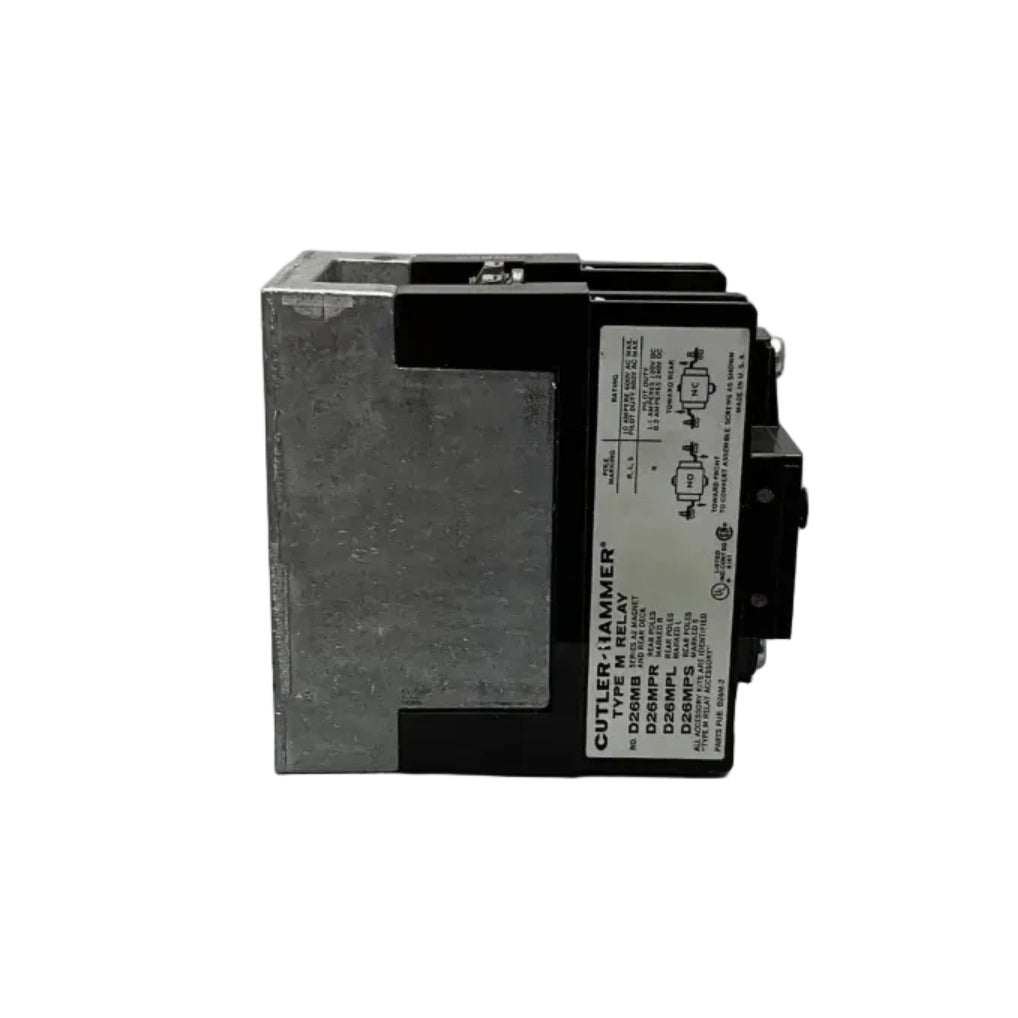

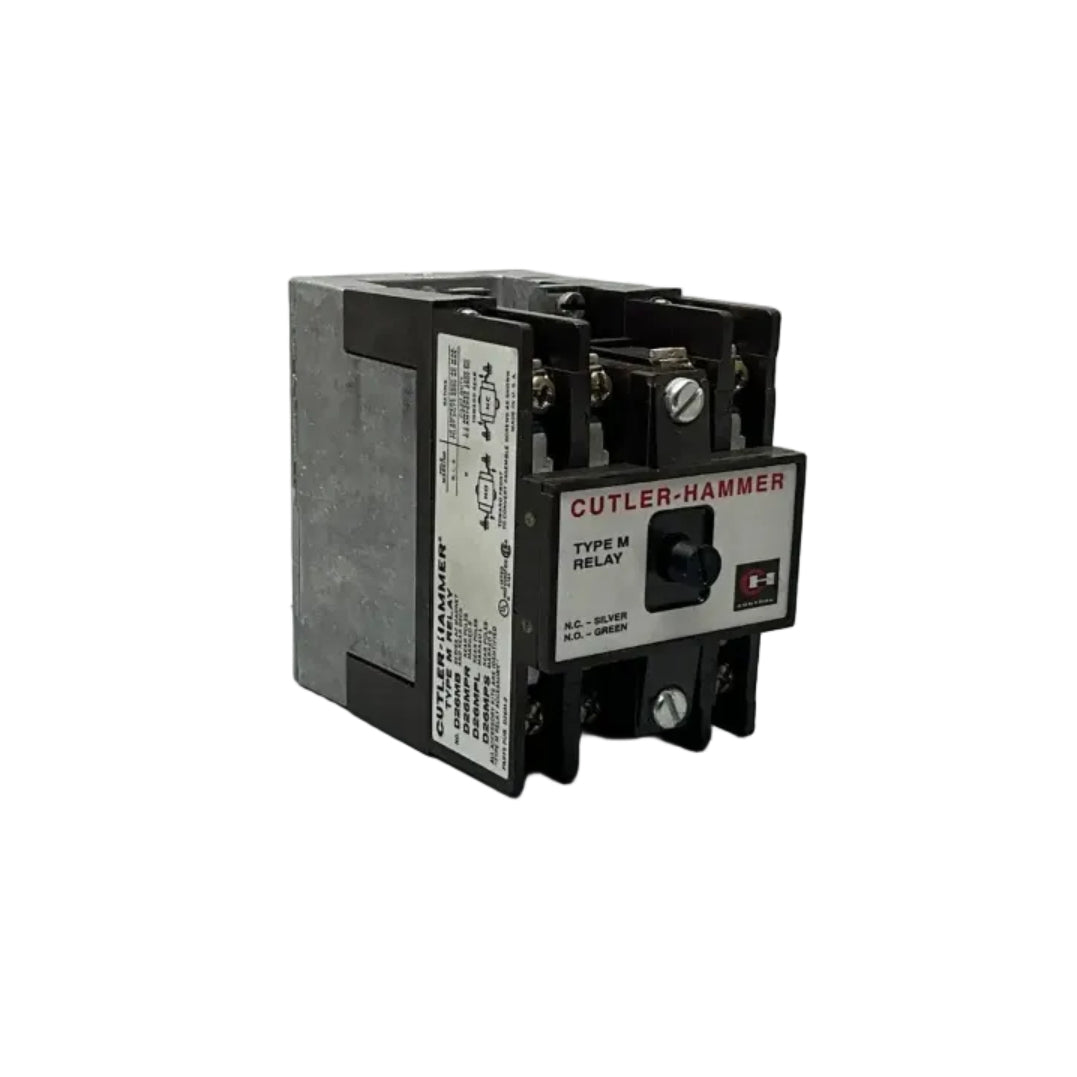

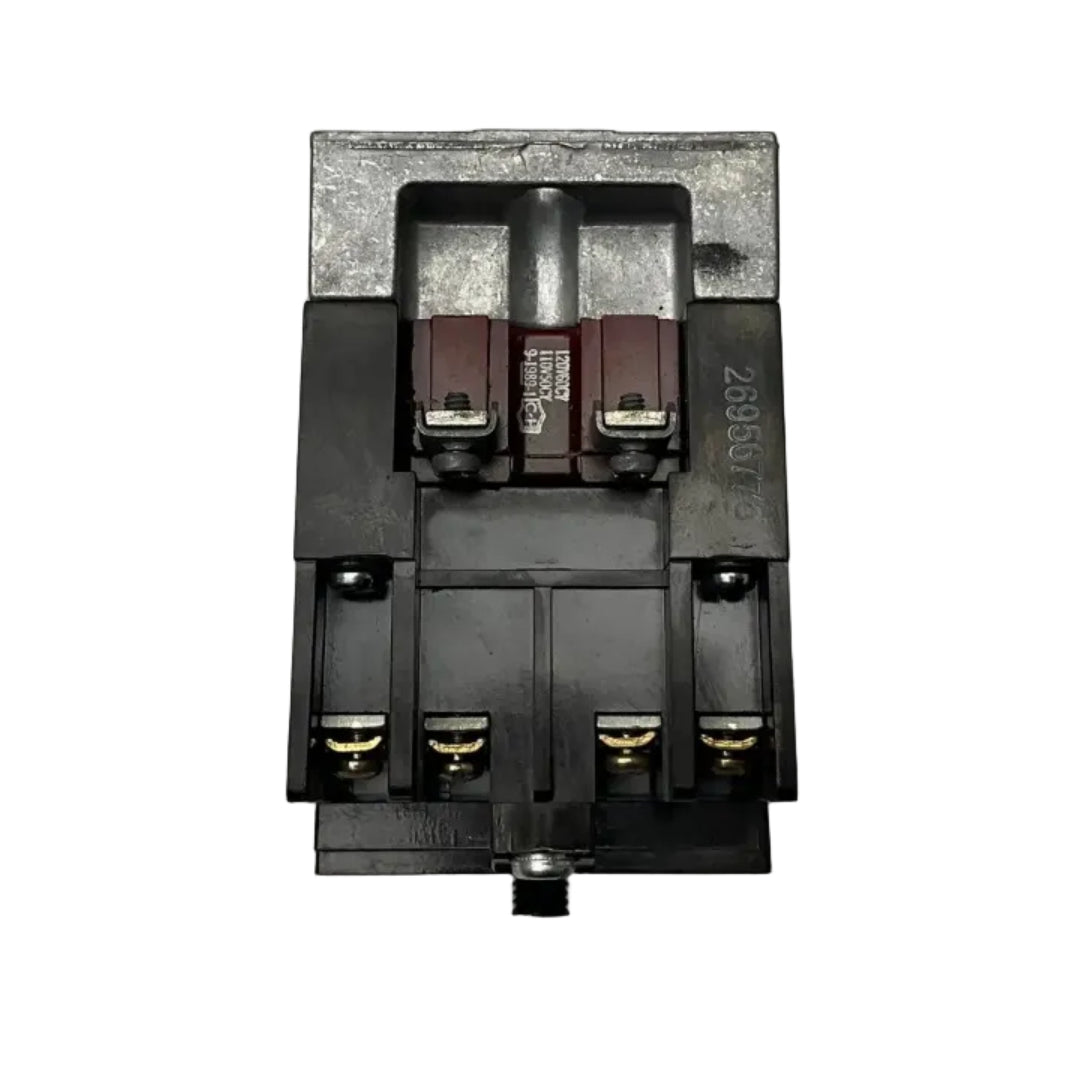

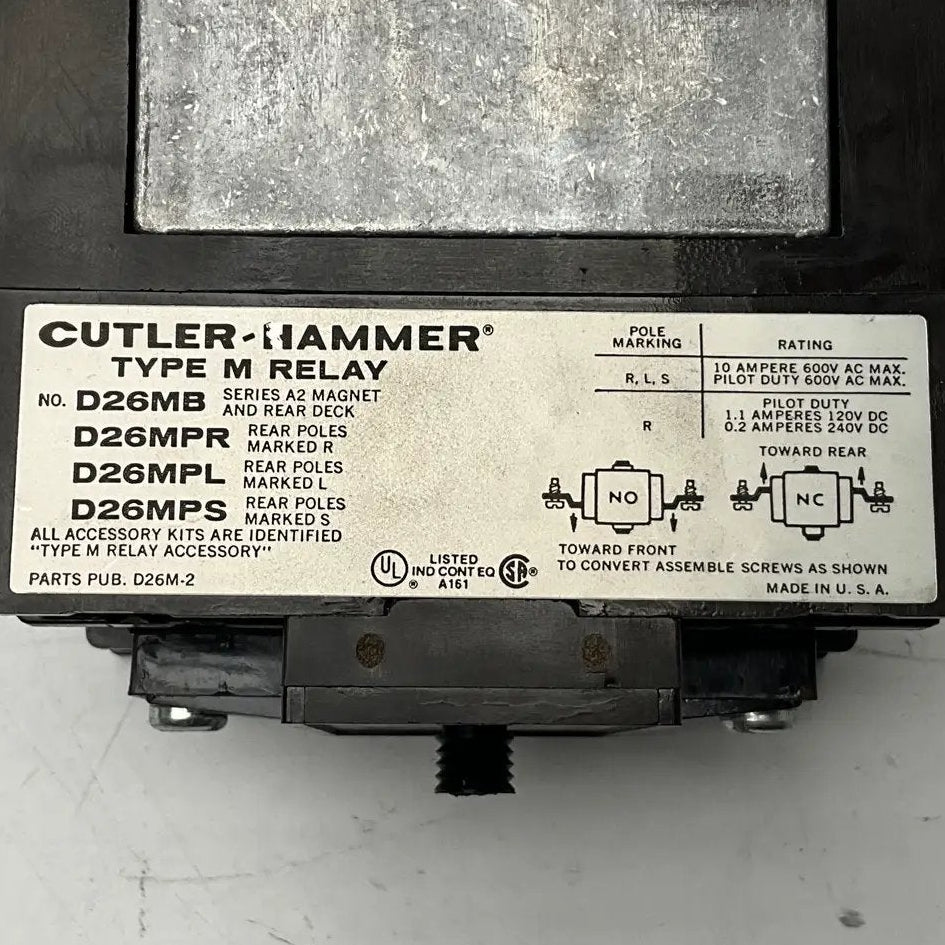

Cutler-Hammer Type M Industrial Control Relay

Cutler-Hammer Type M Industrial Control Relay

€102,85incl. VAT
€85,00 excl. VAT

Stoc: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandCutler-Hammer (Eaton)
ModelType M Multipole Relay
TypeIndustrial Control Relay / Machine Tool Relay
Part NumberD26MB
Technical Specs
Relay Frame SeriesType M D26 heavy-duty magnetic tracking family
Pole Configuration4-Pole base block
Contact Conversion FlexibilityFeatures convertible contact terminals; poles can be manually flipped from NC (Normally Closed) to NO (Normally Open) operations
Max Number of PolesUp to 4 additional deck poles can be added via front-mount attachment blocks, reaching a maximum configuration of 8 poles
Rated Operational Voltage (Ue)600 V AC maximum / 250 V DC maximum

Conventional Thermal Current (Ith): 10 A continuous rating

AC Making/Breaking Ratings (NEMA A600): Make: 60 A at 120 V AC, 30 A at 240 V AC / Break: 6 A at 120 V AC, 3 A at 240 V AC

Magnet Coil Operations110V/120V, 50/60Hz
Terminal TypeHeavy-duty pressure plate screw terminals optimized for industrial wiring lugs
Wire Capacity LimitsAWG 14 to AWG 12 (1.5 mm² to 4.0 mm²) solid or stranded conductors
Structural Design MatrixHeavy-gauge steel backplate armature framework with high dielectric phenolic contact carriers
Mechanical Durability IndexTested up to 10 million mechanical switching operations
Structural Mounting FormatSurface-panel screw mounting layout
Enclosure Protection ClassIP00
Weight900 g
Dimensions61 x 89 x 103 mm
Country of OriginUnited States
HS Code8536.49.05
